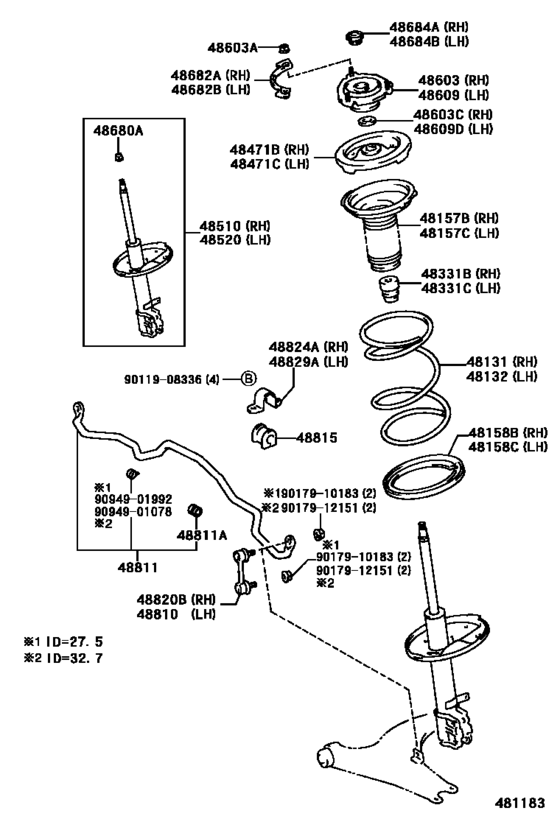

Front Spring & Shock Absorber ([04.1994 - ] (9404- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- RAV4
- From
- 09.1997
- To
- 08.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-42060 Spring, Front Coil, Rh[09.1997 - 06.1999] SXA11..ATM; SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42060 |
US $109.20 |
||
| replacement | |||||
|
48131
|
48131
48131-42061 Spring, Front Coil, RhFRONT COIL, RH [09.1997 - 06.1999] SXA11..ATM; SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42061 |
US $109.20 |
||
|
48131
|
48131
48131-42061 Spring, Front Coil, RhFRONT COIL, RH [06.1999 -] SXA11..ATM; SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42061 |
US $109.20 |
||
|
48131
|
48131
48131-42130 Spring, Front Coil, Rh[09.1997 - 06.1999] SXA11..ATM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42130 |
US $113.57 |
||
| replacement | |||||
|
48131
|
48131
48131-42131 Spring, Front Coil, Rh[09.1997 - 06.1999] SXA11..ATM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42131 |
US $113.57 |
||
|
48131
|
48131
48131-42131 Spring, Front Coil, Rh[06.1999 -] SXA11..ATM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42131 |
US $113.57 |
||
|
48131
|
48131
48131-42172
Spring, Front Coil, Rh
[08.1998 -] SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) W(235/60R16 TIRE) OR W(235/60R16 TIRE & MANUAL AIR CONDITIONER) |
48131-42172 |
— | ||
|
48131
|
48131
48131-42182 Spring, Front Coil, Rh[08.1998 -] SXA11..ATM..(EUR,GEN) W(235/60R16 TIRE & MANUAL AIR CONDITIONER) |
48131-42182 |
US $132.50 |
||
|
48132
|
48132
48131-42060 Spring, Front Coil, Rh[09.1997 - 06.1999] SXA11..ATM; SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42060 |
US $109.20 |
||
| replacement | |||||
|
48132
|
48132
48131-42061 Spring, Front Coil, RhFRONT COIL, RH [09.1997 - 06.1999] SXA11..ATM; SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42061 |
US $109.20 |
||
|
48132
|
48132
48131-42061 Spring, Front Coil, RhFRONT COIL, RH [06.1999 -] SXA11..ATM; SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42061 |
US $109.20 |
||
|
48132
|
48132
48131-42130 Spring, Front Coil, Rh[09.1997 - 06.1999] SXA11..ATM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42130 |
US $113.57 |
||
| replacement | |||||
|
48132
|
48132
48131-42131 Spring, Front Coil, Rh[09.1997 - 06.1999] SXA11..ATM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42131 |
US $113.57 |
||
|
48132
|
48132
48131-42131 Spring, Front Coil, Rh[06.1999 -] SXA11..ATM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
48131-42131 |
US $113.57 |
||
|
48132
|
48132
48131-42172
Spring, Front Coil, Rh
[08.1998 -] SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) W(235/60R16 TIRE) OR W(235/60R16 TIRE & MANUAL AIR CONDITIONER) |
48131-42172 |
— | ||
|
48132
|
48132
48131-42182 Spring, Front Coil, Rh[08.1998 -] SXA11..ATM..(EUR,GEN) W(235/60R16 TIRE & MANUAL AIR CONDITIONER) |
48131-42182 |
US $132.50 |
||
|
48157B
|
48157B
48157-42010 Insulator, Front Coil Spring, Upper Rh[04.1994 -] SXA1# |
48157-42010 |
from US $23.77 |
||
|
48157C
|
48157C
48157-42010 Insulator, Front Coil Spring, Upper Rh[04.1994 -] SXA1# |
48157-42010 |
from US $23.77 |
||
|
48158B
|
48158B
48158-32030 Insulator, Front Coil Spring, Lower[04.1994 -] SXA1# |
48158-32030 |
from US $21.45 |
||
|
48158C
|
48158C
48158-32030 Insulator, Front Coil Spring, Lower[04.1994 -] SXA1# |
48158-32030 |
from US $21.45 |
||
|
48331B
|
48331B
48331-42010 Bumper, Front Spring, Rh[04.1994 -] SXA1# |
48331-42010 |
from US $13.67 |
||
|
48331C
|
48331C
48331-42010 Bumper, Front Spring, Rh[04.1994 -] SXA1# |
48331-42010 |
from US $13.67 |
||
|
48471B
|
48471B
48044-32030 Seat, Front Spring, Upper[04.1994 -] SXA1# |
48044-32030 |
from US $23.61 |
||
|
48471C
|
48471C
48044-32030 Seat, Front Spring, Upper[04.1994 -] SXA1# |
48044-32030 |
from US $23.61 |
||
|
48510
|
48510
48510-49025
Absorber Assy, Shock, Front Rh
[04.1995 - 01.1998] SXA11 |
48510-49025 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-49017 Absorber Assy, Shock, Front Rh[04.1995 - 01.1998] SXA11 |
48510-49017 |
from US $321.30 |
||
|
48510
|
48510
48510-49026 Absorber Assy, Shock, Front Rh[01.1998 -] SXA11 |
48510-49026 |
US $371.28 |
||
| replacement | |||||
|
48510
|
48510
48510-49017 Absorber Assy, Shock, Front Rh[01.1998 -] SXA11 |
48510-49017 |
from US $321.30 |
||
|
48510
|
48510
48510-49066 Absorber Assy, Shock, Front Rh[08.1998 -] SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) W(235/60R16 TIRE) |
48510-49066 |
US $371.28 |
||
| replacement | |||||
|
48510
|
48510
48510-49067 Absorber Assy, Shock, Front Rh[08.1998 -] SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) W(235/60R16 TIRE) |
48510-49067 |
US $371.28 |
||
|
48520
|
48520
48520-49025
Absorber Assy, Shock, Front Lh
[04.1995 - 01.1998] SXA11 |
48520-49025 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-49027 Absorber Assy, Shock, Front Lh[04.1995 - 01.1998] SXA11 |
48520-49027 |
from US $294.59 |
||
|
48520
|
48520
48520-49026 Absorber Assy, Shock, Front Lh[01.1998 -] SXA11 |
48520-49026 |
US $371.28 |
||
| replacement | |||||
|
48520
|
48520
48520-49027 Absorber Assy, Shock, Front Lh[01.1998 -] SXA11 |
48520-49027 |
from US $294.59 |
||
|
48520
|
48520
48520-49066 Absorber Assy, Shock, Front Lh[08.1998 -] SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) W(235/60R16 TIRE) |
48520-49066 |
US $371.28 |
||
| replacement | |||||
|
48520
|
48520
48520-49067 Absorber Assy, Shock, Front Lh[08.1998 -] SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) W(235/60R16 TIRE) |
48520-49067 |
US $371.28 |
||
|
48603
|
48603
48609-42010 Support Sub-Assy, Front Suspension, Rh[04.1994 -] SXA1# |
48609-42010 |
from US $78.51 |
||
|
48603A
|
48603A
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting)[04.1994 -] SXA1# |
90179-10095 |
US $1.76 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[04.1994 -] SXA1# |
90303-22049 |
from US $3.53 |
||
|
48609
|
48609
48609-42010 Support Sub-Assy, Front Suspension, Rh[04.1994 -] SXA1# |
48609-42010 |
from US $78.51 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[04.1994 -] SXA1# |
90303-22049 |
from US $3.53 |
||
|
48680A
|
48680A
94184-61401 Nut(For Idler Arm Support)[04.1994 -] SXA1# |
94184-61401 |
US $2.72 |
||
|
48682A
|
48682A
48682-42010 Support, Front Suspension, No.2 Rh[04.1994 -] SXA1# |
48682-42010 |
US $9.17 |
||
|
48682B
|
48682B
48682-42010 Support, Front Suspension, No.2 Rh[04.1994 -] SXA1# |
48682-42010 |
US $9.17 |
||
|
48684A
|
48684A
48684-32010 Cover, Bearing Dust[04.1994 -] SXA1# |
48684-32010 |
from US $7.94 |
||
|
48684B
|
48684B
48684-32010 Cover, Bearing Dust[04.1994 -] SXA1# |
48684-32010 |
from US $7.94 |
||
|
48810
|
48810
48820-42010 Link Assy, Front Stabilizer, Lh[08.1996 - 08.1998] SXA11;SXA10..EUR W(235/60R16 TIRE);W(215/70R16 TIRE) |
48820-42010 |
from US $83.09 |
||
|
48811
|
48811
48811-42021 Bar, Stabilizer, Front[09.1997 - 08.2000] SXA11 |
48811-42021 |
US $174.72 |
||
|
48815
|
48815
48815-42020 Bush, Front Stabilizer Bar, No.1[04.1995 - 08.2000] SXA11 |
48815-42020 |
from US $7.23 |
||
|
48820B
|
48820B
48820-42010 Link Assy, Front Stabilizer, Lh[08.1996 - 08.1998] SXA11;SXA10..EUR W(235/60R16 TIRE);W(215/70R16 TIRE) |
48820-42010 |
from US $83.09 |
||
|
48824A
|
48824A
48824-30050 Cover, Front Stabilizer Bracket[04.1995 -] SXA11 |
48824-30050 |
from US $4.19 |
||
|
48829A
|
48829A
48824-30050 Cover, Front Stabilizer Bracket[08.1996 - 08.1998] SXA11;SXA10..EUR W(235/60R16 TIRE) |
48824-30050 |
from US $4.19 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.88 |
||
|
9017912151
|
9017912151
90179-12151 Nut(For Front Stabilizer Link) |
90179-12151 |
from US $0.96 |
||
|
9094901078
|
9094901078
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot) |
90949-01078 |
US $0.61 |
||
|
9094901992
|
9094901992
90949-01992
New Genuine Part
|
90949-01992 |
— | ||
