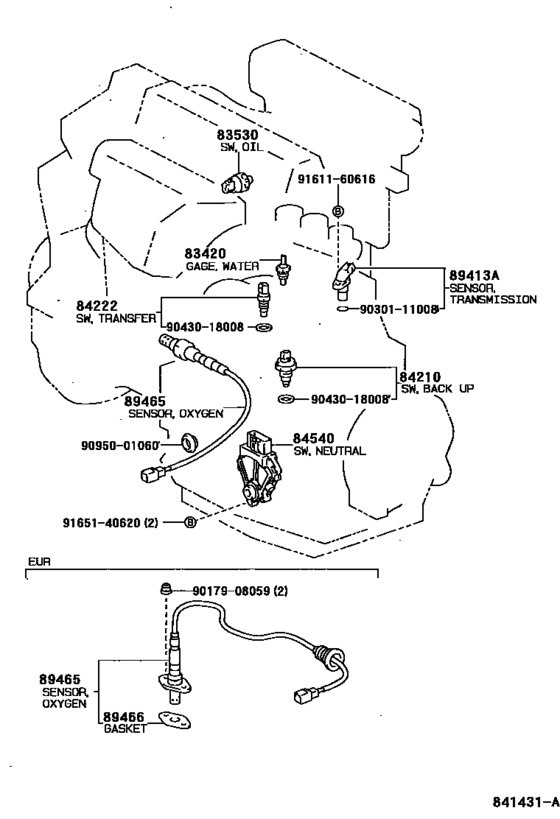

Switch & Relay & Computer ([04.1994 - ] ENGINE,TRANSMISSON,TRANSFER (9404- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- RAV4
- From
- 09.1997
- To
- 08.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[09.1997 -] SXA1# DENSO |
83420-20040 |
from US $37.91 |
||
|
83420
|
83420
83420-AA010 Gage Assy, Water Temperature Sender[09.1997 -] SXA1# AMERICAN YAZAKI |
83420-AA010 |
US $50.09 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] SXA1# DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] SXA1# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] SXA1# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[09.1997 - 03.1998] SXA1# |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.1997 - 03.1998] SXA1# |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] SXA1# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-20200 Switch Assy, Neutral Start[04.1994 -] SXA1#..ATM |
84540-20200 |
US $336.34 |
||
|
89413A
|
89413A
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[01.1996 -] SXA1#..ATM |
89413-32010 |
— | ||
| replacement | |||||
|
89413A
|
89413A
89413-32011 SENSOR, TRANSMISSION REVOLUTION[01.1996 -] SXA1#..ATM |
89413-32011 |
US $68.70 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.96 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
