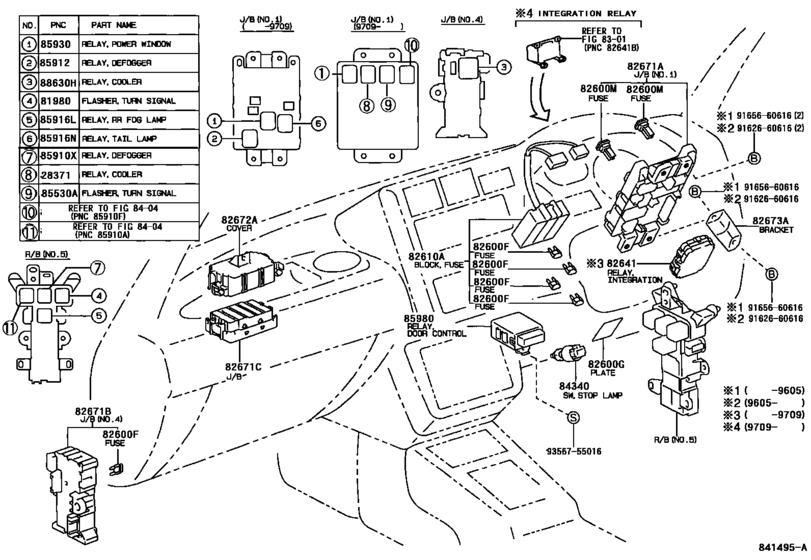

Switch & Relay & Computer ([04.1994 - ] COWL,INSTRUMENT PANEL RELAY (9404- )RHD) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- RAV4
- From
- 09.1997
- To
- 08.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02009 Relay Assy[09.1997 -] 3SFE..SXA1# |
90987-02009 |
from US $33.87 |
||
|
81980
|
81980
81980-12110
Flasher Assy, Turn Signal
[08.1997 -] SXA1# |
81980-12110 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1997 -] SXA1# |
81980-32010 |
from US $56.55 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[09.1997 - 08.2000] SXA1# 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[09.1997 - 08.2000] SXA1# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.1997 - 08.2000] SXA1# 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.1997 - 08.2000] SXA1# 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[09.1997 - 08.2000] SXA1# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600G
|
82600G
82683-42070 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [09.1997 -] SXA1# |
82683-42070 |
US $3.64 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[09.1997 - 08.2000] SXA1# 30A |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[09.1997 - 08.2000] SXA1# 40A |
90982-10002 |
US $4.48 |
||
|
82671A
|
82671A
82732-42060
Block, Junction
[09.1997 - 08.2000] SXA1# |
82732-42060 |
— | ||
|
82671C
|
82671C
82671-12150 Block, Junction[08.1996 - 08.2000] SXA10..CVT;SXA11..ATM..GEN;SXA1#..(EUR,GCC)..HT; SXA11..ARL;SXA11..MTM..GEN;SXA10..(ARL,GEN)..HT W(*80) |
82671-12150 |
US $61.59 |
||
|
82672A
|
82672A
82672-42010 Cover, Junction Block[08.1996 - 08.2000] SXA1#..ARL,GEN |
82672-42010 |
US $13.40 |
||
|
82672A
|
82672A
82672-42040 Cover, Junction Block[08.1996 - 08.2000] SXA1#..RHD W(*80) |
82672-42040 |
US $20.82 |
||
|
82673A
|
82673A
82673-42030 Bracket, Junction Block[09.1997 - 08.2000] SXA1#..RHD |
82673-42030 |
US $7.28 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[04.1994 -] SXA1# |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[04.1994 -] SXA1# |
84340-42010 |
from US $21.28 |
||
|
85530A
|
85530A
90987-02012 Relay, Ignition, No.1[09.1997 -] SXA1# |
90987-02012 |
from US $27.85 |
||
|
85916N
|
85916N
90987-02009 Relay Assy[04.1994 -] SXA1# |
90987-02009 |
from US $33.87 |
||
|
85930
|
85930
90987-02012 Relay, Ignition, No.1[09.1997 -] SXA1# |
90987-02012 |
from US $27.85 |
||
|
88630H
|
88630H
90987-04002 Relay, Ignition, No.1[04.1994 -] SXA1# |
90987-04002 |
from US $25.17 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165660616
|
9165660616
91656-60616
BOLT
|
91656-60616 |
— | ||
| replacement | |||||
|
9165660616
|
9165660616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
