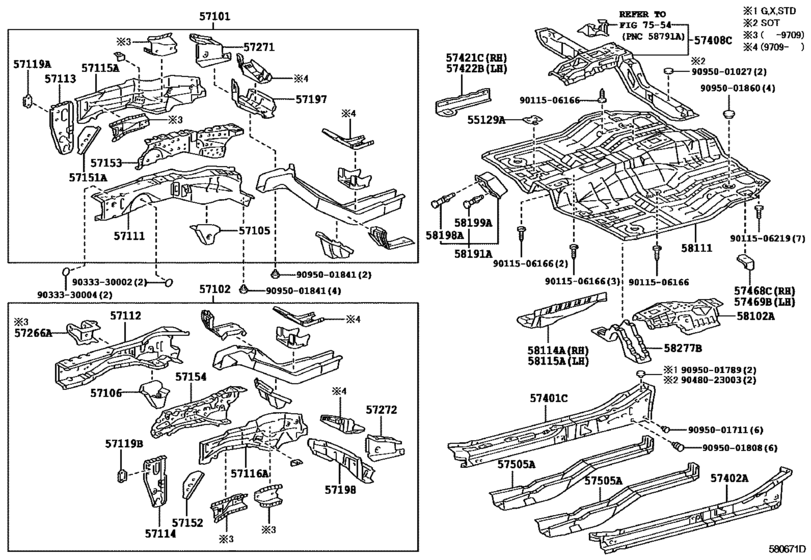

Front Floor Panel & Front Floor Member ([04.1994 - ] (9404- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- SXA11
- grade
- G
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- RAV4
- From
- 08.1996
- To
- 05.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129A
|
55129A
55129-12030 Cover, Dash Panel Hole[04.1994 -] SXA1# |
55129-12030 |
US $6.41 |
||
|
57101
|
57101
57101-42020 Member Sub-Assy, Front Side, Rh[08.1996 - 09.1997] SXA1# |
57101-42020 |
US $749.84 |
||
|
57101
|
57101
57101-42040 Member Sub-Assy, Front Side, Rh[09.1997 -] SXA1# |
57101-42040 |
US $959.50 |
||
|
57102
|
57102
57102-42020 Member Sub-Assy, Front Side, Lh[08.1996 - 09.1997] SXA1# |
57102-42020 |
US $749.84 |
||
|
57102
|
57102
57102-42040 Member Sub-Assy, Front Side, Lh[09.1997 -] SXA1# |
57102-42040 |
US $959.50 |
||
|
57105
|
57105
57105-42010
Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh
[04.1994 - 05.2000] SXA1# |
57105-42010 |
— | ||
|
57106
|
57106
57106-42011 Retainer Sub-Assy, Suspension Member, Inner[04.1994 - 05.2000] SXA1# |
57106-42011 |
US $61.88 |
||
|
57111
|
57111
57111-42010 Member, Front Side, Rh[04.1994 - 09.1997] SXA1# |
57111-42010 |
US $174.72 |
||
|
57111
|
57111
57111-42030 Member, Front Side, Rh[09.1997 -] SXA1# |
57111-42030 |
US $202.38 |
||
|
57112
|
57112
57112-42011 Member, Front Side, Lh[07.1995 - 09.1997] SXA1# |
57112-42011 |
US $174.72 |
||
|
57112
|
57112
57112-42030 Member, Front Side, Lh[09.1997 -] SXA1# |
57112-42030 |
US $202.38 |
||
|
57113
|
57113
57113-42010 Extension, Front Side Member, Rh[04.1994 - 09.1997] SXA1# |
57113-42010 |
US $52.85 |
||
|
57113
|
57113
57113-42020
Extension, Front Side Member, Rh
[09.1997 -] SXA1# |
57113-42020 |
— | ||
|
57114
|
57114
57114-42010 Extension, Front Side Member, Lh[04.1994 - 09.1997] SXA1# |
57114-42010 |
US $52.85 |
||
|
57114
|
57114
57114-42020 Extension, Front Side Member, Lh[09.1997 -] SXA1# |
57114-42020 |
US $14.71 |
||
|
57115A
|
57115A
57115-42011 Plate, Front Side Member, Outer Rh[05.1995 - 09.1997] SXA1# |
57115-42011 |
US $88.82 |
||
|
57115A
|
57115A
57115-42020 Plate, Front Side Member, Outer Rh[09.1997 -] SXA1# |
57115-42020 |
US $145.60 |
||
|
57116A
|
57116A
57116-42011 Plate, Front Side Member, Outer Lh[05.1995 - 09.1997] SXA1# |
57116-42011 |
US $88.82 |
||
|
57116A
|
57116A
57116-42020 Plate, Front Side Member, Outer Lh[09.1997 -] SXA1# |
57116-42020 |
US $145.60 |
||
|
57119A
|
57119A
57119-42010
Plate, Front Side Member, Front Rh
[04.1994 -] SXA1# |
57119-42010 |
— | ||
|
57119B
|
57119B
57119-42010
Plate, Front Side Member, Front Rh
[04.1994 -] SXA1# |
57119-42010 |
— | ||
|
57151A
|
57151A
57151-42010 Reinforcement, Front Side Member, No.1 Rh[04.1994 - 09.1997] SXA1# |
57151-42010 |
US $18.05 |
||
|
57151A
|
57151A
57151-42020
Reinforcement, Front Side Member, No.1 Rh
[09.1997 -] SXA1# |
57151-42020 |
— | ||
|
57152
|
57152
57152-42010 Reinforcement, Front Side Member, No.1 Lh[04.1994 - 09.1997] SXA1# |
57152-42010 |
US $18.05 |
||
|
57152
|
57152
57152-42020 Reinforcement, Front Side Member, No.1 Lh[09.1997 -] SXA1# |
57152-42020 |
US $18.05 |
||
|
57153
|
57153
57016-42010 Reinforcement, Front Side Member, No.2 Rh[04.1994 - 06.1997] SXA1# |
57016-42010 |
US $96.10 |
||
|
57153
|
57153
57016-42011 Reinforcement, Front Side Member, No.2 Rh[06.1997 - 09.1997] SXA1# |
57016-42011 |
US $96.10 |
||
|
57153
|
57153
57016-42030 Reinforcement, Front Side Member, No.2 Rh[09.1997 -] SXA1# |
57016-42030 |
US $138.32 |
||
|
57154
|
57154
57017-42010 Reinforcement, Front Side Member, No.2 Lh[09.1997 -] SXA1# |
57017-42010 |
US $136.86 |
||
|
57154
|
57154
57154-42010 Reinforcement, Front Side Member, No.2 Lh[04.1994 - 09.1997] SXA1# |
57154-42010 |
US $88.82 |
||
|
57197
|
57197
57197-42010 Box, Torque, Front Rh[04.1994 - 09.1997] SXA1# |
57197-42010 |
US $88.82 |
||
| replacements | |||||
|
57197
|
57197
57197-42030 Box, Torque, Front Rh[04.1994 - 09.1997] SXA1# |
57197-42030 |
US $88.82 |
||
|
57197
|
57197
90333-25001 Plug, Hole(For Hood)[04.1994 - 09.1997] SXA1# |
90333-25001 |
from US $1.41 |
||
|
57197
|
57197
57197-42030 Box, Torque, Front Rh[09.1997 -] SXA1# |
57197-42030 |
US $88.82 |
||
|
57198
|
57198
57198-42010 Box, Torque, Front Lh[04.1994 - 09.1997] SXA1# |
57198-42010 |
US $88.82 |
||
| replacements | |||||
|
57198
|
57198
57198-42030 Box, Torque, Front Lh[04.1994 - 09.1997] SXA1# |
57198-42030 |
US $88.82 |
||
|
57198
|
57198
90333-25001 Plug, Hole(For Hood)[04.1994 - 09.1997] SXA1# |
90333-25001 |
from US $1.41 |
||
|
57198
|
57198
57198-42030 Box, Torque, Front Lh[09.1997 -] SXA1# |
57198-42030 |
US $88.82 |
||
|
57266A
|
57266A
57266-42011 Bracket, Engine Mounting, Lh[06.1995 - 09.1997] SXA1# |
57266-42011 |
US $42.08 |
||
|
57271
|
57271
57271-42010 Extension, Steering Gear Box Support Member, Rh[04.1994 - 09.1997] SXA1# |
57271-42010 |
US $40.77 |
||
|
57271
|
57271
57271-42030
Extension, Steering Gear Box Support Member, Rh
[09.1997 -] SXA1# |
57271-42030 |
— | ||
|
57272
|
57272
57272-42010 Extension, Steering Gear Box Suport Member, Lh[04.1994 - 09.1997] SXA1# |
57272-42010 |
US $40.77 |
||
|
57272
|
57272
57272-42030 Extension, Steering Gear Box Suport Member, Lh[09.1997 -] SXA1# |
57272-42030 |
US $55.76 |
||
|
57401C
|
57401C
57401-42040 Member Sub-Assy, Floor Side, Inner Rh[08.1996 - 09.1997] SXA11 |
57401-42040 |
US $269.36 |
||
|
57401C
|
57401C
57401-42070 Member Sub-Assy, Floor Side, Inner Rh[09.1997 -] SXA11,16 |
57401-42070 |
US $263.54 |
||
|
57402A
|
57402A
57402-42040 Member Sub-Assy, Floor Side, Inner Lh[08.1996 - 09.1997] SXA11 |
57402-42040 |
US $269.36 |
||
|
57402A
|
57402A
57402-42070 Member Sub-Assy, Floor Side, Inner Lh[09.1997 -] SXA11,16 |
57402-42070 |
US $263.54 |
||
|
57408C
|
57408C
57408-42020 Member Sub-Assy, Front Floor Cross[08.1996 - 09.1997] SXA1# |
57408-42020 |
US $215.49 |
||
|
57408C
|
57408C
57408-42040 Member Sub-Assy, Front Floor Cross[09.1997 -] SXA1# |
57408-42040 |
US $216.94 |
||
|
57421C
|
57421C
57421-42010
Plate, Floor Side Rail, Rh
[09.1997 -] SXA1# |
57421-42010 |
— | ||
|
57422B
|
57422B
57422-42010 Plate, Floor Side Rail, Lh[09.1997 -] SXA1# |
57422-42010 |
US $18.78 |
||
|
57468C
|
57468C
57468-42010 Bracket, Front Seat, Outside, Rh[04.1994 - 09.1997] SXA1# |
57468-42010 |
US $17.18 |
||
|
57468C
|
57468C
57468-42030 Bracket, Front Seat, Outside, Rh[09.1997 -] SXA1# |
57468-42030 |
US $17.04 |
||
|
57469B
|
57469B
57469-42010 Bracket, Front Seat, Outside Lh[04.1994 - 09.1997] SXA1# |
57469-42010 |
US $17.18 |
||
|
57469B
|
57469B
57469-42030 Bracket, Front Seat, Outside Lh[09.1997 -] SXA1# |
57469-42030 |
US $17.04 |
||
|
57505A
|
57505A
57505-42023 Reinforcement Sub-Assy, Front Floor Under[08.1996 - 09.1997] SXA11 |
57505-42023 |
US $55.47 |
||
|
57505A
|
57505A
57505-42060 Reinforcement Sub-Assy, Front Floor Under[09.1997 -] SXA11,16 |
57505-42060 |
US $71.49 |
||
|
58102A
|
58102A
58102-42020 Reinforcement Sub-Assy, Front Floor[04.1995 -] SXA11,16 |
58102-42020 |
US $149.97 |
||
|
58111
|
58111
58111-42905 Pan, Front Floor[08.1996 - 09.1997] SXA1# |
58111-42905 |
US $503.78 |
||
| replacements | |||||
|
58111
|
58111
58111-42907 Pan, Front Floor[08.1996 - 09.1997] SXA1# |
58111-42907 |
US $505.23 |
||
|
58111
|
58111
58136-90D00 Cover, Front Floor Hole[08.1996 - 09.1997] SXA1# |
58136-90D00 |
US $8.30 |
||
|
58111
|
58111
58111-42907 Pan, Front Floor[09.1997 -] SXA1# |
58111-42907 |
US $505.23 |
||
|
58191A
|
58191A
58191-42010
Footrest, Front Floor, Rh
[04.1994 -] SXA1# |
58191-42010 |
— | ||
|
58198A
|
58198A
58198-42010
Clip, Footrest, No.1
[04.1994 -] SXA1# |
58198-42010 |
— | ||
|
58199A
|
58199A
58199-42010
Clip, Footrest, No.2
[04.1994 -] SXA1# |
58199-42010 |
— | ||
|
58277B
|
58277B
58209-42010 Reinforcement, Drive Shaft Center Support[04.1994 -] SXA1# |
58209-42010 |
US $63.34 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9048023003
|
9048023003
90480-23003 Grommet, Radiator Reserve Tank Hose |
90480-23003 |
US $2.48 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001711
|
9095001711
90950-01711 New Genuine Part |
90950-01711 |
US $1.60 |
||
|
9095001789
|
9095001789
90950-01789 PLUG HOLE |
90950-01789 |
from US $2.13 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.76 |
||
|
9095001860
|
9095001860
90950-01860
PLUG HOLE
|
90950-01860 |
— | ||
