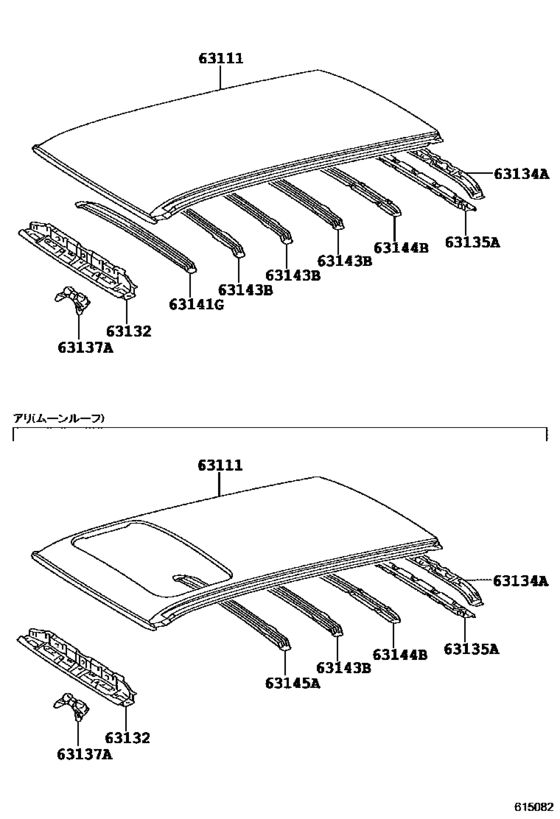

Roof Panel & Back Panel ([04.1995 - ] (9504- )SXA11,16) Diagram Toyota RAV4/VANGUARD
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- SXA11
- grade
- G
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- RAV4
- From
- 08.1996
- To
- 05.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63111
|
63111
63103-42900 Panel, Roof[04.1995 - 05.2000] SXA11..G,STD ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63103-42900 |
US $752.75 |
||
|
63111
|
63111
63111-42030 Panel, Roof[04.1995 - 05.2000] SXA11,16 |
63111-42030 |
US $586.77 |
||
|
63132
|
63132
63132-42020 Panel, Windshield Header, Inner[04.1995 -] SXA11,16 |
63132-42020 |
US $56.64 |
||
|
63134A
|
63134A
63134-42010 Frame, Back Door Opening, Upper[04.1994 -] SXA1#..G,STD,X |
63134-42010 |
US $56.64 |
||
|
63135A
|
63135A
63135-42010 Frame, Back Door Opening, Lower[04.1994 - 04.1997] SXA1# |
63135-42010 |
US $56.78 |
||
| replacement | |||||
|
63135A
|
63135A
63135-42011 Frame, Back Door Opening, Lower[04.1994 - 04.1997] SXA1# |
63135-42011 |
US $56.64 |
||
|
63135A
|
63135A
63135-42011 Frame, Back Door Opening, Lower[04.1997 -] SXA1#..G,STD,X |
63135-42011 |
US $56.64 |
||
|
63137A
|
63137A
63137-42010 Bracket, Dome Lamp, No.1[04.1994 -] SXA1#..G,STD,X |
63137-42010 |
US $23.59 |
||
|
63141G
|
63141G
63141-42020 Reinforcement, Roof Panel, No.1[04.1995 -] SXA11,16 |
63141-42020 |
US $31.01 |
||
|
63143B
|
63143B
63143-42020 Reinforcement, Roof Panel, No.3[04.1995 -] SXA11..G,STD ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63143-42020 |
US $31.01 |
||
|
63144B
|
63144B
63144-42010 Reinforcement, Roof Panel, No.4[04.1995 -] SXA11,16 |
63144-42010 |
US $49.07 |
||
|
63145A
|
63145A
63143-42030 Reinforcement, Roof Panel, No.5[04.1995 -] SXA11,16 |
63143-42030 |
US $48.19 |
||
