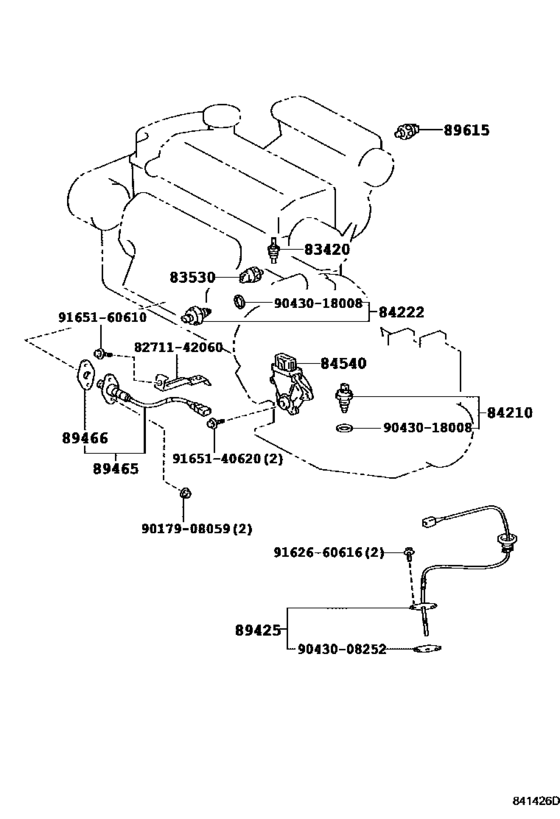

Switch & Relay & Computer ([08.1996 - ] ｴﾝｼﾞﾝ,ﾐﾂｼﾖﾝ,ﾄﾗﾝｽﾌｱ (9608- )G) Diagram Toyota RAV4/VANGUARD
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- SXA11
- grade
- G
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- RAV4
- From
- 08.1996
- To
- 05.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[04.1994 - 09.1997] SXA1# ＮＩＰＰＯＮＤＥＮＳＯ |
83420-16040 |
from US $32.68 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] SXA1# ＤＥＮＳＯ |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] SXA1# ＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] SXA1# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[04.1994 - 09.1997] SXA1# ＮＩＰＰＯＮＤＥＮＳＯ |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.1994 - 09.1997] SXA1# ＮＩＰＰＯＮＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] SXA1# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.1994 -] SXA1#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.1994 -] SXA1#..MTM |
84210-52050 |
from US $20.67 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[04.1994 -] SXA10,11..MTM |
84222-12010 |
from US $49.25 |
||
|
89425
|
89425
89425-49065 Sensor, Exhaust Gas Temperature[08.1996 - 09.1997] SXA1#..G |
89425-49065 |
US $294.11 |
||
|
89465
|
89465
89465-42050
Sensor, Oxygen
[08.1998 -] SXA10,11..G |
89465-42050 |
— | ||
|
89465
|
89465
89465-49055 Sensor, Oxygen[08.1996 - 08.1998] SXA10,11..G |
89465-49055 |
US $144.14 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.1996 - 08.1998] SXA10,11..G |
89466-20020 |
from US $13.42 |
||
|
89615
|
89615
89615-20060
Sensor, Knock Control
[08.1996 -] SXA10,11..G |
89615-20060 |
— | ||
|
8271142060
|
8271142060
82711-42060 Wire, Fuse To Fuse(for Combustion Heater) |
82711-42060 |
US $6.70 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
