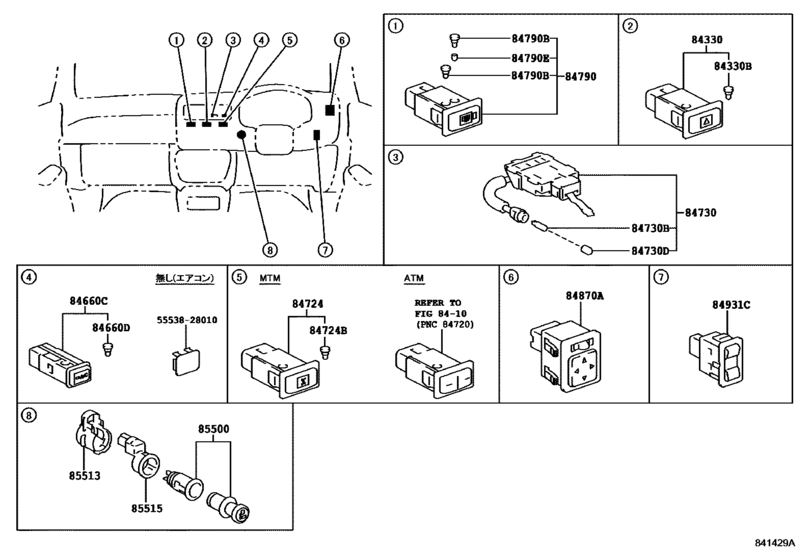

Switch & Relay & Computer ([04.1994 - ] ｲﾝﾊﾟﾈ ｽｲﾂﾁ (9404- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- SXA11
- grade
- G
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- RAV4
- From
- 08.1996
- To
- 05.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-42010 Switch Assy, Hazard Warning Signal[04.1994 - 09.1997] SXA1# |
84332-42010 |
from US $62.79 |
||
|
84330
|
84330
84332-43010 Switch Assy, Hazard Warning Signal[09.1997 -] SXA1# |
84332-43010 |
US $36.11 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[04.1994 - 09.1997] SXA1# １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $3.84 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[09.1997 -] SXA1# １４Ｖ ０．９１Ｗ |
84999-10860 |
from US $4.32 |
||
|
84660C
|
84660C
84660-42010 Switch, Cooler[04.1994 - 08.1998] SXA1# |
84660-42010 |
US $68.87 |
||
| replacement | |||||
|
84660C
|
84660C
84660-42011 Switch, Cooler[04.1994 - 08.1998] SXA1# |
84660-42011 |
US $68.87 |
||
|
84660C
|
84660C
84660-42011 Switch, Cooler[08.1998 -] SXA1# |
84660-42011 |
US $68.87 |
||
|
84660D
|
84660D
88607-16010 Bulb(For Cooler Switch)[04.1994 - 09.1997] SXA1# １４Ｖ ０．０６５Ａ |
88607-16010 |
from US $2.80 |
||
|
84724
|
84724
84724-42010 Switch, 4 Wheel Drive Control[04.1994 -] SXA10,11..MTM |
84724-42010 |
US $57.51 |
||
| replacement | |||||
|
84724
|
84724
84725-60040 Switch, Center Differential Lock[04.1994 -] SXA10,11..MTM |
84725-60040 |
from US $85.84 |
||
|
84724B
|
84724B
84999-10320 Bulb, Satellite Switch[04.1994 -] SXA10,11..MTM |
84999-10320 |
from US $3.84 |
||
|
84730
|
84730
84732-42010 Switch Assy, Heater Blower[11.1994 - 05.2000] SXA1# |
84732-42010 |
US $49.90 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[04.1994 -] SXA1# １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
84998-10050 Cap, Satellite Switch[04.1994 -] SXA1# |
84998-10050 |
US $2.08 |
||
|
84790
|
84790
84790-42010 Switch Assy, Rear Window Defogger[04.1994 - 09.1997] SXA1# |
84790-42010 |
US $64.65 |
||
| replacement | |||||
|
84790
|
84790
84790-20330 Switch Assy, Rear Window Defogger[04.1994 - 09.1997] SXA1# |
84790-20330 |
US $57.08 |
||
|
84790
|
84790
84790-42020
Switch Assy, Rear Window Defogger
[09.1997 -] SXA1#..G,STD,X |
84790-42020 |
— | ||
|
84790B
|
84790B
84999-10310 Bulb, Air Conditioner Control[09.1997 -] SXA1#..G,STD,X １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.96 |
||
|
84790B
|
84790B
84999-10320 Bulb, Satellite Switch[04.1994 - 09.1997] SXA1# １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $3.84 |
||
|
84790E
|
84790E
84998-10630
Cap, Bulb(For Rear Window Defogger Switch)
[04.1994 - 09.1997] SXA1# |
84998-10630 |
— | ||
|
84870A
|
84870A
84870-16020
Switch Assy, Outer Mirror
[09.1997 -] SXA1# |
84870-16020 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-22200 Switch Assy, Outer Mirror[09.1997 -] SXA1# |
84870-22200 |
US $86.31 |
||
|
84870A
|
84870A
84870-16040 Switch Assy, Outer Mirror[09.1997 -] SXA1# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
84870-16040 |
US $105.08 |
||
|
84870A
|
84870A
84870-20050 Switch Assy, Outer Mirror[04.1994 - 09.1997] SXA1# |
84870-20050 |
US $93.24 |
||
| replacement | |||||
|
84870A
|
84870A
84870-20050-C0 Switch Assy, Outer Mirror[04.1994 - 09.1997] SXA1# |
84870-20050-C0 |
US $93.24 |
||
|
85500
|
85500
85500-28050 Lighter Assy, Cigarette[04.1994 -] SXA1# |
85500-28050 |
from US $29.11 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[04.1994 -] SXA1# |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-30030 Stay, Cigarette Lighter Bezel[04.1994 -] SXA1# |
85515-30030 |
US $13.85 |
||
|
5553828010
|
5553828010
55538-28010 Cover, Cooler Switch Hole |
55538-28010 |
US $2.91 |
||
