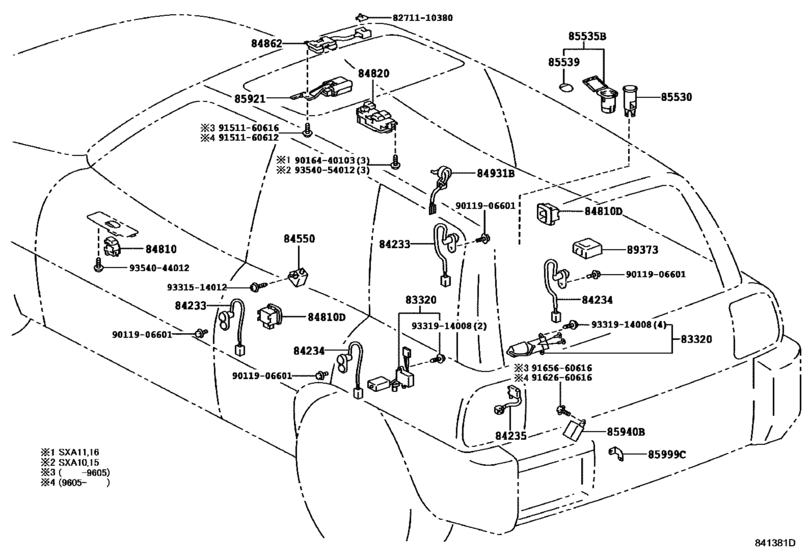

Switch & Relay & Computer ([04.1994 - ] ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱ ｽｲﾂﾁ (9404- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1996 - 2000
- Sales region
- Japan
- Frame
- SXA11
- grade
- G
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- RAV4
- From
- 08.1996
- To
- 05.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-49045 Gage Assy, Fuel Sender[04.1994 - 01.1999] SXA1# ﾌﾕ-ｴﾙ ﾎﾟﾝﾌﾟASSY |
83320-49045 |
US $106.29 |
||
| replacement | |||||
|
83320
|
83320
83320-49055
Gage Assy, Fuel Sender
[04.1994 - 01.1999] SXA1# ﾌﾕ-ｴﾙ ﾎﾟﾝﾌﾟASSY |
83320-49055 |
— | ||
|
83320
|
83320
83320-49065
Gage Assy, Fuel Sender
[04.1994 - 01.1999] SXA1# ﾌﾕ-ｴﾙ ﾍﾞﾝﾄ ﾁﾕｰﾌﾞ |
83320-49065 |
— | ||
|
83320
|
83320
83320-49135 Gage Assy, Fuel Sender[02.1999 -] SXA1# ﾌﾕ-ｴﾙ ﾎﾟﾝﾌﾟASSY |
83320-49135 |
US $106.29 |
||
|
83320
|
83320
83320-49155
Gage Assy, Fuel Sender
[02.1999 -] SXA1# ﾌﾕ-ｴﾙ ﾍﾞﾝﾄ ﾁﾕｰﾌﾞ |
83320-49155 |
— | ||
|
84233
|
84233
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[04.1994 -] SXA1# |
84231-32040 |
from US $14.24 |
||
|
84234
|
84234
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[04.1995 -] SXA11,16 |
84231-32040 |
from US $14.24 |
||
|
84235
|
84235
84231-42010 Switch Assy, Courtesy Lamp(For Back Door)[04.1994 -] SXA1# |
84231-42010 |
US $14.41 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[04.1994 -] SXA1# |
84550-16060 |
from US $17.48 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[04.1994 -] SXA1# |
84810-12080 |
from US $31.35 |
||
|
84810D
|
84810D
84810-10020-B0 Switch Assy, Power Window Regulator[04.1995 - 09.1997] SXA11 BLUISH GRAY,TRIM1# |
84810-10020-B0 |
US $50.96 |
||
| replacement | |||||
|
84810D
|
84810D
84810-10020-B7 Switch Assy, Power Window Regulator, Rear[04.1995 - 09.1997] SXA11 BLUISH GRAY,TRIM1# |
84810-10020-B7 |
US $47.88 |
||
|
84810D
|
84810D
84810-10020-P0 Switch Assy, Power Window Regulator[09.1997 - 05.2000] SXA11..WIB GRAY,TRIM1# |
84810-10020-P0 |
US $50.96 |
||
| replacement | |||||
|
84810D
|
84810D
84810-10020-B7 Switch Assy, Power Window Regulator, Rear[09.1997 - 05.2000] SXA11..WIB GRAY,TRIM1# |
84810-10020-B7 |
US $47.88 |
||
|
84820
|
84820
84820-10040 Master Switch Assy, Power Window Regulator[04.1995 - 09.1997] SXA11 |
84820-10040 |
US $285.12 |
||
|
84820
|
84820
84820-42040
Master Switch Assy, Power Window Regulator
[09.1997 -] SXA11,16 |
84820-42040 |
— | ||
|
84862
|
84862
84862-20050-B1 Switch, Slide Roof Motor[04.1995 - 09.1997] SXA11 BLUISH GRAY,TRIM1# |
84862-20050-B1 |
US $68.87 |
||
|
84862
|
84862
84862-20050-B2 Switch, Slide Roof Motor[09.1997 - 10.1997] SXA10,15;SXA11..G LT.GRAY,TRIM1# |
84862-20050-B2 |
US $68.87 |
||
| replacement | |||||
|
84862
|
84862
84862-20050-B1 Switch, Slide Roof Motor[09.1997 - 10.1997] SXA10,15;SXA11..G LT.GRAY,TRIM1# |
84862-20050-B1 |
US $68.87 |
||
|
84931B
|
84931B
84931-10081 Switch, Door Control[08.1995 -] SXA11,16 |
84931-10081 |
US $48.63 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[09.1997 -] SXA11,16 |
85530-33020 |
from US $16.05 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[09.1997 -] SXA11,16 |
85530-06010 |
from US $26.06 |
||
|
85535B
|
85535B
85535-33010 Cover, Power Outlet Socket, No.1[09.1997 -] SXA11,16 |
85535-33010 |
US $11.50 |
||
| replacement | |||||
|
85535B
|
85535B
85535-33030 Cover, Power Outlet Socket, No.1[09.1997 -] SXA11,16 |
85535-33030 |
US $11.50 |
||
|
85539
|
85539
85539-60010 Label, Power Outlet Notice[09.1997 -] SXA11,16 |
85539-60010 |
US $1.14 |
||
|
85921
|
85921
85921-42010 Relay, Sliding Roof Control[04.1995 -] SXA11,16 |
85921-42010 |
US $368.37 |
||
|
85940B
|
85940B
85940-42010 Relay Assy, Rear Wiper[04.1994 - 09.1997] SXA1# |
85940-42010 |
US $171.81 |
||
| replacement | |||||
|
85940B
|
85940B
85940-28040 Relay Assy, Rear Wiper[04.1994 - 09.1997] SXA1# |
85940-28040 |
US $151.42 |
||
|
85999C
|
85999C
85999-42030 Bracket, Relay, No.3[04.1994 - 09.1997] SXA1# |
85999-42030 |
US $4.95 |
||
|
8271110380
|
8271110380
82711-10380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-10380 |
US $1.60 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165660616
|
9165660616
91656-60616
BOLT
|
91656-60616 |
— | ||
| replacement | |||||
|
9165660616
|
9165660616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9354044012
|
9354044012
93540-44012 Screw, Front Body Pillar Garnish |
93540-44012 |
US $1.46 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
