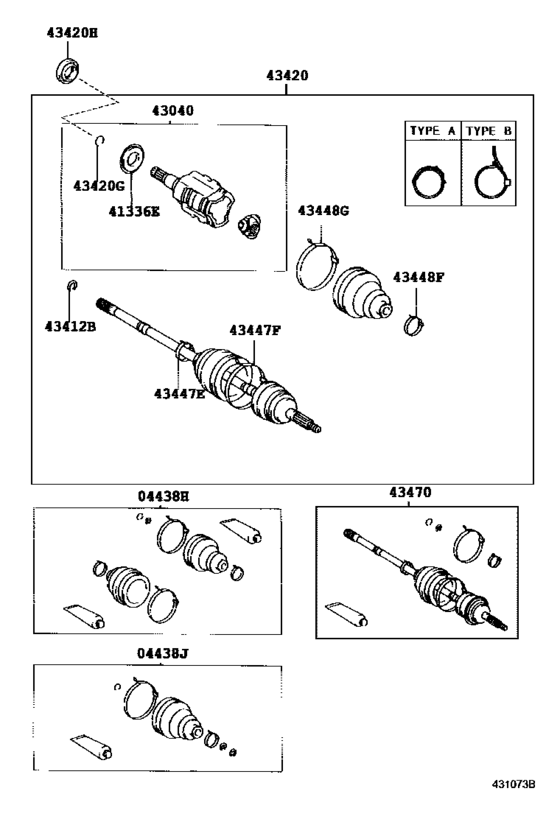

Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-42080
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[03.2005 -] ZCA2# |
04428-42080 |
— | ||
|
04438H
|
04438H
04438-42100 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2000 - 07.2002] ZCA2# |
04438-42100 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-42102 Front Drive Shaft Boot Kit, In and Outboard[05.2000 - 07.2002] ZCA2# |
04438-42102 |
US $145.60 |
||
|
04438H
|
04438H
04438-42102 Front Drive Shaft Boot Kit, In and Outboard[07.2002 - 07.2003] ZCA2# |
04438-42102 |
US $145.60 |
||
|
04438J
|
04438J
04438-42090 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2000 - 07.2002] ZCA2# |
04438-42090 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2000 - 07.2002] ZCA2# |
04438-42190 |
US $74.26 |
||
|
04438J
|
04438J
04438-42091 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.2002 - 07.2003] ZCA2# |
04438-42091 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.2002 - 07.2003] ZCA2# |
04438-42190 |
US $74.26 |
||
|
04438J
|
04438J
04438-42190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[03.2005 -] ZCA2# |
04438-42190 |
US $74.26 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[05.2000 - 07.2003] ZCA2# |
41336-32020 |
US $4.02 |
||
|
43040
|
43040
43040-42030 Joint Assy, Front Drive Inboard, Lh[05.2000 - 07.2002] ZCA2# |
43040-42030 |
US $336.34 |
||
| replacement | |||||
|
43040
|
43040
43040-42031 Joint Assy, Front Drive Inboard, Lh[05.2000 - 07.2002] ZCA2# |
43040-42031 |
US $313.11 |
||
|
43040
|
43040
43040-42031 Joint Assy, Front Drive Inboard, Lh[08.2002 - 07.2003] ZCA2# |
43040-42031 |
US $313.11 |
||
|
43412B
|
43412B
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
43425-28010 |
US $0.72 |
||
|
43420
|
43420
43420-42100
Shaft Assy, Front Drive, Lh
[05.2000 - 07.2003] ZCA2# W(ABS) |
43420-42100 |
— | ||
|
43420
|
43420
43420-42110 Shaft Assy, Front Drive, LhFRONT DRIVE, LH [05.2000 - 07.2003] ZCA2# |
43420-42110 |
US $960.96 |
||
| replacement | |||||
|
43420
|
43420
43420-42100
Shaft Assy, Front Drive, Lh
[05.2000 - 07.2003] ZCA2# |
43420-42100 |
— | ||
|
43420G
|
43420G
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[05.2000 - 07.2003] ZCA2# |
90521-27005 |
from US $1.66 |
||
|
43420H
|
43420H
90311-35044
Oil Seal, Rear Drive Shaft, Lh
[05.2000 - 07.2003] ZCA2# |
90311-35044 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35064 Oil Seal, Rear Drive Shaft, Lh[05.2000 - 07.2003] ZCA2# |
90311-35064 |
from US $7.06 |
||
|
43420H
|
43420H
90311-35058
Oil Seal, Rear Drive Shaft, Lh
[09.2005 - 11.2005] ZCA2# |
90311-35058 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35064 Oil Seal, Rear Drive Shaft, Lh[09.2005 - 11.2005] ZCA2# |
90311-35064 |
from US $7.06 |
||
|
43447E
|
43447E
42345-20040 Clamp (For Front Axle Outboard Joint Boot Rh)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
42345-20040 |
US $4.22 |
||
| replacement | |||||
|
43447E
|
43447E
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
42345-42100 |
US $3.94 |
||
|
43447F
|
43447F
42345-28020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
42345-28020 |
US $6.84 |
||
| replacement | |||||
|
43447F
|
43447F
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
42345-42090 |
from US $5.40 |
||
|
43448F
|
43448F
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [04.2002 - 07.2003] ACA2#,CLA2#,ZCA2# TYPE A:REFER TO ILLUSTRATION |
42345-42010 |
from US $1.60 |
||
|
43448F
|
43448F
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[05.2000 - 04.2002] ACA2#,CLA2#,ZCA2# |
90949-01559 |
US $5.73 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [03.2002 - 07.2003] ACA2#,CLA2#,ZCA2# |
42345-12160 |
from US $4.45 |
||
|
43448G
|
43448G
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[05.2000 - 03.2002] ACA2#,CLA2#,ZCA2# |
90949-01076 |
— | ||
| replacement | |||||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [05.2000 - 03.2002] ACA2#,CLA2#,ZCA2# |
42345-12160 |
from US $4.45 |
||
|
43470
|
43470
43470-49145 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [05.2000 - 07.2002] ZCA2# W(ABS) |
43470-49145 |
US $697.42 |
||
| replacement | |||||
|
43470
|
43470
43470-49146 Shaft Assy, Front Drive Outboard Joint, Rh[05.2000 - 07.2002] ZCA2# W(ABS) |
43470-49146 |
US $698.88 |
||
|
43470
|
43470
43470-49146 Shaft Assy, Front Drive Outboard Joint, Rh[07.2002 - 07.2003] ZCA2# W(ABS) |
43470-49146 |
US $698.88 |
||
|
43470
|
43470
43470-49175 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [05.2000 - 07.2002] ZCA2# |
43470-49175 |
US $697.42 |
||
| replacement | |||||
|
43470
|
43470
43470-49146 Shaft Assy, Front Drive Outboard Joint, Rh[05.2000 - 07.2002] ZCA2# |
43470-49146 |
US $698.88 |
||
|
43470
|
43470
43470-49176 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, LH [07.2002 - 07.2003] ZCA2# |
43470-49176 |
US $697.42 |
||
| replacement | |||||
|
43470
|
43470
43470-49146 Shaft Assy, Front Drive Outboard Joint, Rh[07.2002 - 07.2003] ZCA2# |
43470-49146 |
US $698.88 |
||
|
43470
|
43470
43470-80081 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [03.2005 -] ZCA2# |
43470-80081 |
US $646.46 |
||
