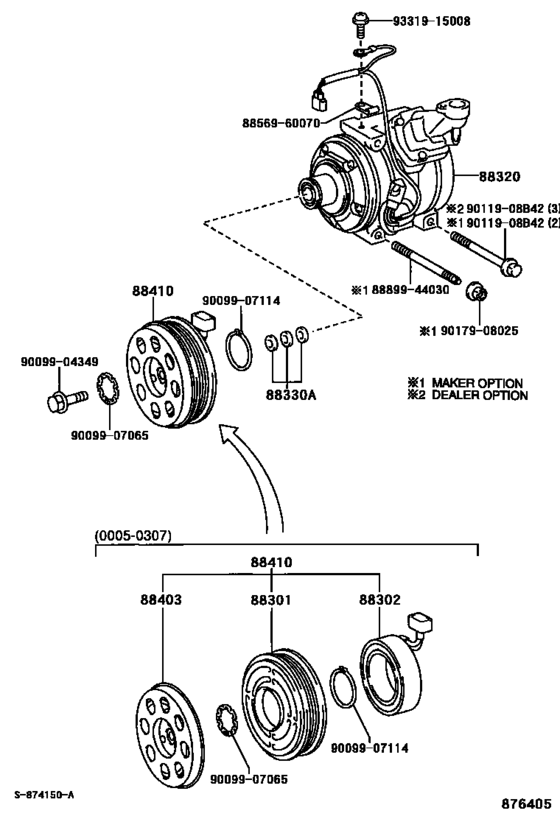

Heating & Air Conditioning - Compressor ([05.2000 - ] (0005- )ZCA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-32120
Rotor Sub-Assy, Magnet Clutch
[05.2000 - 07.2003] ZCA2# |
88412-32120 |
— | ||
|
88302
|
88302
88411-44010 Stator Sub-Assy, Magnet Clutch[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
88411-44010 |
US $61.68 |
||
|
88320
|
88320
88320-42100
Compressor Assy, Cooler
[05.2000 - 07.2003] ZCA2# |
88320-42100 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
88335-14020 |
from US $1.24 |
||
|
88403
|
88403
88403-28020
Hub Sub-Assy, Magnet Clutch
[05.2000 - 07.2003] ZCA2# |
88403-28020 |
— | ||
|
88410
|
88410
88410-42050
Clutch Assy, Magnet
[05.2000 - 07.2003] ZCA2# |
88410-42050 |
— | ||
|
88410
|
88410
88410-42070 Clutch Assy, Magnet[07.2003 - 11.2005] ZCA2# |
88410-42070 |
US $583.86 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.15 |
||
|
8856960070
|
8856960070
88569-60070
Bracket, Cooler Compressor
|
88569-60070 |
— | ||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
