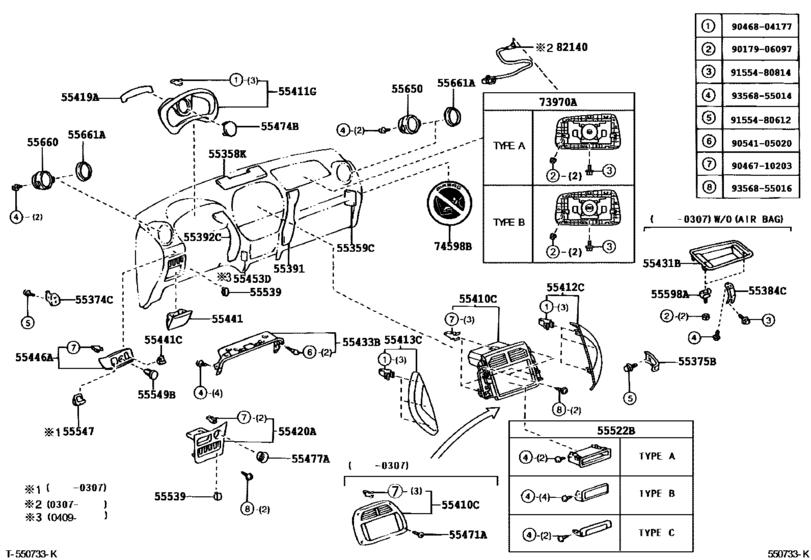

Instrument Panel & Glove Compartment ([05.2000 - ] (0005- )LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55358K
|
55358K
55358-42020 Cushion, Instrument Panel, No.4[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55358-42020 |
US $12.52 |
||
|
55359C
|
55359C
55359-42010 Coshion, Instrument Panel, No.5[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55359-42010 |
US $4.95 |
||
|
55374C
|
55374C
55374-42040 Bracket, Instrument Panel Lower Mounting, No.1INSTRUMENT PANEL LOWER MOUNTING, NO.1 [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD |
55374-42040 |
US $5.97 |
||
|
55375B
|
55375B
55375-42040 Bracket, Instrument Panel Lower Mounting, No.2INSTRUMENT PANEL LOWER MOUNTING, NO.2 [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD |
55375-42040 |
US $11.07 |
||
|
55391
|
55391
55391-42010 Cushion, Instrument Panel, Lower No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55391-42010 |
US $4.95 |
||
|
55392C
|
55392C
55392-42010 Cushion, Instrument Panel, Lower No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55392-42010 |
US $4.95 |
||
|
55410C
|
55410C
55410-42090
Panel Assy, Instrument Cluster Finish
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR |
55410-42090 |
— | ||
|
55410C
|
55410C
55410-42110
Panel Assy, Instrument Cluster Finish
[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR |
55410-42110 |
— | ||
|
55411G
|
55411G
55411-42030 Panel, Instrument Cluster Finish, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55411-42030 |
US $71.78 |
||
|
55411G
|
55411G
55411-42040 Panel, Instrument Cluster Finish, No.1[07.2003 -] ACA2#,CLA2#,ZCA2# |
55411-42040 |
US $72.07 |
||
|
55412C
|
55412C
55412-42050
Panel, Instrument Cluster Finish, Center No.1
[07.2003 -] ACA2#,CLA2#,ZCA2# |
55412-42050 |
— | ||
|
55413C
|
55413C
55413-42060
Panel, Instrument Cluster Finish, Center No.2
[07.2003 -] ACA2#,CLA2#,ZCA2# |
55413-42060 |
— | ||
|
55419A
|
55419A
55419-42020 Cushion, Instrument Cluster Finish Panel[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55419-42020 |
US $4.95 |
||
|
55420A
|
55420A
55420-42020-B0 Panel Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.2000 - 07.2003] ACA2#,ZCA2#..EUR BLUE GRAY,TRIM14,15,1# |
55420-42020-B0 |
US $71.78 |
||
| replacement | |||||
|
55420A
|
55420A
55420-42020-B1 Panel Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [05.2000 - 07.2003] ACA2#,ZCA2#..EUR BLUE GRAY,TRIM14,15,1# |
55420-42020-B1 |
US $72.07 |
||
|
55420A
|
55420A
55420-42020-B1 Panel Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..EUR DK.GRAY,TRIM1# |
55420-42020-B1 |
US $72.07 |
||
|
55433B
|
55433B
55433-42020-B0 Panel, Instrument Panel Finish, Lower No.2[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55433-42020-B0 |
US $30.87 |
||
|
55433B
|
55433B
55433-42020-B1 Panel, Instrument Panel Finish, Lower No.2[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
55433-42020-B1 |
US $30.87 |
||
|
55441
|
55441
55441-42010-B0 Box, Instrument Panel[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55441-42010-B0 |
US $29.12 |
||
| replacement | |||||
|
55441
|
55441
55441-42010-B1 Box, Instrument Panel[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55441-42010-B1 |
US $29.12 |
||
|
55441
|
55441
55441-42010-B1 Box, Instrument Panel[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
55441-42010-B1 |
US $29.12 |
||
|
55441C
|
55441C
55441-12130-B5 Box, Instrument Panel Coin[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55441-12130-B5 |
US $6.84 |
||
| replacement | |||||
|
55441C
|
55441C
55441-12130-C0 Box, Instrument Panel[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55441-12130-C0 |
US $6.99 |
||
|
55441C
|
55441C
55441-12130-B7 Box, Instrument Panel Coin[07.2003 - 11.2005] ACA20,21,ZCA2# DK.GRAY,TRIM1# |
55441-12130-B7 |
US $6.41 |
||
| replacement | |||||
|
55441C
|
55441C
55441-12130-C0 Box, Instrument Panel[07.2003 - 11.2005] ACA20,21,ZCA2# DK.GRAY,TRIM1# |
55441-12130-C0 |
US $6.99 |
||
|
55446A
|
55446A
55446-42020-B0 Base, Switch Hole, No.1SWITCH HOLE, NO.1 [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD BLUE GRAY,TRIM14,15 |
55446-42020-B0 |
US $23.73 |
||
| replacement | |||||
|
55446A
|
55446A
55446-42020-B1 Base, Switch Hole, No.1SWITCH HOLE, NO.1 [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD BLUE GRAY,TRIM14,15 |
55446-42020-B1 |
from US $24.02 |
||
|
55446A
|
55446A
55446-42020-B1 Base, Switch Hole, No.1SWITCH HOLE, NO.1 [07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..LHD DK.GRAY,TRIM1# |
55446-42020-B1 |
from US $24.02 |
||
|
55471A
|
55471A
55471-42010 Ornament, Instrument Cluster Finish Panel[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55471-42010 |
US $2.77 |
||
|
55474B
|
55474B
55474-42010
Garnish, Instrument Cluster Finish Panel
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55474-42010 |
— | ||
|
55474B
|
55474B
55474-42020 Garnish, Instrument Cluster Finish Panel[07.2003 -] ACA2#,CLA2#,ZCA2# |
55474-42020 |
US $17.33 |
||
|
55477A
|
55477A
55477-32050 Bezel, Cigarette Lighter Hole[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55477-32050 |
US $2.77 |
||
|
55522B
|
55522B
55521-16030 Cover, Radio Tuner Opening[05.2000 - 08.2001] ACA2#,CLA2#,ZCA2#..LHD..EUR TYPE A:REFER TO ILLUSTRATION |
55521-16030 |
from US $23.15 |
||
|
55522B
|
55522B
55521-20150 Cover, Stereo Opening[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR TYPE B:REFER TO ILLUSTRATION |
55521-20150 |
US $22.68 |
||
|
55522B
|
55522B
55522-42010
Cover, Radio Tuner Opening
[08.2001 - 07.2003] ACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR TYPE C:REFER TO ILLUSTRATION |
55522-42010 |
— | ||
|
55539
|
55539
55539-42030-B0
Cover, Spare Switch Hole
[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55539-42030-B0 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-42030-B3 Cover, Spare Switch Hole[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55539-42030-B3 |
US $5.77 |
||
|
55539
|
55539
55539-42030-B3 Cover, Spare Switch Hole[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
55539-42030-B3 |
US $5.77 |
||
|
55547
|
55547
55547-42020-B0 Cover, Remote Control Mirror HoleREMOTE CONTROL MIRROR HOLE [05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55547-42020-B0 |
US $13.10 |
||
| replacement | |||||
|
55547
|
55547
55547-42020-C0 Cover, Remote Control Mirror Hole[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
55547-42020-C0 |
US $8.88 |
||
|
55650
|
55650
55650-42030 Register Assy, Instrument Panel, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55650-42030 |
US $43.68 |
||
|
55660
|
55660
55650-42030 Register Assy, Instrument Panel, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55650-42030 |
US $43.68 |
||
|
55661A
|
55661A
55661-42010 Bezel, Instrument Panel Register[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55661-42010 |
US $16.45 |
||
| replacement | |||||
|
55661A
|
55661A
55661-42020 Bezel, Instrument Panel Register[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
55661-42020 |
US $15.40 |
||
|
55661A
|
55661A
55661-42020 Bezel, Instrument Panel Register[07.2003 -] ACA2#,CLA2#,ZCA2# |
55661-42020 |
US $15.40 |
||
|
73970A
|
73970A
73970-42020-B0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD DK.GRAY,TRIM14,15 |
73970-42020-B0 |
US $1,616.16 |
||
|
73970A
|
73970A
73970-42060-B0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..LHD..EUR DK.GRAY,TRIM1#,TYPE B:REFER ILLUST. |
73970-42060-B0 |
US $1,616.16 |
||
|
74598B
|
74598B
74598-20010 Label, Driver & Passenger Air Bag Caution[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
74598-20010 |
US $1.61 |
||
|
82140
|
82140
82142-42030 Wire Assy, Instrument PanelINSTRUMENT PANEL [07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR |
82142-42030 |
US $19.66 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.72 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $1.38 |
||
|
9155480612
|
9155480612
91554-80612 BOLT FLANGE |
91554-80612 |
US $0.69 |
||
|
9155480814
|
9155480814
91554-80814 New Genuine Part |
91554-80814 |
US $0.67 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
