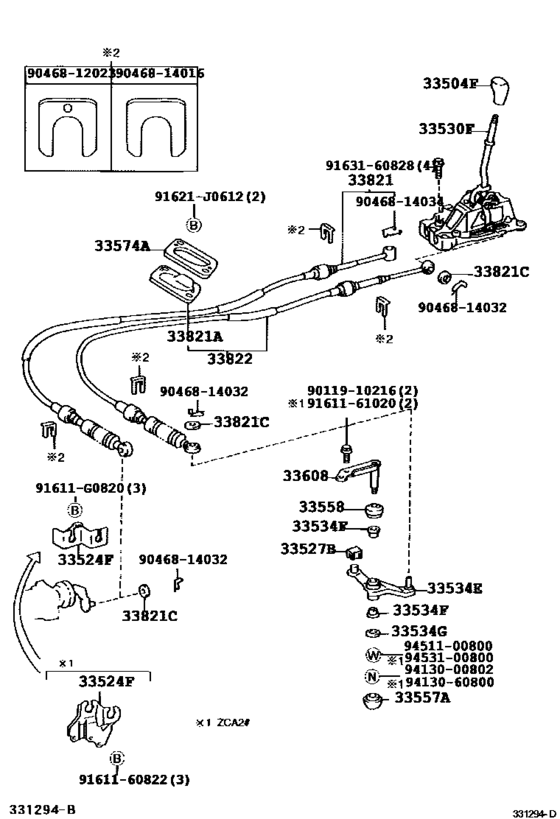

Shift Lever & Retainer ([05.2000 - ] (0005- )ACA2#,ZCA2#..MTM) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12180-C0 Knob Sub-Assy, Shift Lever[05.2000 - 07.2003] ACA21..MTM..ARL BLACK,TRIM1#; ACA20,CLA2#,ZCA2#..MTM;ACA21..MTM..(EUR,GCC,GEN) BLACK,TRIM14,15 |
33504-12180-C0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[05.2000 - 07.2003] ACA21..MTM..ARL BLACK,TRIM1#; ACA20,CLA2#,ZCA2#..MTM;ACA21..MTM..(EUR,GCC,GEN) BLACK,TRIM14,15 |
33504-12180-B7 |
from US $40.15 |
||
|
33504F
|
33504F
33504-13010-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [07.2003 - 11.2005] ACA2#,CLA2#,ZCA2#..MTM BLACK,TRIM1# |
33504-13010-C0 |
US $72.80 |
||
| replacement | |||||
|
33504F
|
33504F
33504-13010-B0 Knob Sub-Assy, Shift Lever[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2#..MTM BLACK,TRIM1# |
33504-13010-B0 |
US $77.93 |
||
|
33504F
|
33504F
33504-22140-C0 Knob Sub-Assy, Shift Lever[05.2000 - 07.2003] ACA21..MTM..ARL LEATHER,BLACK,TRIM1#; ACA20,CLA2#,ZCA2#..MTM;ACA21..MTM..(EUR,GCC,GEN) LEATHER,BLACK,TRIM14,15 |
33504-22140-C0 |
US $123 |
||
|
33504F
|
33504F
33504-42010-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [07.2003 - 10.2003] ACA2#,CLA2#,ZCA2#..MTM LEATHER,BLACK,TRIM1# |
33504-42010-C0 |
US $109.20 |
||
| replacement | |||||
|
33504F
|
33504F
33504-52060-B1
Knob Sub-Assy, Shift Lever
[07.2003 - 10.2003] ACA2#,CLA2#,ZCA2#..MTM LEATHER,BLACK,TRIM1# |
33504-52060-B1 |
— | ||
|
33504F
|
33504F
33504-42011-C0
Knob Sub-Assy, Shift Lever
[10.2003 - 11.2005] ACA2#,CLA2#,ZCA2#..MTM LEATHER,BLACK,TRIM1# |
33504-42011-C0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-52060-B1
Knob Sub-Assy, Shift Lever
[10.2003 - 11.2005] ACA2#,CLA2#,ZCA2#..MTM LEATHER,BLACK,TRIM1# |
33504-52060-B1 |
— | ||
|
33524F
|
33524F
33524-42020
Bracket, Control Lever Housing Support (For Floor Shift)
[05.2000 - 07.2003] ZCA2# |
33524-42020 |
— | ||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[05.2000 - 07.2003] ACA2#,ZCA2#..MTM |
33557-33010 |
from US $8.06 |
||
|
33530F
|
33530F
33530-42040
Lever Assy, Shift (For Floor Shift)
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD..MTM |
33530-42040 |
— | ||
|
33530F
|
33530F
33530-42060 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [07.2003 -] ACA20,21,CLA2#,ZCA2#..LHD..MTM |
33530-42060 |
US $147.06 |
||
|
33534E
|
33534E
33534-42010 Crank, Selecting Bell, No.2[05.2000 - 07.2003] ZCA2# |
33534-42010 |
US $41.23 |
||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
90386-12022 |
from US $2.16 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[05.2000 - 07.2003] ACA2#,ZCA2#..MTM |
90201-08028 |
US $1.24 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[05.2000 - 07.2003] ACA2#,ZCA2#..MTM |
33557-32010 |
from US $5.02 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[05.2000 - 07.2003] ACA2#,ZCA2#..MTM |
33558-10030 |
US $4.12 |
||
|
33574A
|
33574A
33574-42030
Retainer, Shift Cable Grommet, No.1
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
33574-42030 |
— | ||
|
33608
|
33608
33608-42010 Support Sub-Assy, Selecting Bellcrank[05.2000 - 07.2003] ZCA2# |
33608-42010 |
US $19.39 |
||
|
33821
|
33821
33821-42110 Cable Transmission Control Shift (For Floor Shift)[05.2000 - 07.2003] ZCA2# |
33821-42110 |
US $200.93 |
||
|
33821A
|
33821A
33577-42050 Grommet, No.1 (For Transmission Control Cable)[05.2000 - 07.2003] ACA2#,ZCA2#..MTM |
33577-42050 |
US $14.41 |
||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM OD=30,TRANSAXLE SIDE |
90201-08077 |
from US $1.42 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM SHIFT LEVER SIDE |
90201-10042 |
US $1.61 |
||
|
33822
|
33822
33822-42050 Cable Transmission Control Select (For Floor Shift)[05.2000 - 07.2003] ZCA2# |
33822-42050 |
US $174.72 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9011910216
|
9011910216
90119-10216 Bolt (For Control Shaft Cover) |
90119-10216 |
US $3.05 |
||
|
9046812023
|
9046812023
90468-12023 CLIP |
90468-12023 |
US $3.05 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.61 |
||
|
9046814034
|
9046814034
90468-14034 New Genuine Part |
90468-14034 |
US $1.40 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.02 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
