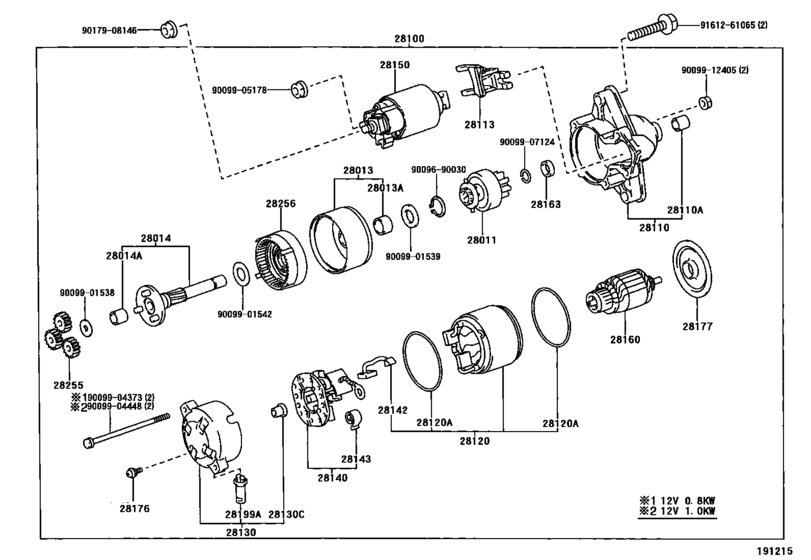

Starter ([05.2000 - 07.2003] 12V 0.8,1.0KW (0005-0307)1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28011-70020 |
from US $43.51 |
||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90099-10180 |
— | ||
|
28100
|
28100
28100-22030
Starter Assy
[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28100-22030 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-22031 Starter Assy[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28100-22031 |
from US $384.79 |
||
|
28100
|
28100
28100-22040
Starter Assy
[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28100-22040 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-22041 Starter Assy[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28100-22041 |
US $908.54 |
||
|
28110
|
28110
28110-22030 Housing Assy, Starter Drive[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28110-22030 |
US $46.88 |
||
|
28110A
|
28110A
90099-10171
Bearing(For Starter Housing)
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90099-10171 |
— | ||
|
28113
|
28113
28113-70020 Lever, Starter Pinion Drive[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28113-70020 |
US $12.23 |
||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28120-70050 |
— | ||
|
28120A
|
28120A
90099-14092
Ring, O(For Starter Yoke)
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90099-14092 |
— | ||
|
28130
|
28130
28130-15190
Frame Assy, Starter Commutator End
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28130-15190 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90099-10183 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28140-70020 |
from US $22.19 |
||
|
28142
|
28142
28142-70020 Brush, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28142-70020 |
from US $2.69 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28143-70020 |
— | ||
|
28150
|
28150
28150-70030
Switch Assy, Magnet Starter
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28150-70030 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-22100 Switch Assy, Magnet Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28150-22100 |
from US $84.81 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28163-70020 |
— | ||
|
28176
|
28176
90099-00270
Screw, Starter
[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
90099-00270 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28177-70020 |
— | ||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28199-46080 |
from US $2.97 |
||
|
28255
|
28255
28255-70020
Gear, Planet
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28256-70020 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904373
|
9009904373
90099-04373
BOLTTHROUGH
|
90099-04373 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.87 |
||
