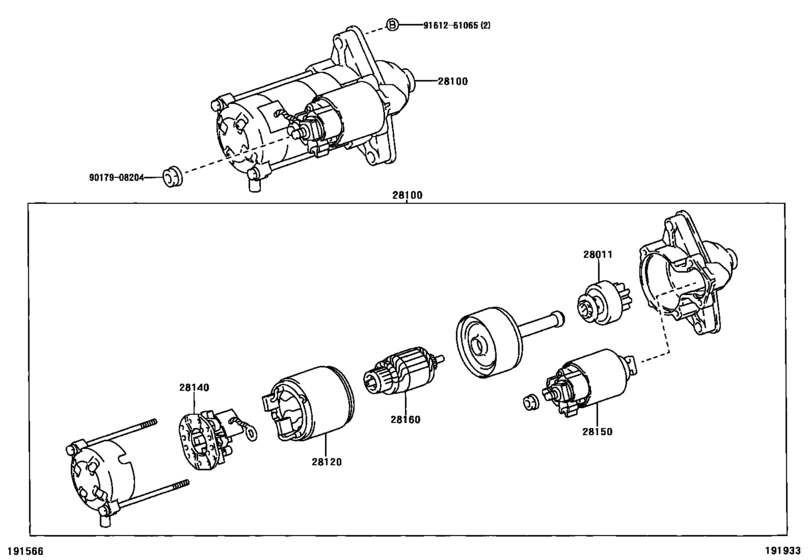

Starter ([07.2003 - ] 12V 0.8KW,1.0KW (0307- )1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28011-70020 |
from US $43.51 |
||
|
28100
|
28100
28100-22030
Starter Assy
[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28100-22030 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-22031 Starter Assy[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28100-22031 |
from US $384.79 |
||
|
28100
|
28100
28100-22040
Starter Assy
[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28100-22040 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-22041 Starter Assy[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28100-22041 |
US $908.54 |
||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28120-70050 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28140-70020 |
from US $22.19 |
||
|
28150
|
28150
28150-70030
Switch Assy, Magnet Starter
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28150-70030 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-22100 Switch Assy, Magnet Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# |
28150-22100 |
from US $84.81 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 0.8KW |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[05.2000 - 07.2003] 1ZZFE..ZCA2#..LHD 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.87 |
||
