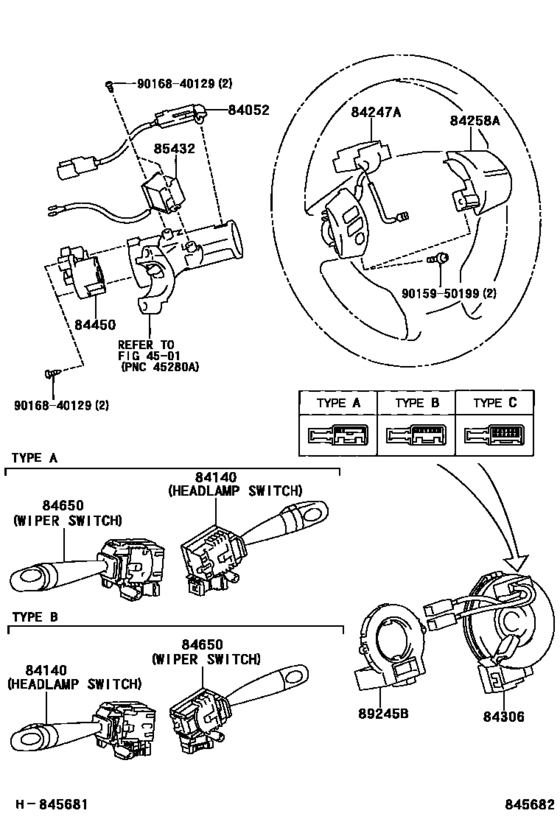

Switch & Relay & Computer ([07.2003 - ] IGNITION & COMBINATION SWITCH (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60020 Switch Assy, Un-Lock Warning[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
84052-60020 |
US $16.02 |
||
| replacement | |||||
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-42010 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD W(FRONT FOG LAMP SW); ACA2#,CLA2#,ZCA2#..RHD..EUR TYPE B:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW) |
84140-42010 |
from US $126.01 |
||
|
84140
|
84140
84140-52020 Switch Assy, Headlamp Dimmer[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD; ACA2#,CLA2#,ZCA2#..RHD..EUR TYPE B:REFER TO ILLUSTRATION |
84140-52020 |
US $49.90 |
||
|
84247A
|
84247A
84247-42010-C0 Switch, Steering Pad, LhSTEERING PAD, LH [07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..EUR BLACK,TRIM1# |
84247-42010-C0 |
US $110.66 |
||
| replacement | |||||
|
84247A
|
84247A
84247-52030
Switch, Steering Pad, Lh
[07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..EUR BLACK,TRIM1# |
84247-52030 |
— | ||
|
84258A
|
84258A
84258-68020-C0 Cover, Steering Pad, RhSTEERING PAD, RH [07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..EUR BLACK,TRIM1# |
84258-68020-C0 |
US $26.79 |
||
| replacement | |||||
|
84258A
|
84258A
84258-68020-B2 Cover, Steering Pad, Rh[07.2003 - 11.2005] ACA20,21,CLA2#,ZCA2#..EUR BLACK,TRIM1# |
84258-68020-B2 |
US $26.79 |
||
|
84306
|
84306
84306-42010 Cable Sub-Assy, SpiralSPIRAL [07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR TYPE C:REFER TO ILLUSTRATION |
84306-42010 |
US $282.46 |
||
|
84306
|
84306
84306-52020 Cable Sub-Assy, Spiral[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC |
84306-52020 |
from US $215.94 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
84450-52010 |
from US $72.50 |
||
|
84650
|
84650
84652-1A830 Switch Assy, Windshield WiperWINDSHIELD WIPER [07.2003 -] ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
84652-1A830 |
US $157.25 |
||
| replacement | |||||
|
84650
|
84650
84652-42120 Switch Assy, Windshield WiperWINDSHIELD WIPER [07.2003 -] ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
84652-42120 |
US $157.25 |
||
|
84650
|
84650
84652-42110 Switch Assy, Windshield WiperWINDSHIELD WIPER [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD; ACA2#,CLA2#,ZCA2#..RHD..EUR TYPE B:REFER TO ILLUSTRATION |
84652-42110 |
US $133.95 |
||
| replacement | |||||
|
84650
|
84650
84652-42120 Switch Assy, Windshield WiperWINDSHIELD WIPER [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD; ACA2#,CLA2#,ZCA2#..RHD..EUR TYPE B:REFER TO ILLUSTRATION |
84652-42120 |
US $157.25 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.53 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
