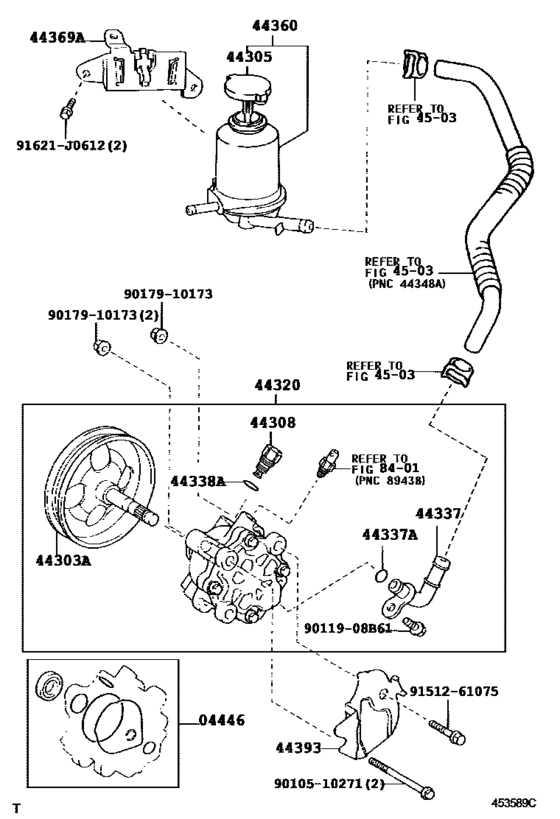

Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- ZCA25
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-32050 Gasket Kit, Power Steering Pump[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
04446-32050 |
from US $17.38 |
||
|
44303A
|
44303A
44303-32010 Shaft Sub-Assy, W/pulley[05.2000 - 07.2003] ZCA2# |
44303-32010 |
US $110.66 |
||
|
44305
|
44305
44305-28030
Cap Sub-Assy, Vane Pump Oil Reservoir
[01.2003 - 07.2003] ACA2#,CLA2#,ZCA2# |
44305-28030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[01.2003 - 07.2003] ACA2#,CLA2#,ZCA2# |
44305-28061 |
from US $15.54 |
||
|
44308
|
44308
44308-42020 Union Sub-Assy, Pressure Port[05.2000 - 07.2003] ZCA2# |
44308-42020 |
US $42.81 |
||
|
44320
|
44320
44310-42080 Pump Assy, Vane[05.2000 - 07.2003] ZCA2# |
44310-42080 |
US $1,275.46 |
||
|
44337
|
44337
44337-42010 Union, Power Steering Suction Port[05.2000 - 07.2003] ACA2#,ZCA2# |
44337-42010 |
US $17.41 |
||
|
44337A
|
44337A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90301-11020 |
from US $2.18 |
||
|
44338A
|
44338A
90301-18009 Ring, O(For Pressure Port Union)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# OD=22,ID=18.6 |
90301-18009 |
US $2.51 |
||
|
44360
|
44360
44360-42030 Reservoir Assy, Vane Pump Oil[05.2000 - 07.2003] ACA2#,ZCA2# |
44360-42030 |
US $145.02 |
||
|
44369A
|
44369A
44390-42040 Bracket, Oil Reservoir, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
44390-42040 |
US $18.64 |
||
|
44393
|
44393
44393-42010 Insulator, Power Steering Pump Heat[09.2000 - 07.2003] ZCA2# |
44393-42010 |
US $11.36 |
||
|
44393
|
44393
44393-63010 Insulator, Power Steering Pump Heat[05.2000 - 09.2000] ZCA2# |
44393-63010 |
US $9.32 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
|
9010510271
|
9010510271
90105-10271 BOLT WASHER BASED |
90105-10271 |
from US $4.70 |
||
|
9017910173
|
9017910173
90179-10173 NUT |
90179-10173 |
US $3.58 |
||
|
9151261075
|
9151261075
91512-61075 New Genuine Part |
91512-61075 |
US $2.80 |
||
