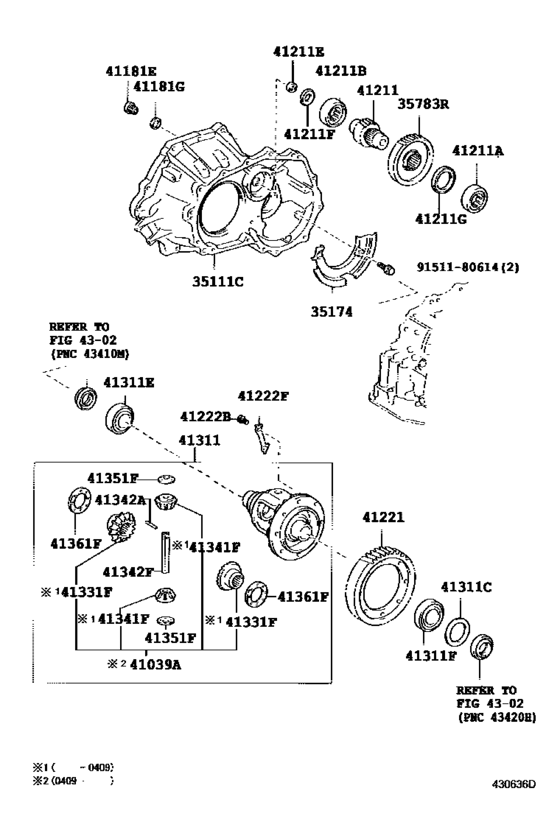

Front Axle Housing & Differential ([05.2000 - ] U341E (0005- )ZCA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- ZCA25
- grade
- AERO
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 07.2003
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-20160 Housing, Transaxle[05.2000 - 07.2003] ZCA2# |
35105-20160 |
US $713.44 |
||
| replacement | |||||
|
35111C
|
35111C
35105-20161 Housing, Transaxle[05.2000 - 07.2003] ZCA2# |
35105-20161 |
US $495.04 |
||
|
35174
|
35174
35174-20010 Separator, Transaxle Housing Oil[05.2000 - 07.2003] ZCA2# |
35174-20010 |
US $11.65 |
||
|
35783R
|
35783R
35783-52020
Gear, Counter Driven
[05.2000 - 07.2003] ZCA2# |
35783-52020 |
— | ||
| replacements | |||||
|
35783R
|
35783R
41205-52011 Pinion Sub-Assy, Differential Drive[05.2000 - 07.2003] ZCA2# |
41205-52011 |
US $107.74 |
||
|
35783R
|
35783R
41205-52021 Pinion Sub-Assy, Differential Drive[05.2000 - 07.2003] ZCA2# |
41205-52021 |
from US $83.54 |
||
|
35783R
|
35783R
41205-52031
Pinion Sub-assy, Differential Drive
[05.2000 - 07.2003] ZCA2# |
41205-52031 |
— | ||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[05.2000 - 07.2003] ZCA2# |
90341-18021 |
from US $2.32 |
||
|
41181G
|
41181G
90430-18008 Gasket[05.2000 - 07.2003] ZCA2# |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.2000 - 07.2003] ZCA2# |
90430-T0021 |
US $1.01 |
||
|
41211
|
41211
41211-52040 Pinion, Differential Drive[05.2000 - 07.2003] ZCA2# |
41211-52040 |
US $144.14 |
||
|
41211A
|
41211A
90365-35004 Bearing, Tapered Roller (For Front Drive Pinion Front)[05.2000 - 07.2003] ZCA2# |
90365-35004 |
from US $32.50 |
||
|
41211B
|
41211B
90365-35003 Bearing, Tapered Roller (For Front Drive Pinion Rear)[05.2000 - 07.2003] ZCA2# |
90365-35003 |
US $30.58 |
||
|
41211E
|
41211E
90331-17017 Plug(For Differential Drive Pinion)[05.2000 - 07.2003] ZCA2# |
90331-17017 |
US $1.16 |
||
|
41211F
|
41211F
90374-18005 Bearing, Thrust Needle Roller(For Front Drive Pinion Rh)[05.2000 - 07.2003] ZCA2# |
90374-18005 |
US $12.23 |
||
|
41211G
|
41211G
90374-45001 Bearing, Thrust Needle Roller(For Front Drive Pinion Lh)[05.2000 - 07.2003] ZCA2# |
90374-45001 |
from US $14.15 |
||
|
41221
|
41221
41221-52090 Gear, Front Differential Ring[05.2000 - 07.2003] ZCA2# |
41221-52090 |
US $142.69 |
||
| replacement | |||||
|
41221
|
41221
41221-52091 Gear, Front Differential Ring[05.2000 - 07.2003] ZCA2# |
41221-52091 |
from US $106.29 |
||
|
41222B
|
41222B
90101-11003 Bolt (For Rear Differential Ring Gear Set)[05.2000 - 07.2003] ZCA2# |
90101-11003 |
US $0.96 |
||
|
41222F
|
41222F
41222-32010 Plate, Rear Differential Ring Gear Set Bolt Lock[05.2000 - 07.2003] ZCA2# |
41222-32010 |
from US $2.06 |
||
|
41311
|
41311
41301-12210
Case, Front Differential
[01.2003 - 07.2003] ZCA2# |
41301-12210 |
— | ||
|
41311
|
41311
41301-32071 Case, Front Differential[05.2000 - 01.2003] ZCA2# |
41301-32071 |
US $564.93 |
||
|
41311C
|
41311C
90564-49001
Shim (For Front Differential Case Rear)
[05.2000 - 07.2003] ZCA2# 厚さ＝１．９０，マーク ０１ |
90564-49001 |
— | ||
|
41311C
|
41311C
90564-49002 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝１．９５，マーク ０２ |
90564-49002 |
US $3.20 |
||
|
41311C
|
41311C
90564-49003 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．００，マーク ０３ |
90564-49003 |
US $3.20 |
||
|
41311C
|
41311C
90564-49004 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．０５，マーク ０４ |
90564-49004 |
US $3.20 |
||
|
41311C
|
41311C
90564-49005 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．１０，マーク ０５ |
90564-49005 |
US $3.20 |
||
|
41311C
|
41311C
90564-49006 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．１５，マーク ０６ |
90564-49006 |
US $3.20 |
||
|
41311C
|
41311C
90564-49007 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．２０，マーク ０７ |
90564-49007 |
US $3.20 |
||
|
41311C
|
41311C
90564-49008
Shim (For Front Differential Case Rear)
[05.2000 - 07.2003] ZCA2# 厚さ＝２．２５，マーク ０８ |
90564-49008 |
— | ||
|
41311C
|
41311C
90564-49009 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．３０，マーク ０９ |
90564-49009 |
US $3.20 |
||
|
41311C
|
41311C
90564-49010 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．３５，マーク １０ |
90564-49010 |
US $3.20 |
||
|
41311C
|
41311C
90564-49011 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．４０，マーク １１ |
90564-49011 |
US $3.20 |
||
|
41311C
|
41311C
90564-49012 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．４５，マーク １２ |
90564-49012 |
US $3.20 |
||
|
41311C
|
41311C
90564-49013 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．５０，マーク １３ |
90564-49013 |
US $3.20 |
||
|
41311C
|
41311C
90564-49014 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．５５，マーク １４ |
90564-49014 |
US $3.20 |
||
|
41311C
|
41311C
90564-49015 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．６０，マーク １５ |
90564-49015 |
US $3.20 |
||
|
41311C
|
41311C
90564-49016
Shim (For Front Differential Case Rear)
[05.2000 - 07.2003] ZCA2# 厚さ＝２．６５，マーク １６ |
90564-49016 |
— | ||
|
41311C
|
41311C
90564-49017 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．７０，マーク １７ |
90564-49017 |
US $3.20 |
||
|
41311C
|
41311C
90564-49018 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．７５，マーク １８ |
90564-49018 |
US $3.20 |
||
|
41311C
|
41311C
90564-49019 Shim (For Front Differential Case Rear)[05.2000 - 07.2003] ZCA2# 厚さ＝２．８０，マーク １９ |
90564-49019 |
US $3.20 |
||
|
41311E
|
41311E
90366-40016 Bearing(For Rear Differential Case)[05.2000 - 07.2003] ZCA2# |
90366-40016 |
from US $25.33 |
||
|
41311F
|
41311F
90366-44001 Bearing(For Rear Differential Case)[05.2000 - 07.2003] ZCA2# |
90366-44001 |
from US $25.33 |
||
|
41331F
|
41331F
41331-32010 Gear, Rear Differential Side[05.2000 - 07.2003] ZCA2# |
41331-32010 |
US $55.74 |
||
|
41341F
|
41341F
41341-30011 Pinion, Rear Differential[05.2000 - 07.2003] ZCA2# |
41341-30011 |
from US $36.29 |
||
| replacement | |||||
|
41341F
|
41341F
41039-28010 Gear Kit, Differential, Rear[05.2000 - 07.2003] ZCA2# |
41039-28010 |
US $251.60 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[05.2000 - 07.2003] ZCA2# |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[05.2000 - 07.2003] ZCA2# |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[05.2000 - 07.2003] ZCA2# |
41342-52060 |
US $15.03 |
||
|
41351F
|
41351F
41351-32010 Washer, Rear Differential Pinion Thrust[05.2000 - 07.2003] ZCA2# |
41351-32010 |
from US $1.33 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[05.2000 - 07.2003] ZCA2# 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[05.2000 - 07.2003] ZCA2# 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[05.2000 - 07.2003] ZCA2# 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[05.2000 - 07.2003] ZCA2# 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[05.2000 - 07.2003] ZCA2# 厚さ＝１．１５ |
41361-17050 |
US $2.62 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[05.2000 - 07.2003] ZCA2# 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
