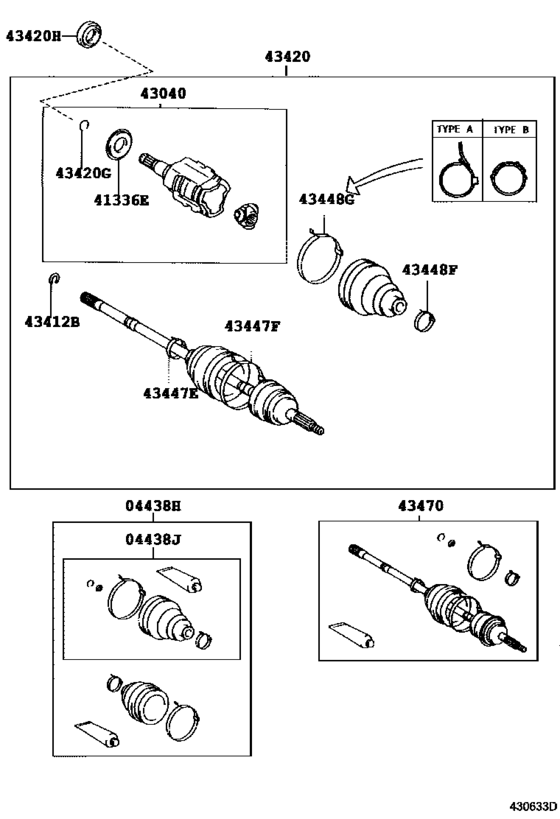

Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- ZCA25
- grade
- AERO
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 07.2003
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-20390 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2000 - 04.2001] ZCA2# |
04438-20390 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-20133 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2000 - 04.2001] ZCA2# |
04438-20133 |
US $145.60 |
||
|
04438H
|
04438H
04438-63010 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2001 - 07.2003] ZCA2# |
04438-63010 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2001 - 07.2003] ZCA2# |
04428-12250 |
from US $141.52 |
||
|
04438J
|
04438J
04438-20380 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2000 - 04.2001] ZCA2# |
04438-20380 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2000 - 04.2001] ZCA2# |
04438-42201 |
from US $66.73 |
||
|
04438J
|
04438J
04438-32240 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2001 - 07.2003] ZCA2# |
04438-32240 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2001 - 07.2003] ZCA2# |
04438-42201 |
from US $66.73 |
||
|
41336E
|
41336E
41336-12060 Cover, Front Drive Shaft Dust, Rh[11.2000 - 07.2003] ZCA2# |
41336-12060 |
from US $3.20 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[05.2000 - 11.2000] ZCA2# |
41336-32020 |
US $4.02 |
||
|
43040
|
43040
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[05.2000 - 07.2003] ZCA2# |
43040-32040 |
from US $227.14 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[05.2000 - 07.2003] ZCA2# |
90520-22005 |
from US $1.17 |
||
|
43420
|
43420
43420-42090 Shaft Assy, Front Drive, Lh[05.2000 - 04.2001] ZCA2# |
43420-42090 |
US $962.42 |
||
| replacement | |||||
|
43420
|
43420
43420-42091 Shaft Assy, Front Drive, Lh[05.2000 - 04.2001] ZCA2# |
43420-42091 |
from US $539.04 |
||
|
43420
|
43420
43420-42091 Shaft Assy, Front Drive, Lh[04.2001 - 07.2003] ZCA2# |
43420-42091 |
from US $539.04 |
||
|
43420G
|
43420G
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[05.2000 - 07.2003] ZCA2# |
90521-27005 |
from US $1.66 |
||
|
43420H
|
43420H
90311-35046
Oil Seal, Front Drive Shaft, Lh
[05.2000 - 07.2003] ZCA2# |
90311-35046 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35054
Oil Seal, Front Drive Shaft, Lh
[05.2000 - 07.2003] ZCA2# |
90311-35054 |
— | ||
|
43447E
|
43447E
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2001 - 07.2003] ZCA2# |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447E
|
43447E
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2001 - 07.2003] ZCA2# |
42345-12190 |
US $2.91 |
||
|
43447E
|
43447E
42345-20100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[05.2000 - 04.2001] ZCA2# 内径＝３１．１ |
42345-20100 |
US $7.13 |
||
|
43447F
|
43447F
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2001 - 07.2003] ZCA2# |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447F
|
43447F
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[04.2001 - 07.2003] ZCA2# |
42345-12180 |
US $5.91 |
||
|
43447F
|
43447F
42345-20120 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[05.2000 - 04.2001] ZCA2# 内径＝９０．６ |
42345-20120 |
US $8.30 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.2000 - 07.2003] ZCA2# |
90949-01078 |
US $0.96 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [02.2002 - 07.2003] ZCA2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-12160 |
from US $4.45 |
||
|
43448G
|
43448G
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[05.2000 - 03.2002] ACA2#; ZCA2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,オレンジ マーク |
90949-01076 |
— | ||
| replacement | |||||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [05.2000 - 03.2002] ACA2#; ZCA2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,オレンジ マーク |
42345-12160 |
from US $4.45 |
||
|
43448G
|
43448G
90949-01946 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.2000 - 03.2002] ZCA2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,マーク無し |
90949-01946 |
US $4.37 |
||
| replacement | |||||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [05.2000 - 03.2002] ZCA2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,マーク無し |
42345-12160 |
from US $4.45 |
||
|
43470
|
43470
43470-49135 Shaft Assy, Front Drive Outboard Joint, Lh[05.2000 - 04.2001] ZCA2# |
43470-49135 |
US $697.42 |
||
| replacement | |||||
|
43470
|
43470
43470-49136 Shaft Assy, Front Drive Outboard Joint, Rh[05.2000 - 04.2001] ZCA2# |
43470-49136 |
US $698.88 |
||
|
43470
|
43470
43470-49136 Shaft Assy, Front Drive Outboard Joint, Rh[04.2001 - 07.2003] ZCA2# |
43470-49136 |
US $698.88 |
||
