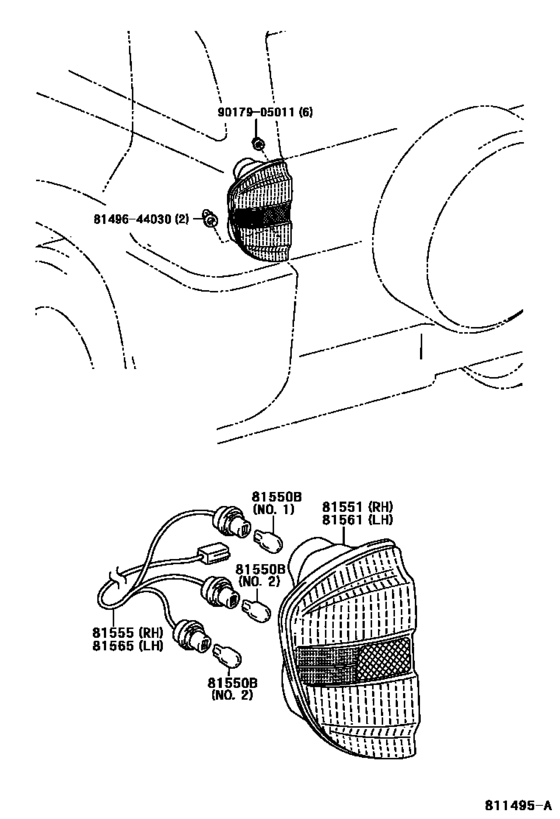

Rear Combination Lamp ([05.2000 - 07.2003] (0005-0307)) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- ZCA25
- grade
- AERO
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 07.2003
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550B
|
81550B
90981-11042
Bulb (For Front Turn Signal Lamp)
[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１Ｗ,ＮＯ．２，ＴＯＳＨＩＢＡ |
90981-11042 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１Ｗ,ＮＯ．２，ＴＯＳＨＩＢＡ |
90981-13043 |
from US $3.24 |
||
|
81550B
|
81550B
90981-11043
Bulb(For Rear Combination Lamp)
[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１／５Ｗ,ＮＯ．１，ＴＯＳＨＩＢＡ |
90981-11043 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１／５Ｗ,ＮＯ．１，ＴＯＳＨＩＢＡ |
90981-13044 |
from US $3.55 |
||
|
81550B
|
81550B
90981-11047 Bulb (For Front Turn Signal Lamp)[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１Ｗ,ＮＯ．２，ライフ エレックス |
90981-11047 |
US $3.20 |
||
| replacement | |||||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１Ｗ,ＮＯ．２，ライフ エレックス |
90981-13043 |
from US $3.24 |
||
|
81550B
|
81550B
90981-11048
Bulb(For Rear Combination Lamp)
[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１／５Ｗ,ＮＯ．１，ライフ エレツクス |
90981-11048 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[05.2000 - 07.2003] ACA2#,ZCA2# １２Ｖ ２１／５Ｗ,ＮＯ．１，ライフ エレツクス |
90981-13044 |
from US $3.55 |
||
|
81551
|
81551
81551-42060 Lens, Rear Combination Lamp, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
81551-42060 |
US $211.24 |
||
|
81555
|
81555
81555-42060 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
81555-42060 |
US $33.20 |
||
|
81561
|
81561
81561-42060 Lens, Rear Combination Lamp, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
81561-42060 |
US $211.24 |
||
|
81565
|
81565
81555-42060 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
81555-42060 |
US $33.20 |
||
|
8149644030
|
8149644030
81496-44030 Guide, Rear Combination Lamp |
81496-44030 |
US $2.87 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
