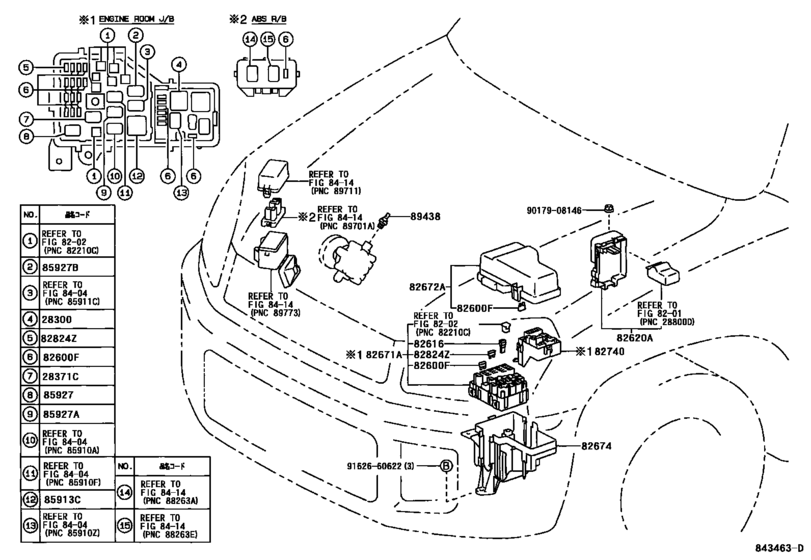

Switch & Relay & Computer ([05.2000 - 07.2003] ｴﾝｼﾞﾝﾙ-ﾑ (0005-0307)) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- ZCA25
- grade
- AERO
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 07.2003
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[05.2000 - 07.2003] 1AZFSE,1ZZFE..ACA2#,ZCA2# |
28300-10020 |
from US $53.76 |
||
|
28371C
|
28371C
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2003] 1AZFSE,1ZZFE..ACA2#,ZCA2# |
90987-02012 |
from US $26.54 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# １０Ａ，ミニ ヒューズ |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[05.2000 - 07.2003] ACA2#,ZCA2# |
82616-20010 |
from US $2.34 |
||
|
82620A
|
82620A
82620-42030 Block Assy, Fusible Link[05.2000 - 07.2003] ACA2#,ZCA2# |
82620-42030 |
US $51.07 |
||
|
82671A
|
82671A
82721-42020 Block, Junction[05.2000 - 07.2003] ZCA2# |
82721-42020 |
US $388.75 |
||
|
82672A
|
82672A
82672-42070 Cover, Junction Block[05.2000 - 07.2003] ZCA2# |
82672-42070 |
US $48.34 |
||
|
82674
|
82674
82674-42010 Cover, Junction Block Lower[05.2000 - 07.2003] ACA2#,ZCA2# |
82674-42010 |
US $81.54 |
||
|
82740
|
82740
82740-42030 Block Assy, Engine Room Relay[05.2000 - 07.2003] ACA2#,ZCA2# |
82740-42030 |
US $43.68 |
||
|
82824Z
|
82824Z
82824-20140 Connector, Wiring Harness[05.2000 - 07.2003] ZCA2# |
82824-20140 |
US $2.48 |
||
|
85913C
|
85913C
90987-04006 Relay Assy (For Heater Blower Motor)[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-04010 |
from US $47.21 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-02012 |
from US $26.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
90987-02012 |
from US $26.54 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[05.2000 - 07.2003] ACA2#,ZCA2# |
89438-33010 |
from US $29.78 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9162660622
|
9162660622
91626-60622 New Genuine Part |
91626-60622 |
US $1.46 |
||
| replacement | |||||
|
9162660622
|
9162660622
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.25 |
||
