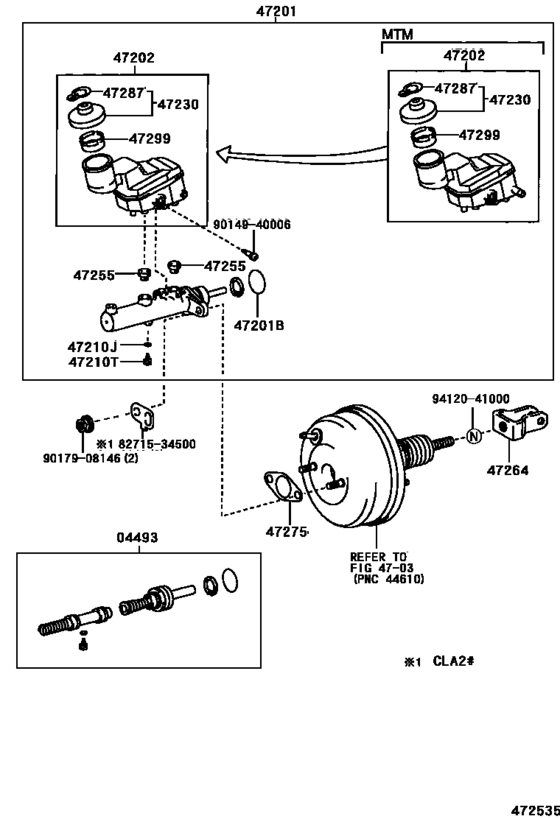

Brake Master Cylinder ([05.2000 - ] (0005- )LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-28160 Cylinder Kit, Brake Master[05.2000 - 08.2002] ACA2#,CLA2#,ZCA2#..EUR |
04493-28160 |
US $62.72 |
||
|
47201
|
47201
47201-42230 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [05.2000 - 08.2002] ACA2#,CLA2#,ZCA2#..LHD..MTM..EUR |
47201-42230 |
from US $390.21 |
||
|
47201
|
47201
47201-42231 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [07.2003 -] ACA20,21,CLA2#,ZCA2#..LHD..MTM |
47201-42231 |
US $390.21 |
||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90029-20059 |
from US $3.20 |
||
|
47202
|
47202
47220-42060 Reservoir Sub-Assy, Brake Master Cylinder[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..MTM |
47220-42060 |
US $131.04 |
||
|
47202
|
47202
47220-42090 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [07.2003 -] ACA2#,CLA2#,ZCA2#..MTM |
47220-42090 |
US $131.04 |
||
|
47210J
|
47210J
90029-43001 Gasket(For Master Cylinder)[12.2001 - 07.2003] ACA2#,CLA2#,ZCA2# |
90029-43001 |
US $1.40 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[05.2000 - 12.2001] ACA2#,CLA2#,ZCA2# |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47230-20140 |
from US $7.22 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47255-16010 |
from US $5.76 |
||
|
47264
|
47264
47264-42010 Clevis, Master Cylinder Push Rod[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47264-42010 |
US $3.35 |
||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[05.2000 - 05.2001] ACA2#,ZCA2# |
47275-12020 |
from US $1.92 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
47299-25010 |
US $5.42 |
||
|
8271534500
|
8271534500
82715-34500
Bracket,wiring Harness Clamp
|
82715-34500 |
— | ||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
