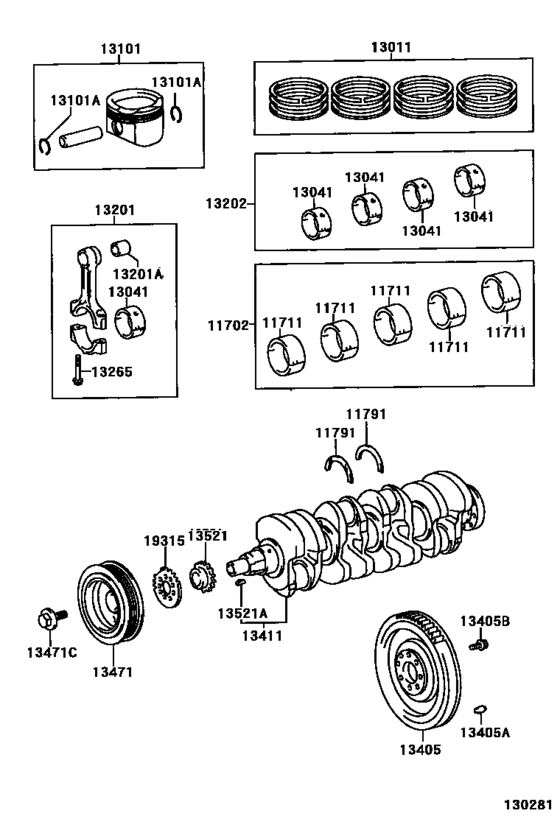

Crankshaft & Piston ([05.2000 - ] (0005- )1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-22011 Bearing Set, Crankshaft[07.2004 -] 1ZZFE..ZCA2# U/S 0.25 |
11704-22011 |
from US $106.35 |
||
|
11702
|
11702
11704-22030 Bearing Set, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# U/S 0.25 |
11704-22030 |
US $250.43 |
||
| replacement | |||||
|
11702
|
11702
11704-22011 Bearing Set, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# U/S 0.25 |
11704-22011 |
from US $106.35 |
||
|
11711
|
11711
11701-22010-01 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
11701-22010-01 |
US $41.79 |
||
| replacement | |||||
|
11711
|
11711
11701-22011-01 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
11701-22011-01 |
from US $18.39 |
||
|
11711
|
11711
11701-22010-02 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-22010-02 |
US $52.42 |
||
| replacement | |||||
|
11711
|
11711
11701-22011-02 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-22011-02 |
from US $18.68 |
||
|
11711
|
11711
11701-22010-03 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-22010-03 |
US $41.79 |
||
| replacement | |||||
|
11711
|
11711
11701-22011-03 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-22011-03 |
from US $18.04 |
||
|
11711
|
11711
11701-22010-04 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-22010-04 |
US $41.79 |
||
| replacement | |||||
|
11711
|
11711
11701-22011-04 Bearing, Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-22011-04 |
US $40.95 |
||
|
11711
|
11711
11701-22011-01 Bearing, Crankshaft[07.2004 -] 1ZZFE..ZCA2# MARK 1:REFER TO REPAIR MANUAL,MARK1 |
11701-22011-01 |
from US $18.39 |
||
|
11711
|
11711
11701-22011-02 Bearing, Crankshaft[07.2004 -] 1ZZFE..ZCA2# MARK 2:REFER TO REPAIR MANUAL,MARK2 |
11701-22011-02 |
from US $18.68 |
||
|
11711
|
11711
11701-22011-03 Bearing, Crankshaft[07.2004 -] 1ZZFE..ZCA2# MARK 3:REFER TO REPAIR MANUAL,MARK3 |
11701-22011-03 |
from US $18.04 |
||
|
11711
|
11711
11701-22011-04 Bearing, Crankshaft[07.2004 -] 1ZZFE..ZCA2# MARK 4:REFER TO REPAIR MANUAL,MARK4 |
11701-22011-04 |
US $40.95 |
||
|
11791
|
11791
11791-22020 Washer, Crankshaft Thrust, Upper[05.2000 - 07.2003] 1ZZFE..ZCA2# STD |
11791-22020 |
from US $17.02 |
||
|
13011
|
13011
13011-22090
Ring Set, Piston
[05.2000 - 11.2001] 1ZZFE..ZCA2# STD |
13011-22090 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-22150 Ring Set, Piston[05.2000 - 11.2001] 1ZZFE..ZCA2# STD |
13011-22150 |
from US $134.86 |
||
|
13011
|
13011
13011-22150 Ring Set, Piston[11.2001 - 07.2003] 1ZZFE..ZCA2# STD |
13011-22150 |
from US $134.86 |
||
|
13041
|
13041
13041-22023-01 Bearing, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-22023-01 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-22024-01 Bearing, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13041-22024-01 |
from US $13.92 |
||
|
13041
|
13041
13041-22023-02 Bearing, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-22023-02 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-22024-02 Bearing, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-22024-02 |
from US $13.71 |
||
|
13041
|
13041
13041-22023-03 Bearing, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-22023-03 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-22024-03 Bearing, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-22024-03 |
from US $12.79 |
||
|
13041
|
13041
13041-22024-01 Bearing, Connecting Rod[05.2004 -] 1ZZFE..ZCA2# MARK 1:REFER TO REPAIR MANUAL,MARK1 |
13041-22024-01 |
from US $13.92 |
||
|
13041
|
13041
13041-22024-02 Bearing, Connecting Rod[05.2004 -] 1ZZFE..ZCA2# MARK 2:REFER TO REPAIR MANUAL,MARK2 |
13041-22024-02 |
from US $13.71 |
||
|
13041
|
13041
13041-22024-03 Bearing, Connecting Rod[05.2004 -] 1ZZFE..ZCA2# MARK 3:REFER TO REPAIR MANUAL,MARK3 |
13041-22024-03 |
from US $12.79 |
||
|
13101
|
13101
13101-22030 Piston Sub-Assy, W/pin[05.2000 - 12.2001] 1ZZFE..ZCA2# STD |
13101-22030 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-22032 Piston Sub-Assy, W/pin[05.2000 - 12.2001] 1ZZFE..ZCA2# STD |
13101-22032 |
from US $59.38 |
||
|
13101
|
13101
13101-22031 Piston Sub-Assy, W/pin[12.2001 - 07.2003] 1ZZFE..ZCA2# STD |
13101-22031 |
US $90.27 |
||
| replacement | |||||
|
13101
|
13101
13101-22032 Piston Sub-Assy, W/pin[12.2001 - 07.2003] 1ZZFE..ZCA2# STD |
13101-22032 |
from US $59.38 |
||
|
13101
|
13101
13101-22032 Piston Sub-Assy, W/pin[05.2005 -] 1ZZFE..ZCA2# STD |
13101-22032 |
from US $59.38 |
||
|
13101A
|
13101A
90520-20064 Ring, Hole Snap(For Piston Pin)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90520-20064 |
US $1.60 |
||
|
13201
|
13201
13201-09201
Rod Sub-Assy, Connecting
[01.2005 -] 1ZZFE..ZCA2# (L) |
13201-09201 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29177 Rod Sub-Assy, Connecting[01.2005 -] 1ZZFE..ZCA2# (L) |
13201-29177 |
from US $129.66 |
||
|
13201
|
13201
13201-29038
Rod Sub-Assy, Connecting
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13201-29038 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29177 Rod Sub-Assy, Connecting[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13201-29177 |
from US $129.66 |
||
|
13201
|
13201
13201-29176 Rod Sub-Assy, Connecting[07.2004 - 01.2005] 1ZZFE..ZCA2# |
13201-29176 |
US $177.63 |
||
| replacement | |||||
|
13201
|
13201
13201-29177 Rod Sub-Assy, Connecting[07.2004 - 01.2005] 1ZZFE..ZCA2# |
13201-29177 |
from US $129.66 |
||
|
13201A
|
13201A
90999-73140 Bush(For Connecting Rod Small End)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90999-73140 |
from US $17.61 |
||
|
13202
|
13202
13204-22023 Bearing Set, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# U/S 0.25 |
13204-22023 |
US $144.14 |
||
| replacement | |||||
|
13202
|
13202
13204-22024 Bearing Set, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# U/S 0.25 |
13204-22024 |
from US $69.11 |
||
|
13202
|
13202
13204-22024 Bearing Set, Connecting Rod[07.2004 -] 1ZZFE..ZCA2# U/S 0.25 |
13204-22024 |
from US $69.11 |
||
|
13265
|
13265
13265-22020 Bolt, Connecting Rod[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13265-22020 |
US $5.07 |
||
| replacement | |||||
|
13265
|
13265
13265-22040 BOLT, CONNECTING ROD[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13265-22040 |
from US $3 |
||
|
13405
|
13405
13451-22020 Flywheel Sub-Assy[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13451-22020 |
US $321.78 |
||
| replacement | |||||
|
13405
|
13405
13405-22020 Flywheel Sub-Assy[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13405-22020 |
US $221.31 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.2000 - 07.2003] 1ZZFE..ZCA2# L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90910-02103 Bolt, Flywheel Setting[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90910-02103 |
from US $4.16 |
||
|
13411
|
13411
13401-22020 Crankshaft[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13401-22020 |
US $1,333.11 |
||
|
13471
|
13471
13470-22020
Pulley, Crankshaft
[05.2000 - 11.2001] 1ZZFE..ZCA2# |
13470-22020 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-22021 Pulley, Crankshaft[05.2000 - 11.2001] 1ZZFE..ZCA2# |
13470-22021 |
from US $158.07 |
||
|
13471
|
13471
13470-22021 Pulley, Crankshaft[11.2001 - 07.2003] 1ZZFE..ZCA2# |
13470-22021 |
from US $158.07 |
||
|
13471C
|
13471C
90119-12127 Bolt(For Crankshaft Pulley Set)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90119-12127 |
US $3.84 |
||
|
13521
|
13521
13521-22020 Gear Or Sprocket, Crankshaft Timing[05.2000 - 07.2003] 1ZZFE..ZCA2# |
13521-22020 |
from US $12.71 |
||
|
13521A
|
13521A
95161-30416 Pin, Straight(For Crankshaft)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
95161-30416 |
from US $1.54 |
||
|
19315
|
19315
19315-22020 Plate, Crank Angle Sensor, No.1[05.2000 - 07.2003] 1ZZFE..ZCA2# |
19315-22020 |
from US $7.41 |
||
