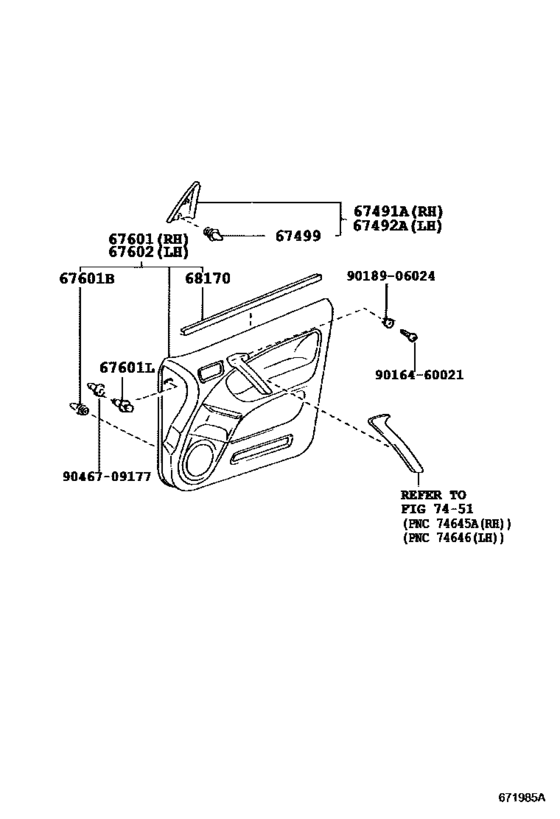

Front Door Panel & Glass ([05.2000 - ] 5 DOOR (0005- )ACA21,23,CLA21,ZCA26) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-42030 Garnish, Front Door Lower Frame Bracket, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67491-42030 |
US $13.42 |
||
| replacement | |||||
|
67491A
|
67491A
67491-42040
Garnish, Front Door Lower Frame Bracket, Rh
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67491-42040 |
— | ||
|
67491A
|
67491A
67491-42040
Garnish, Front Door Lower Frame Bracket, Rh
[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR W(TWEETER SPEAKER) |
67491-42040 |
— | ||
|
67492A
|
67492A
67492-42030
Garnish, Front Door Lower Frame Bracket, Lh
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67492-42030 |
— | ||
| replacement | |||||
|
67492A
|
67492A
67492-42040
Garnish, Front Door Lower Frame Bracket, Lh
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67492-42040 |
— | ||
|
67492A
|
67492A
67492-42040
Garnish, Front Door Lower Frame Bracket, Lh
[07.2003 -] ACA20,21,CLA2#,ZCA2#..EUR W(TWEETER SPEAKER) |
67492-42040 |
— | ||
|
67499
|
67499
67771-17020 Retainer, Front Door Lower Frame Bracket Garnish[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67771-17020 |
US $1.60 |
||
|
67601
|
67601
67610-42530-B0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14 |
67610-42530-B0 |
US $531.44 |
||
|
67601
|
67601
67610-42530-B1 Board Sub-Assy, Front Door Trim, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15 |
67610-42530-B1 |
US $531.44 |
||
|
67601
|
67601
67610-42540-B0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14 |
67610-42540-B0 |
US $531.44 |
||
|
67601
|
67601
67610-42540-B1 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15 |
67610-42540-B1 |
US $531.44 |
||
|
67601
|
67601
67610-42590-B1 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1# |
67610-42590-B1 |
US $662.48 |
||
|
67601
|
67601
67610-42610-B0 Board Sub-Assy, Front Door Trim, Rh[07.2003 - 11.2005] ACA21,23,CLA21,ZCA26 W(POWER WINDOW),DK.GRAY,TRIM1# |
67610-42610-B0 |
US $532.90 |
||
|
67601
|
67601
67610-42650-B0 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [07.2003 - 11.2005] ACA21,CLA21,ZCA26..EUR,GCC LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1# |
67610-42650-B0 |
US $532.90 |
||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
90467-09206 |
from US $0.49 |
||
|
67601L
|
67601L
90467-06133-B7
Clip(For Front Door Trim Board)
[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
90467-06133-B7 |
— | ||
| replacement | |||||
|
67601L
|
67601L
90467-06133-C0 Clip, Step Plate Cover[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
90467-06133-C0 |
from US $1.52 |
||
|
67601L
|
67601L
90467-06133-B8 Clip, Cowl Top Ventilator Louver[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
90467-06133-B8 |
US $3.52 |
||
|
67602
|
67602
67620-42530-B0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14 |
67620-42530-B0 |
US $531.44 |
||
|
67602
|
67602
67620-42530-B1 Board Sub-Assy, Front Door Trim, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15 |
67620-42530-B1 |
US $531.44 |
||
|
67602
|
67602
67620-42540-B0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14 |
67620-42540-B0 |
US $531.44 |
||
|
67602
|
67602
67620-42540-B1 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15 |
67620-42540-B1 |
US $531.44 |
||
|
67602
|
67602
67620-42590-B1 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1# |
67620-42590-B1 |
US $662.48 |
||
|
67602
|
67602
67620-42610-B0 Board Sub-Assy, Front Door Trim, Lh[07.2003 - 11.2005] ACA21,23,CLA21,ZCA26 W(POWER WINDOW),DK.GRAY,TRIM1# |
67620-42610-B0 |
US $532.90 |
||
|
67602
|
67602
67620-42650-B0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [07.2003 - 11.2005] ACA21,CLA21,ZCA26..EUR,GCC LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1# |
67620-42650-B0 |
US $532.90 |
||
|
68170
|
68170
68171-42040 Weatherstrip Assy, Front Door Glass, Inner[05.2000 - 07.2003] ACA21,CLA21,ZCA26 RH |
68171-42040 |
US $53.29 |
||
|
68170
|
68170
68172-42040
Weatherstrip Assy, Front Door Glass, Inner
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 LH |
68172-42040 |
— | ||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.72 |
||
|
9018906024
|
9018906024
90189-06024 GROMMET |
90189-06024 |
from US $1.56 |
||
|
9046709177
|
9046709177
90467-09177 CLIP |
90467-09177 |
from US $0.98 |
||
