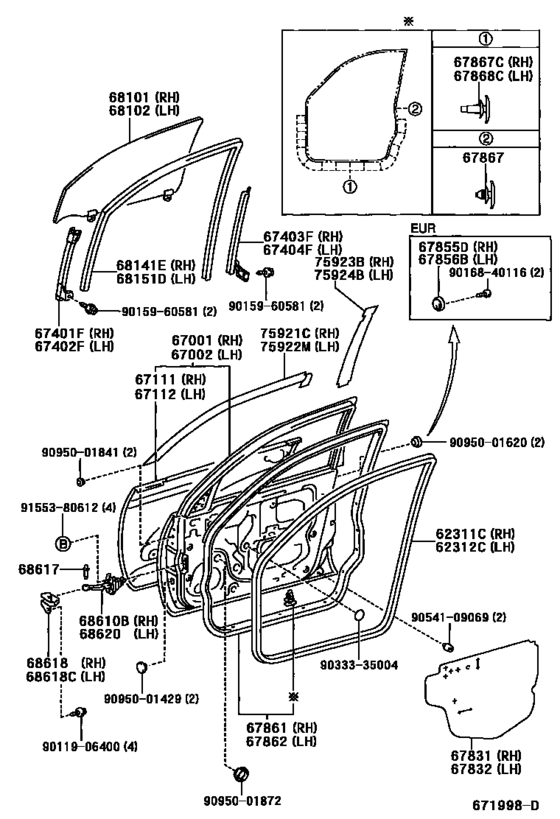

Front Door Panel & Glass ([05.2000 - ] (0005- )ACA21,23,CLA21,ZCA26) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62311C
|
62311C
62311-42030-B0 Weatherstrip, Front Door Opening Trim, Rh[05.2000 - 08.2002] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62311-42030-B0 |
US $138.32 |
||
| replacement | |||||
|
62311C
|
62311C
62311-42060-B0 Weatherstrip, Front Door Opening Trim, Rh[05.2000 - 08.2002] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62311-42060-B0 |
US $138.32 |
||
|
62311C
|
62311C
62311-42031-B0 Weatherstrip, Front Door Opening Trim, Rh[08.2002 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62311-42031-B0 |
US $138.32 |
||
| replacement | |||||
|
62311C
|
62311C
62311-42060-B0 Weatherstrip, Front Door Opening Trim, Rh[08.2002 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62311-42060-B0 |
US $138.32 |
||
|
62311C
|
62311C
62311-42060-B0 Weatherstrip, Front Door Opening Trim, Rh[07.2003 - 11.2005] ACA21,23,CLA21,ZCA26 DK.GRAY,TRIM1# |
62311-42060-B0 |
US $138.32 |
||
|
62312C
|
62312C
62312-42030-B0 Weatherstrip, Front Door Opening Trim, Lh[05.2000 - 08.2002] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62312-42030-B0 |
US $138.32 |
||
| replacement | |||||
|
62312C
|
62312C
62312-42060-B0 Weatherstrip, Front Door Opening Trim, Lh[05.2000 - 08.2002] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62312-42060-B0 |
US $138.32 |
||
|
62312C
|
62312C
62312-42031-B0 Weatherstrip, Front Door Opening Trim, Lh[08.2002 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62312-42031-B0 |
US $138.32 |
||
| replacement | |||||
|
62312C
|
62312C
62312-42060-B0 Weatherstrip, Front Door Opening Trim, Lh[08.2002 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62312-42060-B0 |
US $138.32 |
||
|
62312C
|
62312C
62312-42060-B0 Weatherstrip, Front Door Opening Trim, Lh[07.2003 - 11.2005] ACA21,23,CLA21,ZCA26 DK.GRAY,TRIM1# |
62312-42060-B0 |
US $138.32 |
||
|
67001
|
67001
67001-42080 Panel Sub-Assy, Front Door, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67001-42080 |
US $891.07 |
||
|
67002
|
67002
67002-42080 Panel Sub-Assy, Front Door, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67002-42080 |
US $891.07 |
||
|
67111
|
67111
67111-42040 Panel, Front Door, Outer RhFRONT DOOR, OUTER RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67111-42040 |
US $362.54 |
||
|
67112
|
67112
67112-42040 Panel, Front Door, Outer LhFRONT DOOR, OUTER LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67112-42040 |
US $362.54 |
||
|
67401F
|
67401F
67401-42020 Frame Sub-Assy, Front Door, Front Lower Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67401-42020 |
US $27.26 |
||
|
67402F
|
67402F
67402-42020
Frame Sub-Assy, Front Door, Front Lower Lh
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
67402-42020 |
— | ||
|
67403F
|
67403F
67403-42010 Frame Sub-Assy, Front Door, Rear Lower Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67403-42010 |
US $27.96 |
||
|
67404F
|
67404F
67404-42010 Frame Sub-Assy, Front Door, Rear Lower Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67404-42010 |
US $27.96 |
||
|
67831
|
67831
67831-42060 Cover, Front Door Service Hole, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67831-42060 |
US $13.54 |
||
|
67832
|
67832
67832-42010 Cover, Front Door Service Hole, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67832-42010 |
US $13.54 |
||
|
67861
|
67861
67861-42040 Weatherstrip, Front Door, Rh[05.2000 - 02.2002] ACA21,CLA21,ZCA26 |
67861-42040 |
US $99.01 |
||
| replacement | |||||
|
67861
|
67861
67861-42041 Weatherstrip, Front Door, Rh[05.2000 - 02.2002] ACA21,CLA21,ZCA26 |
67861-42041 |
US $99.01 |
||
|
67861
|
67861
67861-42041 Weatherstrip, Front Door, Rh[02.2002 - 07.2003] ACA21,CLA21,ZCA26 |
67861-42041 |
US $99.01 |
||
|
67862
|
67862
67862-42040 Weatherstrip, Front Door, Lh[05.2000 - 02.2002] ACA21,CLA21,ZCA26 |
67862-42040 |
US $99.01 |
||
| replacement | |||||
|
67862
|
67862
67862-42041 Weatherstrip, Front Door, Lh[05.2000 - 02.2002] ACA21,CLA21,ZCA26 |
67862-42041 |
US $99.01 |
||
|
67862
|
67862
67862-42041 Weatherstrip, Front Door, Lh[02.2002 - 07.2003] ACA21,CLA21,ZCA26 |
67862-42041 |
US $99.01 |
||
|
67867
|
67867
67867-48010 Retainer(For Front Door Weatherstrip)[07.2003 -] ACA21,23,CLA21,ZCA26 |
67867-48010 |
US $2.10 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67867-12150 |
from US $1.60 |
||
|
68101
|
68101
68101-42090 Glass Sub-Assy, Front Door, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=4.0,GREEN |
68101-42090 |
US $253.34 |
||
| replacement | |||||
|
68101
|
68101
68101-42120 Glass Sub-Assy, Front Door, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=4.0,GREEN |
68101-42120 |
US $251.89 |
||
|
68101
|
68101
68101-42120 Glass Sub-Assy, Front Door, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 *UVCT,T=4.0,GREEN |
68101-42120 |
US $251.89 |
||
|
68102
|
68102
68102-42090
Glass Sub-Assy, Front Door, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=4.0,GREEN |
68102-42090 |
— | ||
| replacement | |||||
|
68102
|
68102
68102-42120
Glass Sub-Assy, Front Door, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=4.0,GREEN |
68102-42120 |
— | ||
|
68102
|
68102
68102-42120
Glass Sub-Assy, Front Door, Lh
[07.2003 -] ACA21,23,CLA21,ZCA26 *UVCT,T=4.0,GREEN |
68102-42120 |
— | ||
|
68141E
|
68141E
68141-42050 Run, Front Door Glass, Rh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68141-42050 |
US $49.94 |
||
| replacement | |||||
|
68141E
|
68141E
68141-42070 Run, Front Door Glass, Rh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68141-42070 |
US $49.80 |
||
|
68141E
|
68141E
68141-42051 Run, Front Door Glass, Rh[06.2001 - 05.2002] ACA21,CLA21,ZCA26 |
68141-42051 |
US $49.94 |
||
| replacement | |||||
|
68141E
|
68141E
68141-42070 Run, Front Door Glass, Rh[06.2001 - 05.2002] ACA21,CLA21,ZCA26 |
68141-42070 |
US $49.80 |
||
|
68141E
|
68141E
68141-42052 Run, Front Door Glass, Rh[05.2002 - 07.2003] ACA21,CLA21,ZCA26 |
68141-42052 |
US $49.80 |
||
|
68151D
|
68151D
68151-42050 Run, Front Door Glass, Lh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68151-42050 |
US $49.94 |
||
| replacement | |||||
|
68151D
|
68151D
68151-42070
Run, Front Door Glass, Lh
[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68151-42070 |
— | ||
|
68151D
|
68151D
68151-42051 Run, Front Door Glass, Lh[06.2001 - 05.2002] ACA21,CLA21,ZCA26 |
68151-42051 |
US $49.94 |
||
| replacement | |||||
|
68151D
|
68151D
68151-42070
Run, Front Door Glass, Lh
[06.2001 - 05.2002] ACA21,CLA21,ZCA26 |
68151-42070 |
— | ||
|
68151D
|
68151D
68151-42052 Run, Front Door Glass, Lh[05.2002 - 07.2003] ACA21,CLA21,ZCA26 |
68151-42052 |
US $50.09 |
||
|
68610B
|
68610B
68610-42040 Check Assy, Front Door, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
68610-42040 |
from US $56.24 |
||
|
68617
|
68617
68617-20011 Pin(For Door Check)[05.2000 - 10.2001] ACA2#,CLA2#,ZCA2# |
68617-20011 |
from US $2.59 |
||
|
68617
|
68617
68617-53010 Pin, Front Door Check[10.2001 - 07.2003] ACA2#,CLA2#,ZCA2# |
68617-53010 |
US $2.27 |
||
|
68618
|
68618
68618-42010 Bracket, Front Door Check Arm, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
68618-42010 |
US $5.24 |
||
|
68618C
|
68618C
68618-42010 Bracket, Front Door Check Arm, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
68618-42010 |
US $5.24 |
||
|
68620
|
68620
68610-42040 Check Assy, Front Door, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
68610-42040 |
from US $56.24 |
||
|
75921C
|
75921C
75921-42020 Tape, Black Out, No.1 Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75921-42020 |
US $44.12 |
||
|
75922M
|
75922M
75922-42020 Tape, Black Out, No.1 Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75922-42020 |
US $44.12 |
||
|
75923B
|
75923B
75923-42020 Tape, Black Out, No.2 Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75923-42020 |
US $54.16 |
||
|
75924B
|
75924B
75924-42020 Tape, Black Out, No.2 Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75924-42020 |
US $54.16 |
||
|
9011906400
|
9011906400
90119-06400
New Genuine Part
|
90119-06400 |
— | ||
| replacement | |||||
|
9011906400
|
9011906400
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
|
9015960581
|
9015960581
90159-60581 New Genuine Part |
90159-60581 |
US $1.44 |
||
|
9016840116
|
9016840116
90168-40116 SCREW,TAPPING |
90168-40116 |
from US $0.72 |
||
| replacement | |||||
|
9016840116
|
9016840116
90080-16112 New Genuine Part |
90080-16112 |
US $2.97 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9054109069
|
9054109069
90541-09069 Cushion, Hood Bumper |
90541-09069 |
from US $2.38 |
||
|
9095001429
|
9095001429
90950-01429 PLUG |
90950-01429 |
US $1.76 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
