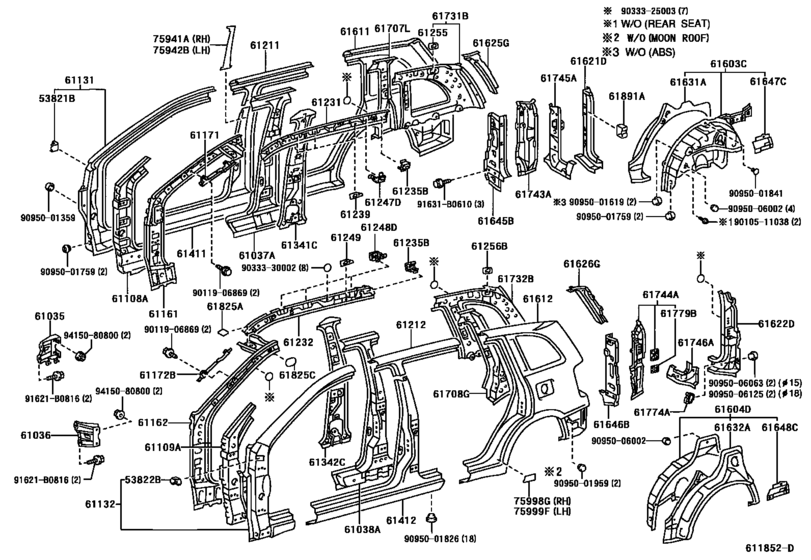

Side Member ([07.2003 - ] 5 DOOR (0307- )ACA21,23,CLA21,ZCA26) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-16010 Bracket, Front Fender, Rear Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
53821-16010 |
US $4.48 |
||
|
53822B
|
53822B
53821-16010 Bracket, Front Fender, Rear Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
53821-16010 |
US $4.48 |
||
|
61035
|
61035
61165-42020 Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61165-42020 |
US $41.93 |
||
|
61036
|
61036
61166-42020 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61166-42020 |
US $41.93 |
||
|
61037A
|
61037A
61303-42901 Reinforcement Sub-Assy, Center Body Pillar, Rh[05.2000 - 07.2001] ACA21,CLA21,ZCA26 |
61303-42901 |
US $366.91 |
||
| replacement | |||||
|
61037A
|
61037A
61303-42902 Reinforcement Sub-Assy, Center Body Pillar, Rh[05.2000 - 07.2001] ACA21,CLA21,ZCA26 |
61303-42902 |
US $366.91 |
||
|
61037A
|
61037A
61303-42902 Reinforcement Sub-Assy, Center Body Pillar, Rh[07.2001 - 07.2003] ACA21,CLA21,ZCA26 |
61303-42902 |
US $366.91 |
||
|
61037A
|
61037A
61303-42903 Reinforcement Sub-Assy, Center Body Pillar, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61303-42903 |
US $366.91 |
||
|
61038A
|
61038A
61304-42901 Reinforcement Sub-Assy, Center Body Pillar, Lh[05.2000 - 07.2001] ACA21,CLA21,ZCA26 |
61304-42901 |
US $366.91 |
||
| replacement | |||||
|
61038A
|
61038A
61304-42902 Reinforcement Sub-Assy, Center Body Pillar, Lh[05.2000 - 07.2001] ACA21,CLA21,ZCA26 |
61304-42902 |
US $366.91 |
||
|
61038A
|
61038A
61304-42902 Reinforcement Sub-Assy, Center Body Pillar, Lh[07.2001 - 07.2003] ACA21,CLA21,ZCA26 |
61304-42902 |
US $366.91 |
||
|
61038A
|
61038A
61304-42903 Reinforcement Sub-Assy, Center Body Pillar, Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61304-42903 |
US $366.91 |
||
|
61108A
|
61108A
61108-42050 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61108-42050 |
US $160.16 |
||
|
61109A
|
61109A
61109-42050 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61109-42050 |
US $160.16 |
||
|
61131
|
61131
61110-42160 Pillar, Front Body, Upper Outer Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN |
61110-42160 |
US $336.34 |
||
|
61132
|
61132
61120-42140 Pillar, Front Body, Upper Outer Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61120-42140 |
US $336.34 |
||
|
61161
|
61161
61023-42090 Pillar, Front Body, Upper Inner Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61023-42090 |
US $291.20 |
||
|
61161
|
61161
61023-42100 Pillar, Front Body, Upper Inner Rh[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2# |
61023-42100 |
US $291.20 |
||
|
61162
|
61162
61024-42090 Pillar, Front Body, Upper Inner Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61024-42090 |
US $291.20 |
||
|
61162
|
61162
61024-42100 Pillar, Front Body, Upper Inner Lh[07.2003 - 11.2005] ACA2#,CLA2#,ZCA2# |
61024-42100 |
US $291.20 |
||
|
61171
|
61171
61171-42010 Retainer, Front Pillar, Lower Inner Rh[07.2003 -] ACA2#,CLA2#,ZCA2# |
61171-42010 |
US $19.66 |
||
|
61172B
|
61172B
61172-42010 Retainer, Front Pillar, Lower Inner Lh[07.2003 -] ACA2#,CLA2#,ZCA2# |
61172-42010 |
US $19.66 |
||
|
61211
|
61211
61211-42050 Rail, Roof Side, Outer Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61211-42050 |
US $117.94 |
||
|
61212
|
61212
61212-42050 Rail, Roof Side, Outer Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61212-42050 |
US $117.94 |
||
|
61231
|
61231
61231-42090 Rail, Roof Side, Inner Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61231-42090 |
US $104.83 |
||
|
61231
|
61231
61231-42120 Rail, Roof Side, Inner Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61231-42120 |
US $103.38 |
||
|
61232
|
61232
61232-42090 Rail, Roof Side, Inner Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61232-42090 |
US $104.83 |
||
|
61232
|
61232
61232-42120 Rail, Roof Side, Inner Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61232-42120 |
US $103.38 |
||
|
61235B
|
61235B
61235-42010 Bracket, Assist Grip[07.2003 -] ACA21,23,CLA21,ZCA26 |
61235-42010 |
US $24.46 |
||
|
61239
|
61239
61239-42010
Retainer, Roof Side Rail Outer, Rh
[07.2003 -] ACA21,23,CLA21,ZCA26..ARL,EUR,GCC W(SRS CURTAIN SHIELD AIR BAG) |
61239-42010 |
— | ||
|
61239
|
61239
61239-42020 Retainer, Roof Side Rail Outer, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61239-42020 |
US $7.43 |
||
|
61247D
|
61247D
61247-42020 Bracket, Assist Grip, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61247-42020 |
US $8.30 |
||
|
61247D
|
61247D
61247-42030 Bracket, Assist Grip, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61247-42030 |
US $11.79 |
||
|
61248D
|
61248D
61247-42020 Bracket, Assist Grip, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61247-42020 |
US $8.30 |
||
|
61248D
|
61248D
61247-42030 Bracket, Assist Grip, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61247-42030 |
US $11.79 |
||
|
61249
|
61249
61239-42020 Retainer, Roof Side Rail Outer, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61239-42020 |
US $7.43 |
||
|
61249
|
61249
61249-42010 Retainer, Roof Side Rail, Outer Lh[07.2003 -] ACA21,23,CLA21,ZCA26..ARL,EUR,GCC W(SRS CURTAIN SHIELD AIR BAG) |
61249-42010 |
US $8.15 |
||
|
61255
|
61255
61255-32010 Plate, Roof Side Rail, Outer Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61255-32010 |
US $4.80 |
||
|
61256B
|
61256B
61255-32010 Plate, Roof Side Rail, Outer Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61255-32010 |
US $4.80 |
||
|
61341C
|
61341C
61341-42900 Pillar, Center Body, Inner Upper Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61341-42900 |
US $232.96 |
||
|
61342C
|
61342C
61342-42900 Pillar, Center Body, Inner Upper Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61342-42900 |
US $232.96 |
||
|
61411
|
61411
61411-42120 Panel, Rocker, Outer Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61411-42120 |
US $435.34 |
||
|
61412
|
61412
61412-42130 Panel, Rocker, Outer Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61412-42130 |
US $435.34 |
||
|
61603C
|
61603C
61603-42905 Panel Sub-Assy, Quarter Wheel House, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61603-42905 |
US $436.80 |
||
|
61604D
|
61604D
61604-42904 Panel Sub-Assy, Quarter Wheel House, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61604-42904 |
US $435.34 |
||
| replacement | |||||
|
61604D
|
61604D
61604-42905 Panel Sub-Assy, Quarter Wheel House, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61604-42905 |
US $479.02 |
||
|
61604D
|
61604D
61604-42905 Panel Sub-Assy, Quarter Wheel House, Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61604-42905 |
US $479.02 |
||
|
61611
|
61611
61610-42190 Panel, Quarter, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61610-42190 |
US $1,027.94 |
||
|
61611
|
61611
61610-42210 Panel, Quarter, Rh[08.2002 - 07.2003] ACA21,CLA21,ZCA26 W(QUARTER OUTSIDE MOULDING) |
61610-42210 |
US $1,027.94 |
||
|
61612
|
61612
61620-42230 Panel, Quarter, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61620-42230 |
US $1,027.94 |
||
|
61612
|
61612
61620-42250 Panel, Quarter, Lh[08.2002 - 07.2003] ACA21,CLA21,ZCA26 W(QUARTER OUTSIDE MOULDING) |
61620-42250 |
US $1,027.94 |
||
|
61621D
|
61621D
61621-42030 Trough, Back Door Opening, Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61621-42030 |
US $119.39 |
||
|
61622D
|
61622D
61622-42030 Trough, Back Door Opening, Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61622-42030 |
US $119.39 |
||
|
61625G
|
61625G
61625-42020 Extension, Quarter Panel, Rear Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61625-42020 |
US $34.80 |
||
|
61626G
|
61626G
61626-42020 Extension, Quarter Panel, Rear Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61626-42020 |
US $34.80 |
||
|
61631A
|
61631A
61631-42050 Panel, Quarter Wheel House, Outer Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61631-42050 |
US $160.16 |
||
|
61632A
|
61632A
61606-42900
Panel, Quarter Wheel House, Outer Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61606-42900 |
— | ||
|
61645B
|
61645B
61645-42050 Gusset, Quarter Wheel House, Rear Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61645-42050 |
US $93.18 |
||
|
61646B
|
61646B
61646-42050 Gusset, Quarter Wheel House, Rear Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61646-42050 |
US $91.73 |
||
|
61647C
|
61647C
61647-42030 Reinforcement, Wheel House, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61647-42030 |
US $16.89 |
||
|
61648C
|
61648C
61648-42030 Reinforcement, Wheel House, Lh[05.2000 - 02.2003] ACA21,CLA21,ZCA26 |
61648-42030 |
US $16.45 |
||
| replacement | |||||
|
61648C
|
61648C
61648-42031 Reinforcement, Wheel House, Lh[05.2000 - 02.2003] ACA21,CLA21,ZCA26 |
61648-42031 |
US $16.45 |
||
|
61648C
|
61648C
61648-42031 Reinforcement, Wheel House, Lh[02.2003 - 07.2003] ACA21,CLA21,ZCA26 |
61648-42031 |
US $16.45 |
||
|
61648C
|
61648C
61648-42040 Reinforcement, Wheel House, Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61648-42040 |
US $19.51 |
||
|
61707L
|
61707L
61707-42020 Panel Sub-Assy, Roof Side, Inner Front Rh[05.2000 - 03.2003] ACA21,CLA21,ZCA26 |
61707-42020 |
US $168.90 |
||
| replacement | |||||
|
61707L
|
61707L
61707-42030 Panel Sub-Assy, Roof Side, Inner Front Rh[05.2000 - 03.2003] ACA21,CLA21,ZCA26 |
61707-42030 |
US $165.98 |
||
|
61707L
|
61707L
61707-42021 Panel Sub-Assy, Roof Side, Inner Front Rh[03.2003 - 07.2003] ACA21,CLA21,ZCA26 |
61707-42021 |
US $168.90 |
||
| replacement | |||||
|
61707L
|
61707L
61707-42030 Panel Sub-Assy, Roof Side, Inner Front Rh[03.2003 - 07.2003] ACA21,CLA21,ZCA26 |
61707-42030 |
US $165.98 |
||
|
61707L
|
61707L
61707-42030 Panel Sub-Assy, Roof Side, Inner Front Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61707-42030 |
US $165.98 |
||
|
61708G
|
61708G
61708-42020 Panel Sub-Assy, Roof Side, Inner Front Lh[05.2000 - 03.2003] ACA21,CLA21,ZCA26 |
61708-42020 |
US $168.90 |
||
| replacement | |||||
|
61708G
|
61708G
61708-42050 Panel Sub-Assy, Roof Side, Inner Front Lh[05.2000 - 03.2003] ACA21,CLA21,ZCA26 |
61708-42050 |
US $165.98 |
||
|
61708G
|
61708G
61708-42021 Panel Sub-Assy, Roof Side, Inner Front Lh[03.2003 - 07.2003] ACA21,CLA21,ZCA26 |
61708-42021 |
US $168.90 |
||
| replacement | |||||
|
61708G
|
61708G
61708-42050 Panel Sub-Assy, Roof Side, Inner Front Lh[03.2003 - 07.2003] ACA21,CLA21,ZCA26 |
61708-42050 |
US $165.98 |
||
|
61708G
|
61708G
61708-42050 Panel Sub-Assy, Roof Side, Inner Front Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61708-42050 |
US $165.98 |
||
|
61731B
|
61731B
61731-42900 Panel, Roof Side, Inner Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61731-42900 |
US $275.18 |
||
|
61731B
|
61731B
61731-42902 Panel, Roof Side, Inner Rh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61731-42902 |
US $165.98 |
||
|
61732B
|
61732B
61732-42900 Panel, Roof Side, Inner Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61732-42900 |
US $275.18 |
||
|
61732B
|
61732B
61732-42902 Panel, Roof Side, Inner Lh[07.2003 -] ACA21,23,CLA21,ZCA26 |
61732-42902 |
US $165.98 |
||
|
61743A
|
61743A
61743-42010 Reinforcement, Back Door Opening Side, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61743-42010 |
US $96.10 |
||
|
61744A
|
61744A
61744-42900 Reinforcement, Back Door Opening Side, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61744-42900 |
US $100.46 |
||
|
61745A
|
61745A
61745-42010 Reinforcement, Back Door Opening, Lower Rh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61745-42010 |
US $91.73 |
||
|
61746A
|
61746A
61746-42010 Reinforcement, Back Door Opening, Lower Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61746-42010 |
US $53.73 |
||
|
61774A
|
61774A
61774-42010 Patch, Back Door Opening, Lower Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61774-42010 |
US $16.02 |
||
|
61779B
|
61779B
61779-42010 Plate, Back Door Opening, Lower Lh[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
61779-42010 |
US $6.41 |
||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
61825-12010 |
US $2.04 |
||
|
61825C
|
61825C
61825-42010 Pad, Noise Shutter, No.2[07.2003 -] ACA2#,CLA2#,ZCA2# |
61825-42010 |
US $2.04 |
||
| replacement | |||||
|
61825C
|
61825C
61824-12120 Pad, Noise Shutter, No.2[07.2003 -] ACA2#,CLA2#,ZCA2# |
61824-12120 |
US $10.83 |
||
|
61891A
|
61891A
61891-42010 Retainer, Back Door Upper Hinge, Rh[07.2003 -] ACA2#,CLA2#,ZCA2# |
61891-42010 |
US $31.01 |
||
|
75941A
|
75941A
75941-42010 Stripe, Center Pillar, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75941-42010 |
US $58.39 |
||
|
75942B
|
75942B
75942-42010 Stripe, Center Pillar, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75942-42010 |
US $58.39 |
||
|
75998G
|
75998G
75998-42010 Stripe, Quarter, Lower Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR |
75998-42010 |
US $17.33 |
||
|
75999F
|
75999F
75999-42010 Stripe, Quarter, Lower Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR |
75999-42010 |
US $17.33 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9010511038
|
9010511038
90105-11038 BOLTWASHER BASED |
90105-11038 |
US $1.60 |
||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $0.96 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9095001359
|
9095001359
90950-01359 New Genuine Part |
90950-01359 |
US $2.33 |
||
|
9095001619
|
9095001619
90950-01619 New Genuine Part |
90950-01619 |
US $5.76 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095001959
|
9095001959
90950-01959 Cover, Console Box Hole |
90950-01959 |
from US $1.92 |
||
|
9095006002
|
9095006002
90950-06002 Cover, Front Floor Hole |
90950-06002 |
US $0.96 |
||
|
9095006063
|
9095006063
90950-06063 Protector, Rear Body, No.1 |
90950-06063 |
from US $1.92 |
||
|
9095006125
|
9095006125
90950-06125 TAPE SEAL |
90950-06125 |
from US $1.99 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.84 |
||
