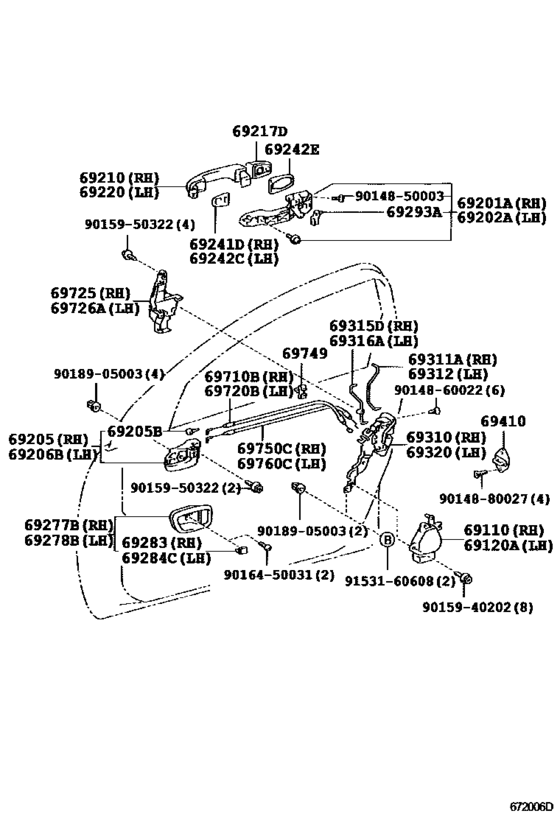

Front Door Lock & Handle ([05.2000 - ] (0005- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- ZCA26
- grade
- AERO
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 07.2003
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69110
|
69110
69110-42120 Actuator Assy, Front Door Lock, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69110-42120 |
from US $109.96 |
||
|
69120A
|
69120A
69120-42070 Actuator Assy, Front Door Lock, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
69120-42070 |
US $117.06 |
||
|
69201A
|
69201A
69201-42010 Frame Sub-Assy, Front Door Outside Handle, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69201-42010 |
US $71.64 |
||
| replacement | |||||
|
69201A
|
69201A
69201-52010 Frame Sub-Assy, Front Door Outside Handle, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69201-52010 |
US $45.30 |
||
|
69202A
|
69202A
69202-42010 Frame Sub-Assy, Front Door Outside Handle, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
69202-42010 |
US $71.64 |
||
| replacement | |||||
|
69202A
|
69202A
69202-52010 Frame Sub-Assy, Front Door Outside Handle, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
69202-52010 |
US $45.30 |
||
|
69205
|
69205
69205-30150-B5 Handle Sub-Assy, Front Door Inside, Rh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69205-30150-B5 |
US $41.06 |
||
| replacement | |||||
|
69205
|
69205
69205-30150-B2 Handle Sub-Assy, Front Door Inside, Rh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69205-30150-B2 |
US $39.84 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[05.2000 - 07.2003] ACA2#,ZCA2# |
90541-04014 |
from US $1.60 |
||
|
69206B
|
69206B
69206-30150-B5 Handle Sub-Assy, Front Door Inside, Lh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69206-30150-B5 |
US $41.06 |
||
|
69210
|
69210
69211-12220-A7 Handle Assy, Front Door, Outside Rh[02.2001 - 07.2003] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69211-12220-A7 |
US $35.53 |
||
|
69210
|
69210
69211-12220-B6 Handle Assy, Front Door, Outside Rh[02.2001 - 07.2003] ACA2#,ZCA2# SILVER ME.,1D4 |
69211-12220-B6 |
US $29.56 |
||
|
69210
|
69210
69211-12220-C1 Handle Assy, Front Door, Outside Rh[02.2001 - 07.2003] ACA2#,ZCA2# BLACK,202 |
69211-12220-C1 |
US $37.99 |
||
|
69210
|
69210
69211-12220-F0 Handle Assy, Front Door, Outside Rh[08.2001 - 07.2003] ACA2#,ZCA2# CHAMPAGNE ME.,586 |
69211-12220-F0 |
US $29.56 |
||
|
69210
|
69210
69211-42020-A1 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69211-42020-A1 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69211-12220-A7 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69211-12220-A7 |
US $35.53 |
||
|
69210
|
69210
69211-42020-B0 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# SILVER ME.,1D4 |
69211-42020-B0 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69211-12220-B6 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# SILVER ME.,1D4 |
69211-12220-B6 |
US $29.56 |
||
|
69210
|
69210
69211-42020-C0 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# BLACK,202 |
69211-42020-C0 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69211-12220-C1 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# BLACK,202 |
69211-12220-C1 |
US $37.99 |
||
|
69217D
|
69217D
69217-42020-A1 Cover, Front Door Outside Handle[05.2000 - 07.2003] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69217-42020-A1 |
US $9.03 |
||
|
69217D
|
69217D
69217-42020-B0 Cover, Front Door Outside Handle[05.2000 - 07.2003] ACA2#,ZCA2# SILVER ME.,1D4 |
69217-42020-B0 |
US $7.13 |
||
| replacement | |||||
|
69217D
|
69217D
69217-42020-P0 Cover, Front Door Outside Handle[05.2000 - 07.2003] ACA2#,ZCA2# SILVER ME.,1D4 |
69217-42020-P0 |
US $6.40 |
||
|
69217D
|
69217D
69217-42020-C0 Cover, Front Door Outside Handle[05.2000 - 07.2003] ACA2#,ZCA2# BLACK,202 |
69217-42020-C0 |
US $5.97 |
||
|
69217D
|
69217D
69217-42020-F0 Cover, Front Door Outside Handle[08.2001 - 07.2003] ACA2#,ZCA2# CHAMPAGNE ME.,586 |
69217-42020-F0 |
US $7.28 |
||
|
69220
|
69220
69211-12220-A7 Handle Assy, Front Door, Outside Rh[02.2001 - 07.2003] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69211-12220-A7 |
US $35.53 |
||
|
69220
|
69220
69211-12220-B6 Handle Assy, Front Door, Outside Rh[02.2001 - 07.2003] ACA2#,ZCA2# SILVER ME.,1D4 |
69211-12220-B6 |
US $29.56 |
||
|
69220
|
69220
69211-12220-C1 Handle Assy, Front Door, Outside Rh[02.2001 - 07.2003] ACA2#,ZCA2# BLACK,202 |
69211-12220-C1 |
US $37.99 |
||
|
69220
|
69220
69211-12220-F0 Handle Assy, Front Door, Outside Rh[08.2001 - 07.2003] ACA2#,ZCA2# CHAMPAGNE ME.,586 |
69211-12220-F0 |
US $29.56 |
||
|
69220
|
69220
69211-42020-A1 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69211-42020-A1 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69211-12220-A7 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# WHITE PEARL CS.,064 |
69211-12220-A7 |
US $35.53 |
||
|
69220
|
69220
69211-42020-B0 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# SILVER ME.,1D4 |
69211-42020-B0 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69211-12220-B6 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# SILVER ME.,1D4 |
69211-12220-B6 |
US $29.56 |
||
|
69220
|
69220
69211-42020-C0 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# BLACK,202 |
69211-42020-C0 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69211-12220-C1 Handle Assy, Front Door, Outside Rh[05.2000 - 02.2001] ACA2#,ZCA2# BLACK,202 |
69211-12220-C1 |
US $37.99 |
||
|
69241D
|
69241D
69241-42020 Pad, Front Door Outside Handle, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69241-42020 |
from US $6.40 |
||
|
69242C
|
69242C
69241-42020 Pad, Front Door Outside Handle, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69241-42020 |
from US $6.40 |
||
|
69242E
|
69242E
69242-42010 Pad, Front Door Outside Handle, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
69242-42010 |
from US $6.34 |
||
|
69277B
|
69277B
69277-30150-B6 Bezel, Front Door Inside Handle, Rh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69277-30150-B6 |
US $13.10 |
||
| replacement | |||||
|
69277B
|
69277B
69277-30150-B2 Bezel, Front Door Inside Handle, Rh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69277-30150-B2 |
US $8.15 |
||
|
69278B
|
69278B
69278-30080-B6 Bezel, Front Door Inside Handle, Lh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69278-30080-B6 |
US $13.10 |
||
| replacement | |||||
|
69278B
|
69278B
69278-30080-B2 Bezel, Front Door Inside Handle, Lh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X BLUE GRAY,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO BLUE GRAY,TRIM1# |
69278-30080-B2 |
US $8.15 |
||
|
69283
|
69283
69283-30040-B3
Plug, Front Door Inside Handle Bezel, Rh
[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X MD. MOON MIST,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO MD. MOON MIST,TRIM1# |
69283-30040-B3 |
— | ||
| replacement | |||||
|
69283
|
69283
69283-30040-P0 Plug, Front Door Inside Handle Bezel (DK.GRAY)[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X MD. MOON MIST,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO MD. MOON MIST,TRIM1# |
69283-30040-P0 |
US $2.27 |
||
|
69284C
|
69284C
69284-30040-B3 Plug, Front Door Inside Handle Bezel, Lh[05.2000 - 07.2003] ACA20,ZCA25..WIDE,X MD.MOON MIST,TRIM14,15; ACA21,ZCA26;ACA20,ZCA25..AERO MD.MOON MIST,TRIM1# |
69284-30040-B3 |
US $2.62 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[05.2000 - 07.2003] ACA2#,ZCA2# 右側 |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[05.2000 - 07.2003] ACA2#,ZCA2# 左側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-42360 Lock Assy, Front Door, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69310-42360 |
US $89.11 |
||
|
69311A
|
69311A
69311-42120 Rod, Front Door Lock Open, Rh[05.2000 - 07.2003] ACA21,ZCA26 |
69311-42120 |
US $9.46 |
||
|
69312
|
69312
69312-42120 Rod, Front Door Lock Open, Lh[05.2000 - 07.2003] ACA21,ZCA26 |
69312-42120 |
US $9.46 |
||
|
69315D
|
69315D
69315-42080 Link, Front Door Outside Locking, Rh[05.2000 - 07.2003] ACA21,ZCA26 |
69315-42080 |
US $9.46 |
||
|
69316A
|
69316A
69316-42080 Link, Front Door Outside Locking, Lh[05.2000 - 07.2003] ACA21,ZCA26 |
69316-42080 |
US $9.46 |
||
|
69320
|
69320
69320-42350 Lock Assy, Front Door, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
69320-42350 |
US $91.73 |
||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[05.2000 - 07.2003] ACA2#,ZCA2# |
69410-20110 |
US $15.96 |
||
|
69710B
|
69710B
69710-42110 Cable Assy, Front Door Lock Remote Control, Rh[05.2000 - 07.2003] ACA21,ZCA26 |
69710-42110 |
US $23.59 |
||
|
69720B
|
69720B
69710-42110 Cable Assy, Front Door Lock Remote Control, Rh[05.2000 - 07.2003] ACA21,ZCA26 |
69710-42110 |
US $23.59 |
||
|
69725
|
69725
69725-42120 Protector, Front Door Inside Locking Link, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
69725-42120 |
US $35.82 |
||
|
69726A
|
69726A
69726-42060 Protecter, Front Door Inside Locking Link, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
69726-42060 |
US $35.82 |
||
|
69749
|
69749
69749-32040 Clamp, Front Door Lock Link[05.2000 - 07.2003] ACA21,ZCA26 |
69749-32040 |
US $3.36 |
||
|
69750C
|
69750C
69750-42120 Cable Assy, Front Door Inside Locking, Rh[05.2000 - 07.2003] ACA21,ZCA26 |
69750-42120 |
US $25.04 |
||
|
69760C
|
69760C
69760-42120 Cable Assy, Front Door Inside Locking Lh[05.2000 - 07.2003] ACA21,ZCA26 |
69760-42120 |
US $26.38 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.68 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9153160608
|
9153160608
91531-60608 BOLT FLANGE |
91531-60608 |
from US $0.96 |
||
