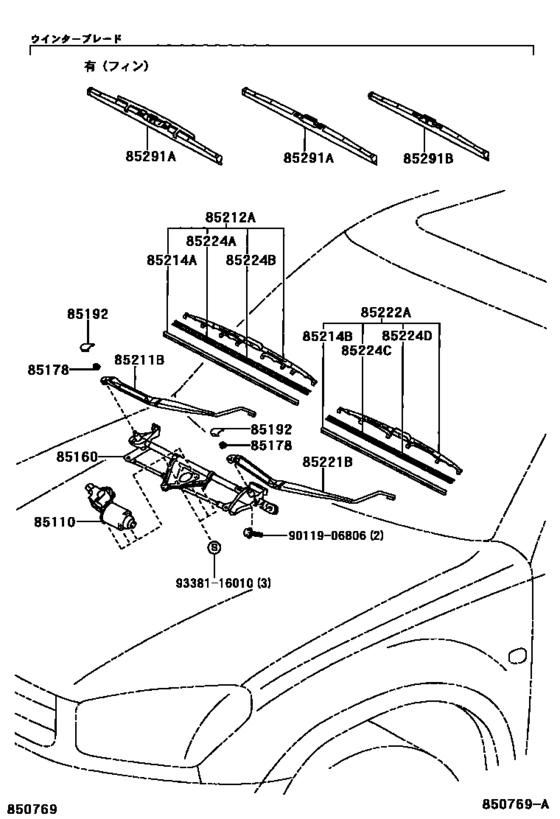

Windshield Wiper ([05.2000 - 07.2003] (0005-0307)) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- ZCA26
- grade
- AERO
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- RAV4 J/L
- From
- 05.2000
- To
- 07.2003
- Vehicle Model
- RAV4 J/L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-42100
Motor Assy, Windshield Wiper
[05.2000 - 07.2003] ACA2#,ZCA2# |
85110-42100 |
— | ||
|
85110
|
85110
85110-42110
Motor Assy, Windshield Wiper
[05.2000 - 07.2003] ACA2#,ZCA2# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-42110 |
— | ||
|
85160
|
85160
85150-42070
Link Assy, Windshield Wiper
[05.2000 - 07.2003] ACA2#,ZCA2# |
85150-42070 |
— | ||
|
85160
|
85160
85150-42100
Link Assy, Windshield Wiper
[05.2000 - 07.2003] ACA2#,ZCA2# ｶﾝﾚｲﾁ ｼﾖｳ |
85150-42100 |
— | ||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[05.2000 - 07.2003] ACA2#,ZCA2# |
90179-10223 |
US $1.60 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[05.2000 - 07.2003] ACA2#,ZCA2# |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-42070 Arm, Front Wiper, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
85211-42070 |
US $66.22 |
||
|
85212A
|
85212A
85212-33190
Blade, Fr Wiper, Rh
[07.2002 - 07.2003] ACA2#,ZCA2# |
85212-33190 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[07.2002 - 07.2003] ACA2#,ZCA2# |
85212-30370 |
US $51.07 |
||
|
85212A
|
85212A
85212-42090 Blade, Fr Wiper, Rh[05.2000 - 07.2002] ACA2#,ZCA2# |
85212-42090 |
US $62.03 |
||
| replacement | |||||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[05.2000 - 07.2002] ACA2#,ZCA2# |
85212-30370 |
US $51.07 |
||
|
85214A
|
85214A
85214-30290 Rubber, Wiper, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
85214-30290 |
US $13.98 |
||
| replacement | |||||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
85214-50100 |
from US $13.34 |
||
|
85214B
|
85214B
85214-17050 Rubber, Wiper, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
85214-17050 |
US $12.96 |
||
| replacement | |||||
|
85214B
|
85214B
85214-53041 Rubber, Wiper, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
85214-53041 |
from US $11.13 |
||
|
85221B
|
85221B
85221-42070 Arm, Front Wiper, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
85221-42070 |
US $69.36 |
||
|
85222A
|
85222A
85222-17050 Blade, Fr Wiper, Lh[05.2000 - 07.2002] ACA2#,ZCA2# |
85222-17050 |
US $40.19 |
||
| replacement | |||||
|
85222A
|
85222A
85222-48111 Blade, Fr Wiper, LhLH side [05.2000 - 07.2002] ACA2#,ZCA2# |
85222-48111 |
US $41.95 |
||
|
85222A
|
85222A
85222-48030
Blade Assy, Rear Wiper
[07.2002 - 07.2003] ACA2#,ZCA2# |
85222-48030 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-48111 Blade, Fr Wiper, LhLH side [07.2002 - 07.2003] ACA2#,ZCA2# |
85222-48111 |
US $41.95 |
||
|
85224A
|
85224A
85224-44010 Plate, Wiper Rubber Backing, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
85224-44010 |
US $6.03 |
||
|
85224B
|
85224B
85224-44010 Plate, Wiper Rubber Backing, No.1[05.2000 - 07.2003] ACA2#,ZCA2# |
85224-44010 |
US $6.03 |
||
|
85224C
|
85224C
85224-35040 Plate, Wiper Rubber Backing, No.3[05.2000 - 07.2003] ACA2#,ZCA2# |
85224-35040 |
US $5.20 |
||
|
85224D
|
85224D
85224-35040 Plate, Wiper Rubber Backing, No.3[05.2000 - 07.2003] ACA2#,ZCA2# |
85224-35040 |
US $5.20 |
||
|
85291A
|
85291A
85291-13030 Blade, Front Wiper, Winter, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
85291-13030 |
US $106.29 |
||
| replacement | |||||
|
85291A
|
85291A
85291-24090 Blade, Front Wiper, Winter, Rh[05.2000 - 07.2003] ACA2#,ZCA2# |
85291-24090 |
US $51.72 |
||
|
85291A
|
85291A
85291-13040 Blade, Front Wiper, Winter, Rh[05.2000 - 07.2003] ACA2#,ZCA2# ｱﾘ(ﾌｲﾝ) |
85291-13040 |
US $128.13 |
||
| replacement | |||||
|
85291A
|
85291A
85291-24100 Blade, Front Wiper, Winter, Rh[05.2000 - 07.2003] ACA2#,ZCA2# ｱﾘ(ﾌｲﾝ) |
85291-24100 |
US $102.12 |
||
|
85291B
|
85291B
85291-42010 Blade, Front Wiper, Winter, Lh[05.2000 - 07.2003] ACA2#,ZCA2# |
85291-42010 |
US $78.62 |
||
| replacement | |||||
|
85291B
|
85291B
85291-33050 Blade Assy, Windshield Wiper[05.2000 - 07.2003] ACA2#,ZCA2# |
85291-33050 |
from US $63.84 |
||
|
9011906806
|
9011906806
90119-06806 New Genuine Part |
90119-06806 |
US $1.44 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $0.87 |
||
