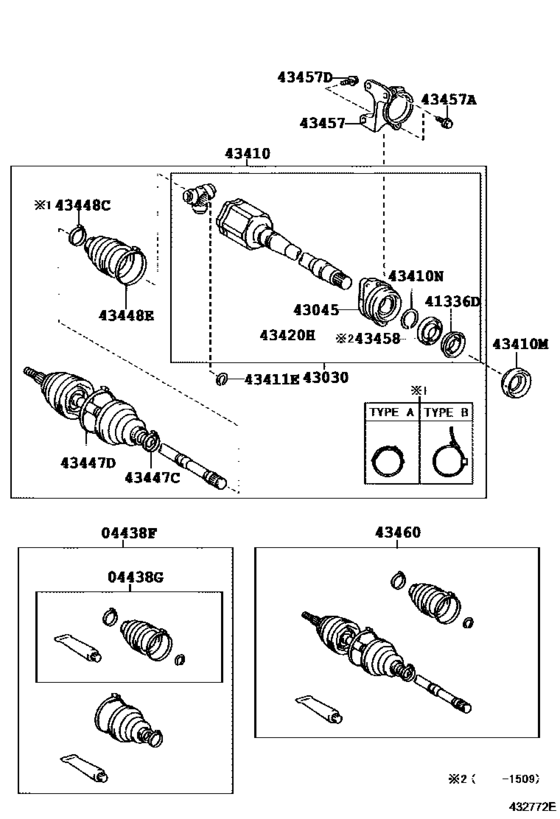

Front Drive Shaft ([12.2012 - ] RH (1212- )ASA42,ZSA42..CVT,MTM) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZSA42
- grade
- M
- ENGINE
- 3ZRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- A
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-42120 Boot Kit, Front Drive Shaft, In & Outboard, Rh[10.2015 -] ZSA42..CVT |
04427-42120 |
US $90.27 |
||
|
04438G
|
04438G
04437-33070 Boot Kit, Front Drive Shaft Inboard Joint, Rh[10.2015 -] ASA42,AVA4#,ZSA42..ATM,CVT |
04437-33070 |
from US $55.91 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[10.2015 -] ZSA42..CVT..G;ZSA42..LHD..6F..M;ZSA42..6F..G..GEN;ASA42,AVA4#..6FC,A;ZSA42..CVT..M ..GEN;ZSA42..(M,X)..(ARL,SA);ASA42,ZSA42..(CVT,MTM)..X..(GCC,GEN) |
41336-12020 |
from US $3.29 |
||
|
43030
|
43030
43030-44021 Joint Assy, Front Drive Inboard, Rh[10.2015 -] ZSA42..CVT..G;ZSA42..LHD..6F..M;ZSA42..6F..G..GEN;ZSA42..CVT..M..GEN;ZSA42..(M,X). .(ARL,SA);ASA42,ZSA42..(CVT,MTM)..X..(GCC,GEN) |
43030-44021 |
US $276.64 |
||
|
43045
|
43045
43045-64020 Case Sub Assy, Drive Shaft Bearing[10.2015 -] ZSA42..CVT..G;ZSA42..LHD..6F..M;ZSA42..6F..G..GEN;ZSA42..CVT..M..GEN;ZSA42..(M,X). .(ARL,SA);ASA42,ZSA42..(CVT,MTM)..X..(GCC,GEN) |
43045-64020 |
from US $48.49 |
||
|
43410
|
43410
43410-42270 Shaft Assy, Front Drive, Rh[10.2015 -] ZSA42..CVT |
43410-42270 |
US $675.58 |
||
|
43410M
|
43410M
90311-40041 Oil Seal, Front Drive Shaft, Rh[10.2015 -] ZSA42..CVT |
90311-40041 |
from US $4.27 |
||
|
43410N
|
43410N
90520-38015 Ring, Shaft Snap(For Rear Drive Shaft)[10.2015 -] ZSA42..CVT..G;ZSA42..LHD..6F..M;ZSA42..6F..G..GEN;ASA42,AVA4#..6FC,A;ZSA42..CVT..M ..GEN;ZSA42..(M,X)..(ARL,SA);ASA42,ZSA42..(CVT,MTM)..X..(GCC,GEN) |
90520-38015 |
from US $1.24 |
||
|
43411E
|
43411E
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[10.2015 -] ZSA44..6F,B;ZSA42..CVT..G;ZSA42..X..GEN;ASA44..X..ARL;ZSA44..A..(M,X);ZSA42..LHD.. 6F..M;ZSA42..6F..G..GEN;ALA49,ASA42..6F..X;ASA44..6FC..(G,M)..ARL;ZSA42..(M,X)..(A RL,SA);ALA49,ASA42,AVA4#..6FC,A;ASA44..(G,X)..(GCC,GEN,SA);ASA44,ZSA42..(ATM, |
43425-28010 |
US $0.41 |
||
|
43420H
|
43420H
90311-50050 Oil Seal, Front Drive Shaft, Lh[10.2015 -] ZSA44..B;ZSA42..CVT;ZSA44..A..(M,X) |
90311-50050 |
from US $4.82 |
||
|
43447C
|
43447C
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [10.2015 -] ZSA44..B;ZSA42..CVT;ZSA44..A..(M,X) |
42345-42100 |
US $2.75 |
||
|
43447D
|
43447D
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [10.2015 -] ZSA44..B;ZSA42..CVT;ZSA44..A..(M,X) |
42345-42090 |
from US $4.27 |
||
|
43448C
|
43448C
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [10.2015 -] ZSA44..6F,B;ZSA42..CVT..G;ZSA42..X..GEN;ASA44..X..ARL;ZSA44..A..(M,X);ZSA42..LHD.. 6F..M;ZSA42..6F..G..GEN;ALA49,ASA42..6F..X;ASA44..6FC..(G,M)..ARL;ZSA42..(M,X)..(A RL,SA);ALA49,ASA42,AVA4#..6FC,A;ASA44..(G,X)..(GCC,GEN,SA);ASA44,ZSA42..(ATM, |
42345-42010 |
from US $1.90 |
||
|
43448C
|
43448C
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[10.2015 -] ZSA44..6F,B;ZSA42..CVT..G;ZSA42..X..GEN;ASA44..X..ARL;ZSA44..A..(M,X);ZSA42..LHD.. 6F..M;ZSA42..6F..G..GEN;ALA49,ASA42..6F..X;ASA44..6FC..(G,M)..ARL;ZSA42..(M,X)..(A RL,SA);ALA49,ASA42,AVA4#..6FC,A;ASA44..(G,X)..(GCC,GEN,SA);ASA44,ZSA42..(ATM, |
90949-01559 |
US $3.99 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [10.2015 -] ZSA44..6F,B;ZSA42..CVT..G;ZSA42..X..GEN;ASA44..X..ARL;ZSA44..A..(M,X);ZSA42..LHD.. 6F..M;ZSA42..6F..G..GEN;ALA49,ASA42..6F..X;ASA44..6FC..(G,M)..ARL;ZSA42..(M,X)..(A RL,SA);ALA49,ASA42,AVA4#..6FC,A;ASA44..(G,X)..(GCC,GEN,SA);ASA44,ZSA42..(ATM, |
42345-12160 |
from US $3.72 |
||
|
43457
|
43457
43457-42100 Bracket, Drive Shaft BearingDRIVE SHAFT BEARING [10.2015 -] ZSA42..A..G;ZSA42..6F..G..GEN;ZSA42..LHD..(6F,A)..M;ZSA42..(6F,A)..X..GEN;ZSA42..( 6F,A)..(M,X)..(ARL,SA) |
43457-42100 |
US $52.27 |
||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[10.2015 -] ZSA42..CVT..G;ZSA42..LHD..6F..M;ZSA42..6F..G..GEN;ZSA42..CVT..M..GEN;ZSA42..(M,X). .(ARL,SA);ASA42,ZSA42..(CVT,MTM)..X..(GCC,GEN) *10-1.25PX22-19.5 |
90105-10361 |
from US $0.89 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[10.2015 -] ZSA44..6F,B;ZSA42..CVT..G;ASA44..X..ARL;ZSA44..A..(M,X);ZSA42..LHD..6F..M;ZSA42..6 F..G..GEN;ASA42,AVA4#..6FC,A;ZSA42..(M,X)..(ARL,SA);ASA44..6FC..(G,M)..ARL;ASA44.. (G,X)..(GCC,GEN,SA);ASA42,ZSA42..(CVT,MTM)..X..(GCC,GEN);ASA44,ZSA42..(ATM,CV |
90105-10381 |
US $1.24 |
||
|
43460
|
43460
43470-80330 Shaft Assy, Front Drive Outboard Joint, Rh[10.2015 -] ZSA42..CVT |
43470-80330 |
US $532.90 |
