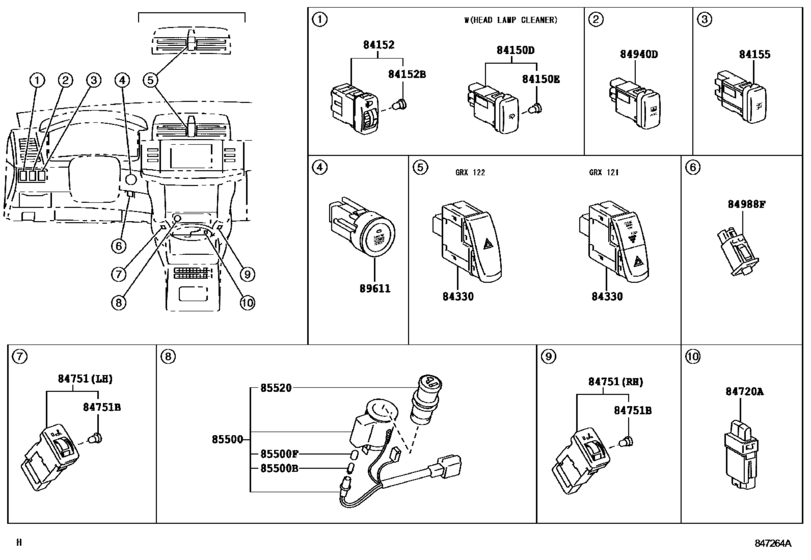

Switch & Relay & Computer ([10.2005 - ] INSTRUMENT PANEL 1/2 (0510- )) Diagram Toyota REIZ
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GRX121
- grade
- 30V
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 10.2005
- To
- 09.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-0P020
Switch Assy, Headlamp Cleaner
[10.2005 - 10.2007] GRX12#..25V,30V; GRX122..25 2.5S SPECIAL VERSION |
84150-0P020 |
— | ||
|
84150E
|
84150E
90010-01039 Blub, Center Cluster Module Switch[10.2005 - 10.2007] GRX12#..25V,30V 14V0.91W,W(GREEN CAP; GRX122..25 14V0.91W,W(GREEN CAP,2.5S SPECIAL VERSION |
90010-01039 |
from US $3.43 |
||
|
84155
|
84155
84155-0P010
Switch, Headlamp Swivel Main
[10.2005 - 10.2007] GRX121 |
84155-0P010 |
— | ||
|
84330
|
84330
84330-0P020
Switch Assy, Hazard Warning Signal
[10.2005 - 10.2007] GRX121 |
84330-0P020 |
— | ||
|
84720A
|
84720A
84720-0P010
Switch Assy, Pattern Select, No.1
[10.2005 - 10.2007] GRX12# |
84720-0P010 |
— | ||
|
84751
|
84751
84751-0P010
Switch, Seat Heater
[10.2005 - 10.2007] GRX12#..25V,30V RH |
84751-0P010 |
— | ||
|
84751
|
84751
84751-0P020
Switch, Seat Heater
[10.2005 - 10.2007] GRX12#..25V,30V LH |
84751-0P020 |
— | ||
|
84751B
|
84751B
90011-01060
Bulb, Absorber Control Switch
[10.2005 - 10.2007] GRX12#..25V,30V 14V 0.84W |
90011-01060 |
— | ||
|
84940D
|
84940D
84940-0P010
Switch Assy, Rear Sun Shade
[10.2005 - 10.2007] GRX121 |
84940-0P010 |
— | ||
|
84988F
|
84988F
84988-0P010
Switch, Traction Control
[10.2005 - 10.2007] GRX121 |
84988-0P010 |
— | ||
|
85500
|
85500
85500-30510 Lighter Assy, Cigarette[10.2005 - 10.2007] GRX12# |
85500-30510 |
US $69.19 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[10.2005 - 10.2007] GRX12# 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[10.2005 - 10.2007] GRX12# |
84998-10510 |
US $3.68 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[10.2005 - 10.2007] GRX12# |
85520-28010 |
from US $17.90 |
||
|
89611
|
89611
89611-0P010
Switch, Push Start
[10.2005 - 10.2007] GRX121 |
89611-0P010 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0P013
Switch, Push Start
[10.2005 - 10.2007] GRX121 |
89611-0P013 |
— | ||
