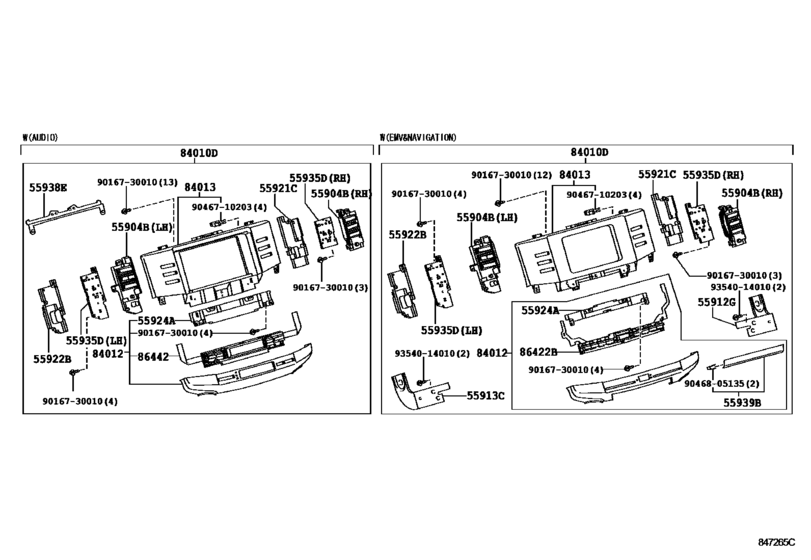

Switch & Relay & Computer ([10.2005 - ] INSTRUMENT PANEL 2/2 (0510- )) Diagram Toyota REIZ
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GRX121
- grade
- 30V
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 10.2005
- To
- 09.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55904B
|
55904B
55904-22130
Housing Sub-Assy, Heater Control
[10.2005 - 10.2007] GRX12# RH |
55904-22130 |
— | ||
|
55904B
|
55904B
55904-22140
Housing Sub-Assy, Heater Control
[10.2005 - 10.2007] GRX12# LH |
55904-22140 |
— | ||
|
55904B
|
55904B
55904-22150
Housing Sub-Assy, Heater Control
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM),RH |
55904-22150 |
— | ||
|
55904B
|
55904B
55904-22160
Housing Sub-Assy, Heater Control
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM),LH |
55904-22160 |
— | ||
|
55912G
|
55912G
55912-22100
Bracket, Heater Control Base, Rh
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
55912-22100 |
— | ||
|
55913C
|
55913C
55913-22030 Bracket, Heater Control Base, Lh[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
55913-22030 |
US $5.10 |
||
|
55921C
|
55921C
55921-22100
Retainer, Heater Control, Rh
[10.2005 - 10.2007] GRX12# |
55921-22100 |
— | ||
|
55922B
|
55922B
55922-22020
Retainer, Heater Control, Lh
[10.2005 - 10.2007] GRX12# |
55922-22020 |
— | ||
|
55924A
|
55924A
55924-22020 Retainer, Heater Control, Lower[10.2005 - 10.2007] GRX12# |
55924-22020 |
US $12.23 |
||
|
55924A
|
55924A
55924-22040
Retainer, Heater Control, Lower
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
55924-22040 |
— | ||
|
55935D
|
55935D
55935-22050
Circuit, Center Cluster Module
[10.2005 - 10.2007] GRX12# RH |
55935-22050 |
— | ||
|
55935D
|
55935D
55935-22060
Circuit, Center Cluster Module
[10.2005 - 10.2007] GRX12# LH |
55935-22060 |
— | ||
|
55935D
|
55935D
55935-22070
Circuit, Center Cluster Module
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM),RH |
55935-22070 |
— | ||
|
55935D
|
55935D
55935-22080
Circuit, Center Cluster Module
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM),LH |
55935-22080 |
— | ||
|
55938E
|
55938E
55938-22030
Bracket, Heater Control
[10.2005 - 10.2007] GRX12# |
55938-22030 |
— | ||
|
55939B
|
55939B
55939-22090 Ornament, Heater Control[10.2005 - 04.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
55939-22090 |
US $32.18 |
||
|
55939B
|
55939B
55939-22110
Ornament, Heater Control
[04.2006 - 10.2007] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
55939-22110 |
— | ||
|
84010D
|
84010D
84010-22050 Control & Panel Assy, IntegrationINTEGRATION [10.2005 - 10.2007] GRX12# |
84010-22050 |
US $937.05 |
||
|
84010D
|
84010D
84010-22060
Control & Panel Assy, Integration
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84010-22060 |
— | ||
| replacement | |||||
|
84010D
|
84010D
84010-22061
Control & Panel Assy, Integration
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84010-22061 |
— | ||
|
84010D
|
84010D
84010-22061
Control & Panel Assy, Integration
[04.2006 - 10.2007] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84010-22061 |
— | ||
|
84012
|
84012
84012-22040 Control & Panel Sub-Assy, IntegrationINTEGRATION [10.2005 - 10.2007] GRX12# |
84012-22040 |
US $399.77 |
||
|
84012
|
84012
84012-22050
Control & Panel Sub-Assy, Integration
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84012-22050 |
— | ||
| replacement | |||||
|
84012
|
84012
84012-22051
Control & Panel Sub-Assy, Integration
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84012-22051 |
— | ||
|
84012
|
84012
84012-22051
Control & Panel Sub-Assy, Integration
[04.2006 - 10.2007] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84012-22051 |
— | ||
|
84013
|
84013
84013-22040
Panel Sub-Assy, Integration
[10.2005 - 10.2007] GRX12# |
84013-22040 |
— | ||
|
84013
|
84013
84013-22050
Panel Sub-Assy, Integration
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
84013-22050 |
— | ||
|
86422B
|
86422B
86422-22040
Board, Navigation Switch
[10.2005 - 03.2006] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
86422-22040 |
— | ||
|
86442
|
86442
86442-22020
Board, Heater Control Switch
[10.2005 - 10.2007] GRX12# |
86442-22020 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
