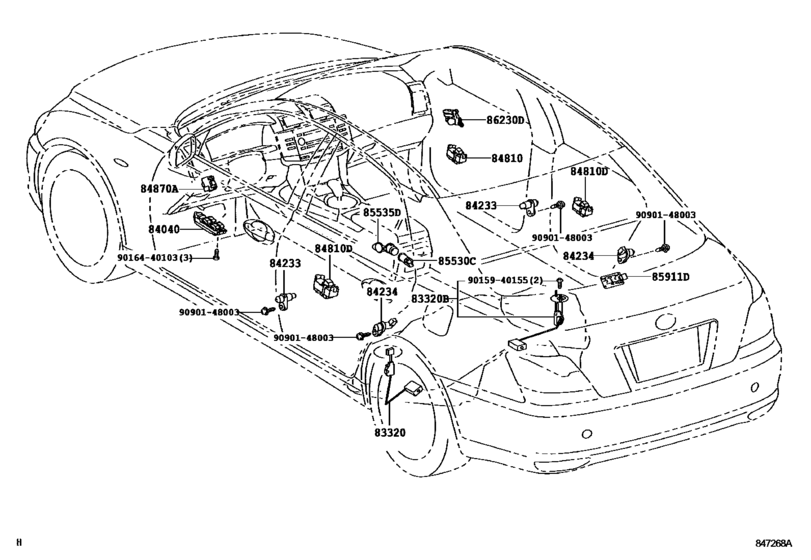

Switch & Relay & Computer ([10.2005 - ] DOOR,ROOF,FLOOR & LUGGAGE (0510- )) Diagram Toyota REIZ
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- GRX121
- grade
- 30V
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 10.2005
- To
- 09.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0N010
Gage Assy, Fuel Sender
[10.2005 - 10.2007] GRX12# |
83320-0N010 |
— | ||
|
83320B
|
83320B
83320-09100
Gage Assy, Fuel Sender
[10.2005 - 10.2007] GRX12# |
83320-09100 |
— | ||
|
84040
|
84040
84040-0P010
Master Switch Assy,multiplex Network
[10.2005 - 10.2007] GRX12# |
84040-0P010 |
— | ||
| replacement | |||||
|
84040
|
84040
84040-0P011
Master Switch Assy,multiplex Network
[10.2005 - 10.2007] GRX12# |
84040-0P011 |
— | ||
|
84040
|
84040
84040-0P011
Master Switch Assy,multiplex Network
[10.2007 -] GRX12# |
84040-0P011 |
— | ||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[10.2005 - 10.2007] GRX12# |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[10.2005 - 10.2007] GRX12# |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84030-0P010
Switch Assy, Power Window Regulator
[10.2005 - 10.2007] GRX12# |
84030-0P010 |
— | ||
| replacement | |||||
|
84810
|
84810
84030-0P011
Switch Assy, Power Window Regulator
[10.2005 - 10.2007] GRX12# |
84030-0P011 |
— | ||
|
84810
|
84810
84030-0P011
Switch Assy, Power Window Regulator
[10.2007 -] GRX12# |
84030-0P011 |
— | ||
|
84810D
|
84810D
84030-0P010
Switch Assy, Power Window Regulator
[10.2005 - 10.2007] GRX12# |
84030-0P010 |
— | ||
| replacement | |||||
|
84810D
|
84810D
84030-0P011
Switch Assy, Power Window Regulator
[10.2005 - 10.2007] GRX12# |
84030-0P011 |
— | ||
|
84810D
|
84810D
84030-0P011
Switch Assy, Power Window Regulator
[10.2007 -] GRX12# |
84030-0P011 |
— | ||
|
84870A
|
84870A
84872-0P010
Switch Assy, Outer Mirror
[10.2005 - 10.2007] GRX12# |
84872-0P010 |
— | ||
|
85530C
|
85530C
85530-0N010
Socket Assy, Power Outlet, No.1
[10.2005 - 10.2007] GRX12# |
85530-0N010 |
— | ||
|
85535D
|
85535D
85535-0N010
Cover, Power Outlet Socket, No.1
[10.2005 - 03.2007] GRX12# |
85535-0N010 |
— | ||
|
85535D
|
85535D
85535-0P010
Cover, Power Outlet Socket, No.1
[03.2007 - 10.2007] GRX12# |
85535-0P010 |
— | ||
|
85911D
|
85911D
85911-33010 Relay, Rear Sunshade[10.2007 - 09.2010] GRX121 |
85911-33010 |
US $313.04 |
||
|
86230D
|
86230D
86230-22020
Controller Assy, Stereo Component
[10.2005 - 10.2007] GRX12#..25V,30V EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM) |
86230-22020 |
— | ||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $1.92 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
