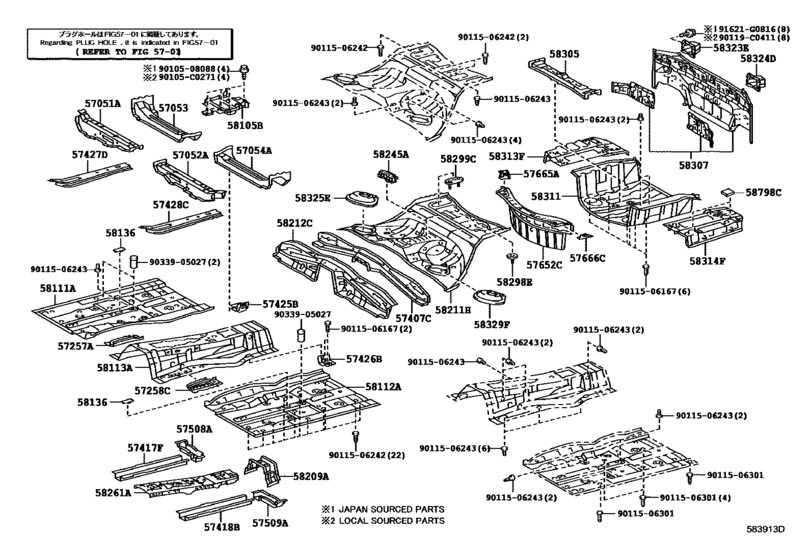

Floor Pan & Lower Back Panel ([09.2010 - ] (1009- )) Diagram Toyota REIZ
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GRX131
- grade
- 25V
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- From
- 09.2010
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-0P010
Member Sub-Assy, Front Floor Cross, Rh
[09.2010 - 09.2013] GRX13# |
57051-0P010 |
— | ||
|
57052A
|
57052A
57052-0P020
Member Sub-Assy, Front Floor Cross, Lh
[09.2010 - 09.2013] GRX13# |
57052-0P020 |
— | ||
|
57053
|
57053
57053-30071 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[09.2010 - 09.2013] GRX13# |
57053-30071 |
US $57.51 |
||
|
57054A
|
57054A
57054-30071 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[09.2010 - 09.2013] GRX13# |
57054-30071 |
US $57.51 |
||
|
57257A
|
57257A
57257-0N010
Bracket, Engine Rear Mounting Member, Rh
[05.2014 -] GRX13# |
57257-0N010 |
— | ||
|
57257A
|
57257A
57257-0P010
Bracket, Engine Rear Mounting Member, Rh
[09.2010 - 09.2013] GRX13# |
57257-0P010 |
— | ||
|
57258C
|
57258C
57258-0P010
Bracket, Engine Rear Mounting Member, Lh
[09.2010 - 09.2013] GRX13# |
57258-0P010 |
— | ||
|
57407C
|
57407C
57407-0N010
Member Sub-Assy, Center Floor Cross
[09.2010 - 09.2013] GRX13# |
57407-0N010 |
— | ||
|
57417F
|
57417F
57417-30080 Reinforcement, Front Floor Under, Rh[09.2010 - 09.2013] GRX13# |
57417-30080 |
US $46.88 |
||
|
57418B
|
57418B
57417-30080 Reinforcement, Front Floor Under, Rh[09.2010 - 09.2013] GRX13# |
57417-30080 |
US $46.88 |
||
|
57425B
|
57425B
57425-0P010
Reinforcement, Front Floor, No.2 Rh
[09.2010 - 09.2013] GRX13# |
57425-0P010 |
— | ||
|
57426B
|
57426B
57426-0P010
Reinforcement, Front Floor, No.2 Lh
[09.2010 - 09.2013] GRX13# |
57426-0P010 |
— | ||
|
57427D
|
57427D
57427-30030 Reinforcement, Front Floor, Upper[09.2010 - 09.2013] GRX13# |
57427-30030 |
US $46.88 |
||
|
57428C
|
57428C
57427-30030 Reinforcement, Front Floor, Upper[09.2010 - 09.2013] GRX13# |
57427-30030 |
US $46.88 |
||
|
57508A
|
57508A
57508-0P010
Reinforcement, Center Floor Crossmember, Rh
[09.2010 - 09.2013] GRX13# |
57508-0P010 |
— | ||
|
57509A
|
57509A
57509-0P010
Reinforcement, Center Floor Crossmember, Lh
[09.2010 - 09.2013] GRX13# |
57509-0P010 |
— | ||
|
57652C
|
57652C
57652-0N010
Member, Rear Floor Cross, No.1
[09.2010 - 09.2013] GRX13# |
57652-0N010 |
— | ||
|
57665A
|
57665A
57665-22030 Reinforcement, Rear Floor Crossmember, No.2[09.2010 - 09.2013] GRX13# |
57665-22030 |
US $5.24 |
||
|
57666C
|
57666C
57666-22030 Reinforcemnt, Rear Floor Crossmember[09.2010 - 09.2013] GRX13# |
57666-22030 |
US $5.24 |
||
|
58105B
|
58105B
58105-0P010
Panel Sub-Assy, Front Floor Rear Upper Sub
[12.2012 - 09.2013] GRX13# |
58105-0P010 |
— | ||
|
58105B
|
58105B
58105-30040 Panel Sub-Assy, Front Floor Rear Upper Sub[09.2010 - 11.2012] GRX13# |
58105-30040 |
US $37.42 |
||
|
58111A
|
58111A
58111-30450 Pan, Front Floor, Rh[09.2010 - 09.2013] GRX13# |
58111-30450 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[09.2010 - 09.2013] GRX13# |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[09.2010 - 09.2013] GRX13# |
58111-30460 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[09.2010 - 09.2013] GRX13# |
87212-30431 |
US $57.51 |
||
|
58111A
|
58111A
58111-30451 Pan, Front Floor, Rh[10.2013 - 05.2014] GRX13# |
58111-30451 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[10.2013 - 05.2014] GRX13# |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[10.2013 - 05.2014] GRX13# |
58111-30460 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[10.2013 - 05.2014] GRX13# |
87212-30431 |
US $57.51 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[05.2014 -] GRX13# |
58111-30460 |
US $198.02 |
||
|
58112A
|
58112A
58112-30161 Panel, Front Floor, Lh[09.2010 - 09.2013] GRX13# |
58112-30161 |
US $218.40 |
||
| replacement | |||||
|
58112A
|
58112A
58112-30162 Panel, Front Floor, Lh[09.2010 - 09.2013] GRX13# |
58112-30162 |
US $198.02 |
||
|
58112A
|
58112A
58112-30162 Panel, Front Floor, Lh[10.2013 -] GRX13# |
58112-30162 |
US $198.02 |
||
|
58113A
|
58113A
58113-0N010
Panel, Front Floor, Center
[09.2010 - 09.2013] GRX13# |
58113-0N010 |
— | ||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[09.2010 - 09.2013] GRX13# |
58136-51010 |
US $2.04 |
||
|
58209A
|
58209A
58209-30050 Reinforcement Sub-Assy, Drive Shaft Center Support[09.2010 - 09.2013] GRX13# |
58209-30050 |
US $36.98 |
||
|
58211H
|
58211H
58211-0N010
Pan, Center Floor
[09.2010 - 09.2013] GRX13# |
58211-0N010 |
— | ||
|
58212C
|
58212C
58202-0N010
Pan Sub-Assy, Center Floor, Front
[09.2010 - 09.2013] GRX13# |
58202-0N010 |
— | ||
|
58245A
|
58245A
58245-0P010
Bracket, Rear Seat Hinge, Center No.1
[09.2010 - 09.2013] GRX13# |
58245-0P010 |
— | ||
|
58261A
|
58261A
58261-30231 Cover, Transmission[09.2010 - 09.2013] GRX13# |
58261-30231 |
US $66.98 |
||
|
58298E
|
58298E
58298-0P010
Bracket, Hot Air Intake, No.1
[09.2010 - 09.2013] GRX13# |
58298-0P010 |
— | ||
|
58299C
|
58299C
58299-0P010
Bracket, Hot Air Intake, No.2
[09.2010 - 09.2013] GRX13# |
58299-0P010 |
— | ||
|
58305
|
58305
58305-0N010
Bracket Sub-Assy, Spare Wheel Clamp
[09.2010 - 09.2013] GRX13# |
58305-0N010 |
— | ||
|
58307
|
58307
58307-0P020
Panel Sub-Assy, Body Lower Back
[09.2010 - 09.2013] GRX13# |
58307-0P020 |
— | ||
|
58311
|
58311
58311-0P010
Pan, Rear Floor
[09.2010 - 09.2013] GRX13# |
58311-0P010 |
— | ||
|
58313F
|
58313F
58313-0P010
Extension, Rear Floor Pan To Quarter Panel, Rh
[09.2010 - 09.2013] GRX13# |
58313-0P010 |
— | ||
|
58314F
|
58314F
58303-0P020
Extension, Rear Floor Pan To Quarter Panel, Lh
[09.2010 - 09.2013] GRX13# |
58303-0P020 |
— | ||
|
58323E
|
58323E
58323-0P020
Reinforcement, Rear Bumper Arm Support, Rh
[09.2010 - 09.2013] GRX13# |
58323-0P020 |
— | ||
|
58324D
|
58324D
58324-0P021
Reinforcement, Rear Bumper Arm Support, Lh
[09.2010 - 09.2013] GRX13# |
58324-0P021 |
— | ||
|
58325E
|
58325E
58325-0N010
Cover, Rear Floor Service Hole
[09.2010 - 09.2013] GRX13# |
58325-0N010 |
— | ||
|
58329F
|
58329F
58329-0N010
Cover, Rear Floor Service Hole, No.2
[09.2010 - 09.2013] GRX13# |
58329-0N010 |
— | ||
|
58798C
|
58798C
58798-0N020
Cushion, Jack Carrier
[09.2010 - 09.2013] GRX13# FRONT |
58798-0N020 |
— | ||
|
58798C
|
58798C
58798-0P010
Cushion, Jack Carrier
[09.2010 - 09.2013] GRX13# REAR |
58798-0P010 |
— | ||
|
90105C0271
|
90105C0271
90105-C0271
New Genuine Part
|
90105-C0271 |
— | ||
|
90119C0411
|
90119C0411
90119-C0411
New Genuine Part
|
90119-C0411 |
— | ||
|
91621G0816
|
91621G0816
91621-G0816 BOLT WWASHER |
91621-G0816 |
US $2.24 |
||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.76 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9011506242
|
9011506242
90115-06242 New Genuine Part |
90115-06242 |
US $0.96 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011506301
|
9011506301
90115-06301 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06301 |
US $0.96 |
||
|
9033905027
|
9033905027
90339-05027 New Genuine Part |
90339-05027 |
US $1.51 |
||
