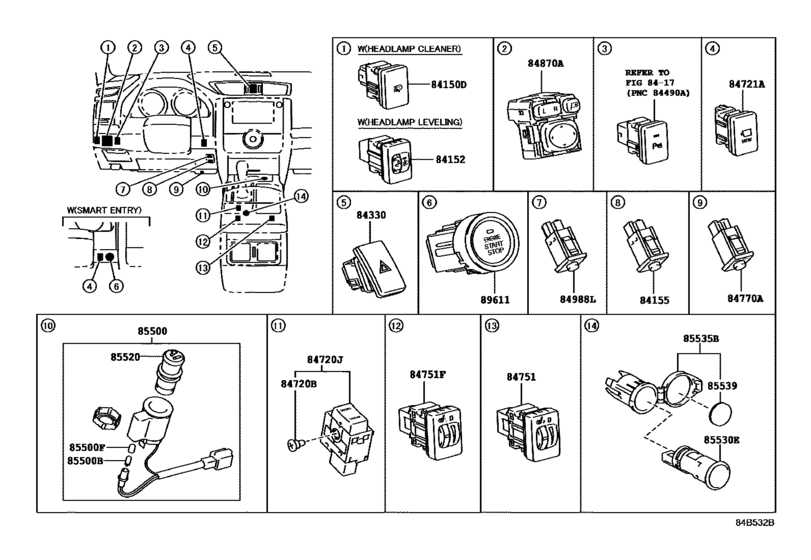

Switch & Relay & Computer ([09.2010 - 09.2013] INSTRUMENT PANEL (1009-1309)) Diagram Toyota REIZ
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GRX131
- grade
- 25V
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- From
- 09.2010
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-06010
Switch Assy, Headlamp Cleaner
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84150-06010 |
— | ||
| replacement | |||||
|
84150D
|
84150D
84150-06011
Switch Assy, Headlamp Cleaner
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84150-06011 |
— | ||
|
84150D
|
84150D
84150-0P030
Switch Assy, Headlamp Cleaner
[09.2013 - 02.2015] GRX13# |
84150-0P030 |
— | ||
| replacement | |||||
|
84150D
|
84150D
84150-0P031
Switch Assy, Headlamp Cleaner
[09.2013 - 02.2015] GRX13# |
84150-0P031 |
— | ||
|
84150D
|
84150D
84150-0P031
Switch Assy, Headlamp Cleaner
[03.2015 -] GRX13# |
84150-0P031 |
— | ||
|
84155
|
84155
84155-0N020
Switch, Headlamp Swivel Main
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84155-0N020 |
— | ||
|
84330
|
84330
84332-0P010
Switch Assy, Hazard Warning Signal
[09.2010 - 09.2013] GRX13# |
84332-0P010 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-0P011
Switch Assy, Hazard Warning Signal
[09.2010 - 09.2013] GRX13# |
84332-0P011 |
— | ||
|
84330
|
84330
84332-0P011
Switch Assy, Hazard Warning Signal
[03.2015 -] GRX13# |
84332-0P011 |
— | ||
|
84720B
|
84720B
90011-01069
Bulb (For Pattern Select Switch)
[09.2010 - 09.2013] GRX13# 14V0.56W,W(GREEN CAP |
90011-01069 |
— | ||
|
84720J
|
84720J
84721-0P010
Switch Assy, Pattern Select
[09.2010 - 09.2013] GRX13# |
84721-0P010 |
— | ||
|
84720J
|
84720J
84721-0P030
Switch Assy, Pattern Select
[09.2013 -] GRX13# |
84721-0P030 |
— | ||
|
84721A
|
84721A
84721-0P020
Switch, Front Wide View
[09.2010 - 09.2013] GRX132..25S WITH(*MR&*NS); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX13#..25S,25V SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84721-0P020 |
— | ||
|
84721A
|
84721A
84721-0P040
Switch, Front Wide View
[09.2013 - 02.2015] GRX131; GRX132..25S SPORT & W(*MR & *NS) |
84721-0P040 |
— | ||
| replacement | |||||
|
84721A
|
84721A
84721-0P041
Switch, Front Wide View
[09.2013 - 02.2015] GRX131; GRX132..25S SPORT & W(*MR & *NS) |
84721-0P041 |
— | ||
|
84721A
|
84721A
84721-0P041
Switch, Front Wide View
[03.2015 - 09.2016] GRX131 |
84721-0P041 |
— | ||
|
84751
|
84751
84751-0G030
Switch, Seat Heater
[09.2010 - 09.2013] GRX13#..25S,25V |
84751-0G030 |
— | ||
| replacement | |||||
|
84751
|
84751
84751-0G031
Switch, Seat Heater
[09.2010 - 09.2013] GRX13#..25S,25V |
84751-0G031 |
— | ||
|
84751
|
84751
84751-0P050
Switch, Seat Heater
[09.2013 - 02.2015] GRX13#..25S,25V |
84751-0P050 |
— | ||
| replacement | |||||
|
84751
|
84751
84751-0P051
Switch, Seat Heater
[09.2013 - 02.2015] GRX13#..25S,25V |
84751-0P051 |
— | ||
|
84751
|
84751
84751-0P051
Switch, Seat Heater
[03.2015 -] GRX13#..25S,25V |
84751-0P051 |
— | ||
|
84751F
|
84751F
84751-0G040
Switch, Seat Heater
[09.2010 - 09.2013] GRX13#..25S,25V |
84751-0G040 |
— | ||
|
84751F
|
84751F
84751-0P060
Switch, Seat Heater
[09.2013 - 02.2015] GRX13#..25S,25V |
84751-0P060 |
— | ||
| replacement | |||||
|
84751F
|
84751F
84751-0P061
Switch, Seat Heater
[09.2013 - 02.2015] GRX13#..25S,25V |
84751-0P061 |
— | ||
|
84751F
|
84751F
84751-0P061
Switch, Seat Heater
[03.2015 -] GRX13#..25S,25V |
84751-0P061 |
— | ||
|
84770A
|
84770A
84770-0N010
Switch Assy, Pre-Collision System Cancel
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84770-0N010 |
— | ||
|
84870A
|
84870A
84872-0P020
Switch Assy, Outer Mirror
[09.2010 - 09.2013] GRX13# |
84872-0P020 |
— | ||
|
84870A
|
84870A
84872-0P030
Switch Assy, Outer Mirror
[09.2013 -] GRX13# |
84872-0P030 |
— | ||
|
84988L
|
84988L
84988-0P020
Switch, Vsc Off
[09.2010 - 09.2013] GRX13# |
84988-0P020 |
— | ||
|
85500
|
85500
85500-22200
Lighter Assy, Cigarette
[09.2013 -] GRX13# |
85500-22200 |
— | ||
|
85500
|
85500
85500-30520 Lighter Assy, Cigarette[09.2010 - 09.2013] GRX13# |
85500-30520 |
from US $48.40 |
||
|
85500B
|
85500B
90010-01111 Bulb, Cigarette Lighter[09.2010 - 09.2013] GRX13# 13.5V 2W |
90010-01111 |
US $4.37 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[09.2010 - 09.2013] GRX13# |
84998-10510 |
US $3.68 |
||
|
85500F
|
85500F
90010-01166
Cap, Cigarette Lighter Bulb
[09.2013 -] GRX13# |
90010-01166 |
— | ||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[09.2010 - 09.2013] GRX13# |
85520-89101 |
from US $19.85 |
||
|
85530E
|
85530E
85530-0N010
Socket Assy, Power Outlet, No.1
[09.2010 - 09.2013] GRX13# |
85530-0N010 |
— | ||
|
85535B
|
85535B
85535-0P010
Cover, Power Outlet Socket, No.1
[09.2010 - 09.2013] GRX13# |
85535-0P010 |
— | ||
|
85539
|
85539
85539-48030
Label, Power Outlet Notice
[09.2010 - 09.2013] GRX13# |
85539-48030 |
— | ||
|
89611
|
89611
89611-0N020
Switch, Push Start
[09.2010 - 10.2010] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N020 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0N024
Switch, Push Start
[09.2010 - 10.2010] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N024 |
— | ||
|
89611
|
89611
89611-0N021
Switch, Push Start
[11.2010 - 06.2011] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N021 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0N024
Switch, Push Start
[11.2010 - 06.2011] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N024 |
— | ||
|
89611
|
89611
89611-0N022
Switch, Push Start
[07.2011 - 01.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N022 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0N024
Switch, Push Start
[07.2011 - 01.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N024 |
— | ||
|
89611
|
89611
89611-0N023
Switch, Push Start
[02.2013 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N023 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0N024
Switch, Push Start
[02.2013 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89611-0N024 |
— | ||
|
89611
|
89611
89611-0P020
Switch, Push Start
[09.2013 - 03.2016] GRX131; GRX132..25S SPORT & W(*MR); GRX132..25S SPORT & W(*MR & *NS) |
89611-0P020 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0P021
Switch, Push Start
[09.2013 - 03.2016] GRX131; GRX132..25S SPORT & W(*MR); GRX132..25S SPORT & W(*MR & *NS) |
89611-0P021 |
— | ||
|
89611
|
89611
89611-0P021
Switch, Push Start
[04.2016 - 09.2016] GRX131 |
89611-0P021 |
— | ||
