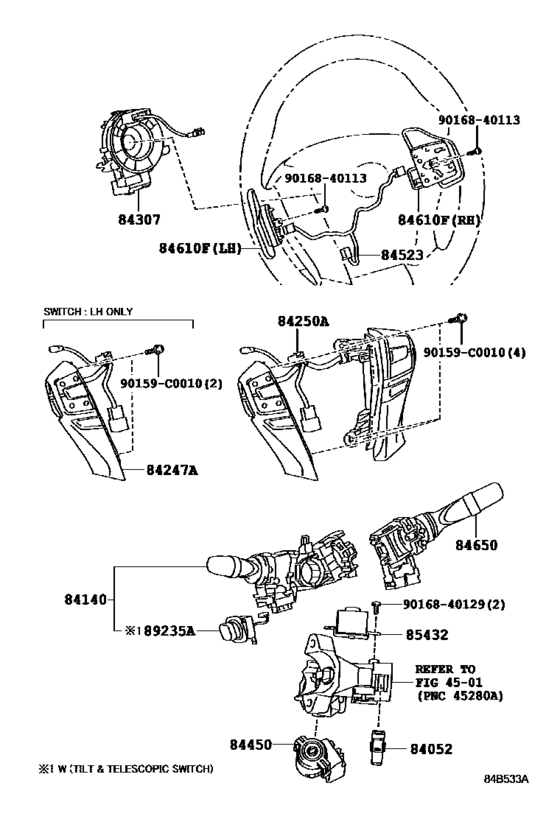

Switch & Relay & Computer ([09.2010 - ] STEERING (1009- )) Diagram Toyota REIZ
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GRX131
- grade
- 25V
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- From
- 09.2010
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-0N011
Switch Assy, Headlamp Dimmer
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84140-0N011 |
— | ||
|
84250A
|
84250A
84250-0P020
Switch Assy, Steering Pad
[09.2010 - 09.2013] GRX131 |
84250-0P020 |
— | ||
|
84250A
|
84250A
84250-0P030
Switch Assy, Steering Pad
[09.2010 - 09.2013] GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX13#..25S,25V SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84250-0P030 |
— | ||
|
84250A
|
84250A
84250-0P050
Switch Assy, Steering Pad
[09.2013 - 09.2016] GRX131 |
84250-0P050 |
— | ||
|
84307
|
84307
84307-0P030
Cable Sub-Assy, Spiral W/sensor
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84307-0P030 |
— | ||
|
84523
|
84523
84523-22010 Wire, Switch No.1SWITCH NO.1 [09.2010 - 09.2013] GRX131; GRX132 SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84523-22010 |
US $15 |
||
|
84610F
|
84610F
84610-22010 Switch Assy, Transmission ShiftTRANSMISSION SHIFT [09.2010 - 09.2013] GRX131 LH; GRX132 SPORT&WITH(*MR),LH; GRX132..25S SPORT&WITH(*MR&*NS),LH; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM),LH; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),LH |
84610-22010 |
US $35.09 |
||
|
84610F
|
84610F
84610-22020 Switch Assy, Transmission ShiftTRANSMISSION SHIFT [09.2010 - 09.2013] GRX131 RH; GRX132 SPORT&WITH(*MR),RH; GRX132..25S SPORT&WITH(*MR&*NS),RH; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM),RH; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),RH |
84610-22020 |
US $35.09 |
||
|
84650
|
84650
84652-0P012
Switch Assy, Windshield Wiper
[09.2010 - 09.2013] GRX13# |
84652-0P012 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89235-48010 |
US $40.19 |
||
|
90159C0010
|
90159C0010
90159-C0010
New Genuine Part
|
90159-C0010 |
— | ||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $0.96 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
