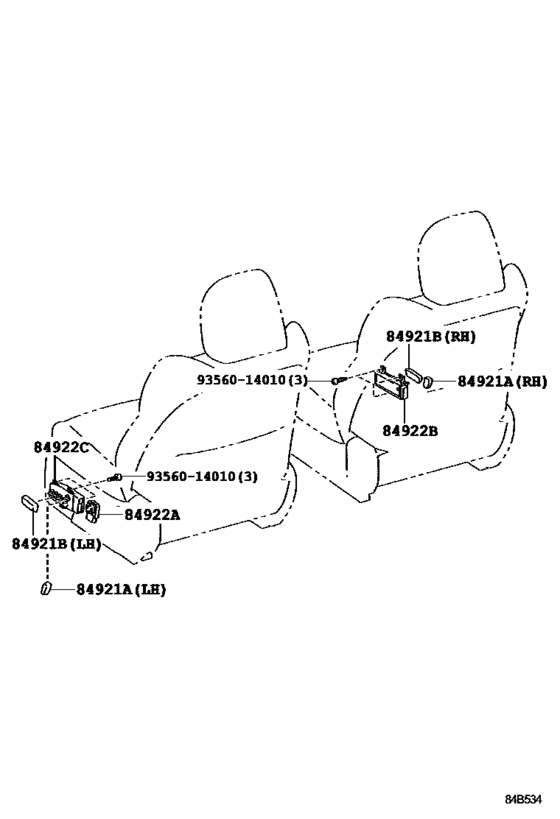

Switch & Relay & Computer ([09.2010 - ] SEAT (1009- )) Diagram Toyota REIZ
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GRX131
- grade
- 25V
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- From
- 09.2010
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84921A
|
84921A
84921-0P040-A0
Knob, Power Seat Switch (For Reclining)
[09.2010 - 09.2013] GRX13#..25S,25V SHELL,TRIM0#,RH |
84921-0P040-A0 |
— | ||
|
84921A
|
84921A
84921-0P040-C0
Knob, Power Seat Switch (For Reclining)
[09.2010 - 09.2013] GRX13#..25S,25V BLACK,TRIM2#,RH |
84921-0P040-C0 |
— | ||
|
84921A
|
84921A
84921-0P050-A0
Knob, Power Seat Switch (For Reclining)
[09.2010 - 09.2013] GRX13#..25S,25V SHELL,TRIM0#,LH |
84921-0P050-A0 |
— | ||
|
84921A
|
84921A
84921-0P050-C0
Knob, Power Seat Switch (For Reclining)
[09.2010 - 09.2013] GRX13#..25S,25V BLACK,TRIM2#,LH |
84921-0P050-C0 |
— | ||
|
84921A
|
84921A
84921-0P080-C0
Knob, Power Seat Switch (For Reclining)
[09.2013 -] GRX13#..25S,25V BLACK,TRIM2#,RH |
84921-0P080-C0 |
— | ||
|
84921A
|
84921A
84921-0P090-C0
Knob, Power Seat Switch (For Reclining)
[09.2013 -] GRX13#..25S,25V BLACK,TRIM2#,LH |
84921-0P090-C0 |
— | ||
|
84921B
|
84921B
84921-0P020-A0
Knob, Power Seat Switch (For Slide & Vertical)
[09.2010 - 09.2013] GRX13#..25S,25V SHELL,TRIM0#,RH |
84921-0P020-A0 |
— | ||
|
84921B
|
84921B
84921-0P020-C0
Knob, Power Seat Switch (For Slide & Vertical)
[09.2010 - 09.2013] GRX13#..25S,25V BLACK,TRIM2#,RH |
84921-0P020-C0 |
— | ||
|
84921B
|
84921B
84921-0P030-A0
Knob, Power Seat Switch (For Slide & Vertical)
[09.2010 - 09.2013] GRX13#..25S,25V SHELL,TRIM0#,LH |
84921-0P030-A0 |
— | ||
|
84921B
|
84921B
84921-0P030-C0
Knob, Power Seat Switch (For Slide & Vertical)
[09.2010 - 09.2013] GRX13#..25S,25V BLACK,TRIM2#,LH |
84921-0P030-C0 |
— | ||
|
84921B
|
84921B
84921-0P060-C0
Knob, Power Seat Switch (For Slide & Vertical)
[09.2013 -] GRX13#..25S,25V BLACK,TRIM2#,RH |
84921-0P060-C0 |
— | ||
|
84921B
|
84921B
84921-0P070-C0
Knob, Power Seat Switch (For Slide & Vertical)
[09.2013 -] GRX13#..25S,25V BLACK,TRIM2#,LH |
84921-0P070-C0 |
— | ||
|
84922A
|
84922A
84920-0P010-A0
Switch, Front Power Seat(For Lumbar)
[09.2010 - 09.2013] GRX13#..25S,25V SHELL,TRIM0# |
84920-0P010-A0 |
— | ||
|
84922A
|
84922A
84920-0P010-C0
Switch, Front Power Seat(For Lumbar)
[09.2010 - 09.2013] GRX13#..25S,25V BLACK,TRIM2# |
84920-0P010-C0 |
— | ||
|
84922B
|
84922B
84922-0P020
Switch, Front Power Seat, Rh
[09.2010 - 09.2013] GRX13#..25S,25V |
84922-0P020 |
— | ||
|
84922C
|
84922C
84070-22010
Switch, Front Power Seat, Lh
[09.2010 - 09.2013] GRX131; GRX132..25S SPORT&WITH(*MR); GRX132..25S SPORT&WITH(*MR&*NS); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
84070-22010 |
— | ||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
