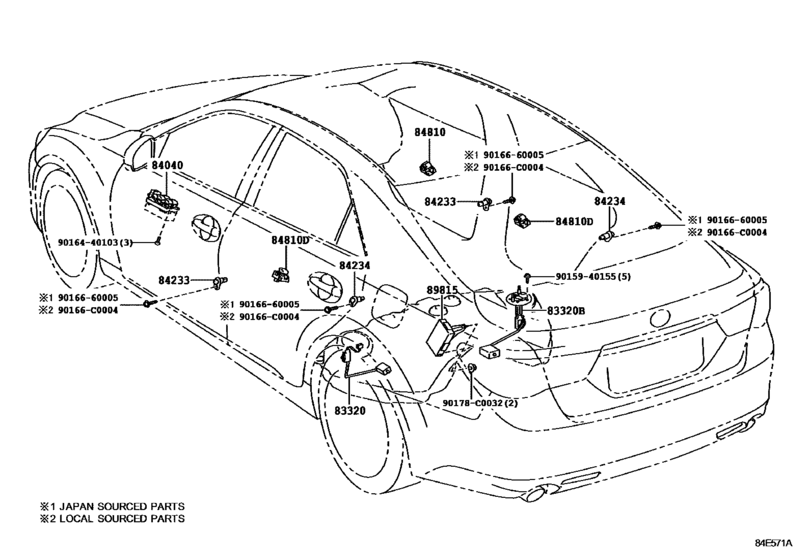

Switch & Relay & Computer ([09.2013 - ] DOOR,ROOF,FLOOR & LUGGAGE (1309- )) Diagram Toyota REIZ
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GRX131
- grade
- 25V
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- From
- 09.2010
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- REIZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0N010
Gage Assy, Fuel Sender
[09.2010 - 09.2013] GRX13# |
83320-0N010 |
— | ||
|
83320B
|
83320B
83320-09100
Gage Assy, Fuel Sender
[09.2010 - 09.2013] GRX13# |
83320-09100 |
— | ||
|
84040
|
84040
84040-0P020
Master Switch Assy,multiplex Network
[09.2010 - 07.2012] GRX13# |
84040-0P020 |
— | ||
| replacement | |||||
|
84040
|
84040
84040-0P021
Master Switch Assy,multiplex Network
[09.2010 - 07.2012] GRX13# |
84040-0P021 |
— | ||
|
84040
|
84040
84040-0P021
Master Switch Assy,multiplex Network
[07.2012 - 09.2013] GRX13# |
84040-0P021 |
— | ||
|
84040
|
84040
84040-0P040
Master Switch Assy,multiplex Network
[09.2013 -] GRX13# |
84040-0P040 |
— | ||
|
84233
|
84233
84231-02130
Switch Assy, Courtesy Lamp (For Front Door)
[09.2010 - 09.2013] GRX13# |
84231-02130 |
— | ||
|
84233
|
84233
84231-0R010
Switch Assy, Courtesy Lamp (For Front Door)
[02.2014 -] GRX13# |
84231-0R010 |
— | ||
|
84234
|
84234
84231-02130
Switch Assy, Courtesy Lamp (For Front Door)
[09.2010 - 09.2013] GRX13# |
84231-02130 |
— | ||
|
84234
|
84234
84231-0R010
Switch Assy, Courtesy Lamp (For Front Door)
[02.2014 -] GRX13# |
84231-0R010 |
— | ||
|
84810
|
84810
84810-0N010
Switch Assy, Power Window Regulator
[09.2010 - 09.2013] GRX13# |
84810-0N010 |
— | ||
|
84810
|
84810
84810-0P010
Switch Assy, Power Window Regulator
[09.2013 -] GRX13# |
84810-0P010 |
— | ||
|
84810D
|
84810D
84810-0N010
Switch Assy, Power Window Regulator
[09.2010 - 09.2013] GRX13# |
84810-0N010 |
— | ||
|
84810D
|
84810D
84810-0P010
Switch Assy, Power Window Regulator
[09.2013 -] GRX13# |
84810-0P010 |
— | ||
|
89815
|
89815
89810-22010 Computer, Seat Belt ControlSEAT BELT CONTROL [09.2010 - 09.2013] GRX131; GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM); GRX132..25S SPORT&W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL) |
89810-22010 |
US $627.54 |
||
|
90166C0004
|
90166C0004
90166-C0004
New Genuine Part
|
90166-C0004 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $1.92 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016660005
|
9016660005
90166-60005 New Genuine Part |
90166-60005 |
US $0.96 |
||
