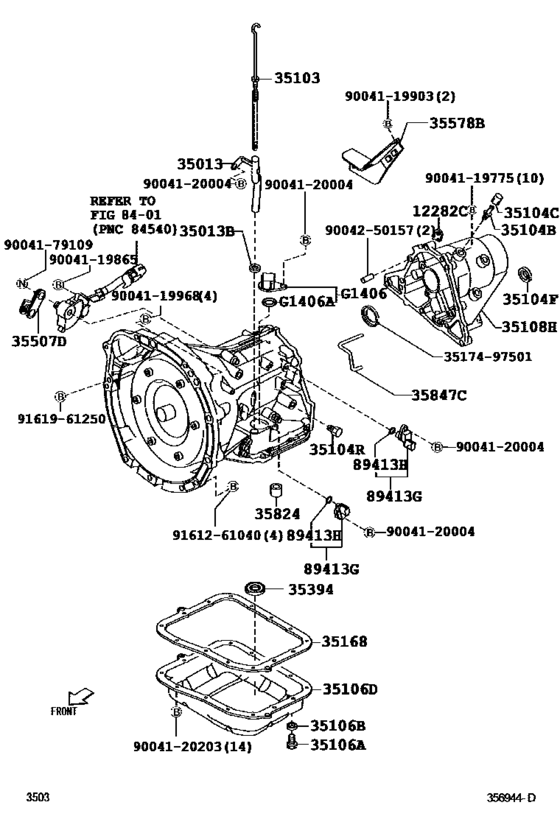

Transmission Case & Oil Pan (Atm) ([03.2009 - 09.2014] (0903-1409)J200) Diagram Toyota RUSH
- Year
- 2006 - 2016
- Sales region
- Japan
- Frame
- J200E
- grade
- X
- body
- WG
- ENGINE
- 3SZVE
- TRANSMISSION
- ATM
- From
- 01.2006
- To
- 05.2016
- Gear Shift Type
- E4AT
- Drive Train
- 2WD
- Vehicle Model
- RUSH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12282C
|
12282C
12282-B5030 Hanger, Engine, No.2[01.2006 - 11.2008] 3SZVE..J200 |
12282-B5030 |
US $2.77 |
||
|
35013
|
35013
35013-87402 Tube Sub-Assy, Transmission Oil Filler[01.2006 - 11.2008] J200,210..E4AT |
35013-87402 |
US $31.60 |
||
|
35013B
|
35013B
90043-01193 Ring, O (For Transmission Oil Filler Tube)[01.2006 - 11.2008] J200,210..E4AT |
90043-01193 |
from US $2.20 |
||
|
35103
|
35103
35103-87403 Gage Sub-Assy, Transmission Oil Level[01.2006 - 11.2008] J200,210..E4AT |
35103-87403 |
US $19.04 |
||
|
35104B
|
35104B
90049-15048 Plug, Breather, No.1 (Atm)[01.2006 - 11.2008] J200 |
90049-15048 |
from US $0.95 |
||
|
35104C
|
35104C
90049-15050 Plug, Breather, No.1 (Atm)[01.2006 - 11.2008] J200 |
90049-15050 |
from US $0.95 |
||
|
35104F
|
35104F
90043-11285 Seal, Oil(For Manual Transmission Extension Housing)[01.2006 - 11.2008] J200 |
90043-11285 |
from US $6.45 |
||
|
35104R
|
35104R
90043-45040 Plug, No.1 (For Transaxle Case)[01.2006 - 11.2008] J200,210..E4AT |
90043-45040 |
US $2.62 |
||
|
35106A
|
35106A
90043-41041 Plug, Water Drain Cock(For Cylinder Block)[01.2006 - 11.2008] J200,210..E4AT |
90043-41041 |
from US $1.48 |
||
|
35106B
|
35106B
90044-30281 Gasket(For Oil Pan Drain Plug)[01.2006 - 11.2008] J200,210..E4AT |
90044-30281 |
from US $0.63 |
||
|
35106D
|
35106D
35106-97501
Pan Sub-Assy, Automatic Transmission Oil
[01.2006 - 11.2008] J200,210..E4AT |
35106-97501 |
— | ||
| replacements | |||||
|
35106D
|
35106D
35106-B1020 Pan Sub-Assy, Automatic Transmission Oil[01.2006 - 11.2008] J200,210..E4AT |
35106-B1020 |
US $116.44 |
||
|
35106D
|
35106D
35168-B1020 Gasket, Automatic Transmission Oil Pan[01.2006 - 11.2008] J200,210..E4AT |
35168-B1020 |
from US $23.41 |
||
|
35106D
|
35106D
90041-20203 Bolt (For Automatic Transmission Oil Pan)[01.2006 - 11.2008] J200,210..E4AT |
90041-20203 |
US $2.15 |
||
|
35106D
|
35106D
35106-B1020 Pan Sub-Assy, Automatic Transmission Oil[03.2009 - 09.2014] J200 |
35106-B1020 |
US $116.44 |
||
|
35108H
|
35108H
35108-B0011 Housing Sub-Assy, Extension[01.2006 - 11.2008] J200 |
35108-B0011 |
US $282.46 |
||
|
35168
|
35168
35168-B1020 Gasket, Automatic Transmission Oil Pan[03.2009 - 09.2014] J200 |
35168-B1020 |
from US $23.41 |
||
|
35394
|
35394
33449-87502 Magnet, Transmission[01.2006 - 11.2008] J200,210..E4AT |
33449-87502 |
US $3.84 |
||
|
35394
|
35394
33449-B2010 Magnet, TransaxleOIL CLEANER (FOR TRANSMISSION) [07.2009 - 09.2014] J200 |
33449-B2010 |
from US $3.58 |
||
|
35507D
|
35507D
35507-87402 Lever, Transmission Control Shaft[01.2006 - 11.2008] J200,210..E4AT |
35507-87402 |
US $17.20 |
||
|
35578B
|
35578B
33524-B0010 Bracket, Transmission Control Cable[01.2006 - 11.2008] J200,210..E4AT |
33524-B0010 |
US $13.98 |
||
|
35824
|
35824
35824-97501 Seal, Brake Cylinder[01.2006 - 11.2008] J200,210..E4AT |
35824-97501 |
from US $6.27 |
||
|
35847C
|
35847C
35847-97501 Tube, Transmission Lube Apply[01.2006 - 11.2008] J200 |
35847-97501 |
US $7.16 |
||
|
89413G
|
89413G
89413-97202 Sensor, Transmission Revolution[01.2006 - 11.2008] J200,210..E4AT |
89413-97202 |
from US $66.36 |
||
|
89413H
|
89413H
90043-01278 Ring, O[01.2006 - 11.2008] J200,210..E4AT |
90043-01278 |
US $3.76 |
||
|
3517497501
|
3517497501
35174-97501 Separator, Transaxle Housing Oil |
35174-97501 |
from US $1.90 |
||
|
9004119775
|
9004119775
90041-19775 Bolt, W/washer |
90041-19775 |
US $2.04 |
||
|
9004119865
|
9004119865
90041-19865 New Genuine Part |
90041-19865 |
US $1.16 |
||
|
9004119903
|
9004119903
90041-19903 Bolt (For Pawl Stopper Plate) |
90041-19903 |
US $1.75 |
||
|
9004119968
|
9004119968
90041-19968 New Genuine Part |
90041-19968 |
US $2.45 |
||
|
9004120004
|
9004120004
90041-20004 New Genuine Part |
90041-20004 |
US $2.18 |
||
|
9004120203
|
9004120203
90041-20203 Bolt (For Automatic Transmission Oil Pan) |
90041-20203 |
US $2.15 |
||
|
9004179109
|
9004179109
90041-79109 New Genuine Part |
90041-79109 |
US $1.31 |
||
|
9004250157
|
9004250157
90042-50157 Pin, Straight(For Manual Transmission Case) |
90042-50157 |
from US $1.12 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
G1406
|
G1406
G1406-97201 Connector Sub-Assy, Trans Solenoid[01.2006 - 11.2008] J200,210..E4AT |
G1406-97201 |
US $48.55 |
||
|
G1406A
|
G1406A
90043-01281 Ring, O(For Trans Solenoid Connector)O(FOR TRANS SOLENOID CONNECTOR) [01.2006 - 11.2008] J200,210..E4AT |
90043-01281 |
US $3.94 |
||
