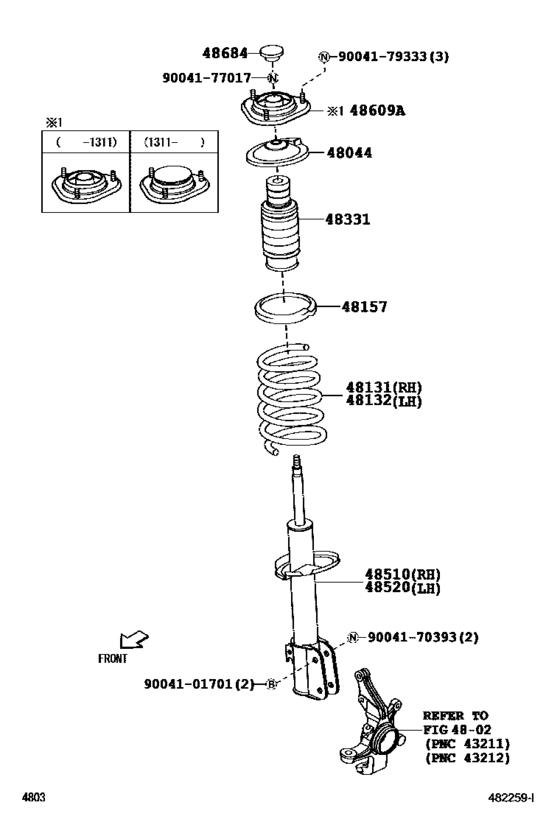

Front Spring & Shock Absorber ([01.2006 - 05.2016] (0601-1605)) Diagram Toyota RUSH
- Year
- 2006 - 2016
- Sales region
- Japan
- Frame
- J200E
- grade
- G
- body
- WG
- ENGINE
- 3SZVE
- TRANSMISSION
- ATM
- From
- 01.2006
- To
- 05.2016
- Gear Shift Type
- E4AT
- Drive Train
- 2WD
- Vehicle Model
- RUSH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-B4010 Seat Sub- Assy, Front Spring, No.1[01.2006 - 11.2008] J200,210 |
48044-B4010 |
US $32.42 |
||
|
48131
|
48131
48131-B4030 Spring, Front Coil, Rh[01.2006 - 11.2008] J200; J210 ヘッド ランプ−ＲＨＤ ＨＩＤ |
48131-B4030 |
US $117.06 |
||
|
48131
|
48131
48131-B4070
Spring, Front Coil, Rh
[01.2006 - 11.2008] J200 サスペンション−Ｄ−ＯＰＴ ＥＣサス（Ｗ／ＲＲスタビ）ＬＯＷ |
48131-B4070 |
— | ||
|
48132
|
48132
48131-B4030 Spring, Front Coil, Rh[01.2006 - 11.2008] J200; J210 ヘッド ランプ−ＲＨＤ ＨＩＤ |
48131-B4030 |
US $117.06 |
||
|
48132
|
48132
48131-B4070
Spring, Front Coil, Rh
[01.2006 - 11.2008] J200 サスペンション−Ｄ−ＯＰＴ ＥＣサス（Ｗ／ＲＲスタビ）ＬＯＷ |
48131-B4070 |
— | ||
|
48132
|
48132
48131-B4090 Spring, Front Coil, LhFRONT COIL, LH [08.2009 - 09.2014] J200 |
48131-B4090 |
US $117.06 |
||
|
48157
|
48157
48157-B4010 Insulator, Front Coil Spring, Upper[01.2006 - 11.2008] J200,210 |
48157-B4010 |
US $14.69 |
||
|
48331
|
48331
48331-B4010 Bumper, Front Spring, No.1[01.2006 - 11.2008] J200,210 |
48331-B4010 |
US $36.46 |
||
|
48510
|
48510
48510-B4030 Absorber Assy, Shock, Front[01.2006 - 11.2008] J200; J210 ヘッド ランプ−ＲＨＤ ＨＩＤ |
48510-B4030 |
US $377.02 |
||
|
48510
|
48510
48510-B4031
Absorber Assy, Shock, Front Rh
[11.2008 - 12.2013] J200; J210..G Ｌ パッケージ（Ａ） |
48510-B4031 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-B4032 Absorber Assy, Shock, Front Rh[11.2008 - 12.2013] J200; J210..G Ｌ パッケージ（Ａ） |
48510-B4032 |
from US $267.12 |
||
|
48510
|
48510
48510-B4032 Absorber Assy, Shock, Front Rh[01.2014 - 09.2014] J200 |
48510-B4032 |
from US $267.12 |
||
|
48510
|
48510
48510-B4070 Absorber Assy, Shock, Front Rh[01.2006 - 11.2008] J200 サスペンション−Ｄ−ＯＰＴ ＥＣサス（Ｗ／ＲＲスタビ）ＬＯＷ |
48510-B4070 |
US $331.97 |
||
| replacement | |||||
|
48510
|
48510
48510-B4072
Absorber Assy, Shock, Front Rh
[01.2006 - 11.2008] J200 サスペンション−Ｄ−ＯＰＴ ＥＣサス（Ｗ／ＲＲスタビ）ＬＯＷ |
48510-B4072 |
— | ||
|
48520
|
48520
48510-B4030 Absorber Assy, Shock, Front[01.2006 - 11.2008] J200; J210 ヘッド ランプ−ＲＨＤ ＨＩＤ |
48510-B4030 |
US $377.02 |
||
|
48520
|
48520
48510-B4031
Absorber Assy, Shock, Front Rh
[11.2008 - 12.2013] J200; J210..G Ｌ パッケージ（Ａ） |
48510-B4031 |
— | ||
| replacement | |||||
|
48520
|
48520
48510-B4032 Absorber Assy, Shock, Front Rh[11.2008 - 12.2013] J200; J210..G Ｌ パッケージ（Ａ） |
48510-B4032 |
from US $267.12 |
||
|
48520
|
48520
48510-B4032 Absorber Assy, Shock, Front Rh[01.2014 - 09.2014] J200 |
48510-B4032 |
from US $267.12 |
||
|
48520
|
48520
48510-B4070 Absorber Assy, Shock, Front Rh[01.2006 - 11.2008] J200 サスペンション−Ｄ−ＯＰＴ ＥＣサス（Ｗ／ＲＲスタビ）ＬＯＷ |
48510-B4070 |
US $331.97 |
||
| replacement | |||||
|
48520
|
48520
48510-B4072
Absorber Assy, Shock, Front Rh
[01.2006 - 11.2008] J200 サスペンション−Ｄ−ＯＰＴ ＥＣサス（Ｗ／ＲＲスタビ）ＬＯＷ |
48510-B4072 |
— | ||
|
48609A
|
48609A
48609-87403 Support Sub-Assy, Front Suspension[01.2006 - 11.2008] J200,210 ベアリング ツキ |
48609-87403 |
US $116.44 |
||
|
48609A
|
48609A
48609-B4020 Support Sub-Assy, Front Suspension[11.2013 - 09.2014] J200 ベアリング ツキ |
48609-B4020 |
US $59.99 |
||
|
48684
|
48684
48684-87701 Cover, Bearing Dust[01.2006 - 11.2008] J200,210 |
48684-87701 |
US $3.76 |
||
|
9004101701
|
9004101701
90041-01701 Bolt (For Steering Knuckle Rh) |
90041-01701 |
US $5.73 |
||
|
9004170393
|
9004170393
90041-70393 Nut (For Steering Knuckle Rh) |
90041-70393 |
US $3.76 |
||
|
9004177017
|
9004177017
90041-77017 Nut, Shock Absorber Piston |
90041-77017 |
US $4.30 |
||
|
9004179333
|
9004179333
90041-79333 Nut(For Front Support To Front Shock Absorber Rh) |
90041-79333 |
from US $2.76 |
||
