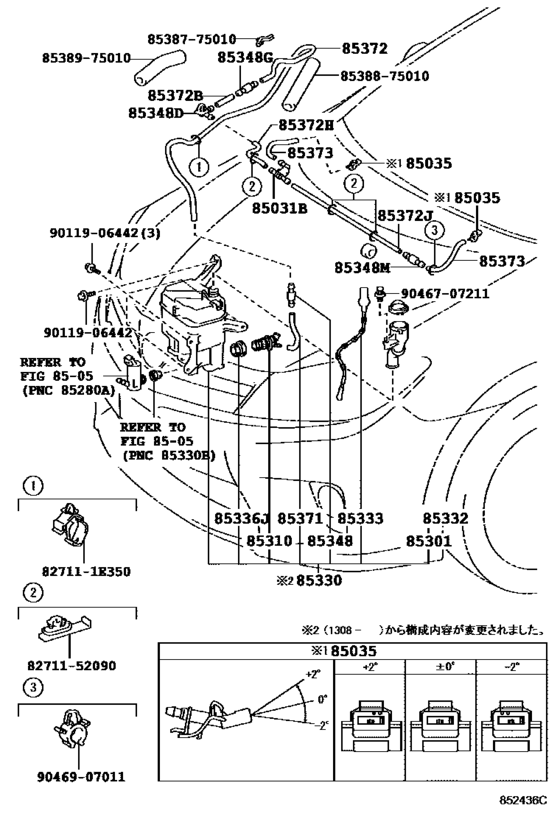

Windshield Washer ([11.2009 - 08.2013] ｱﾘ(ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ) (0911-1308)) Diagram Toyota SAI
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- AZK10
- grade
- S
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 11.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- SAI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85321-28020 Valve Sub-Assy, Washer[11.2009 - 08.2013] AZK10..CBU |
85321-28020 |
from US $10.65 |
||
|
85035
|
85035
85381-12330 Nozzle Sub-Assy, Washer[11.2009 - 08.2013] AZK10..CBU 角度 ０ |
85381-12330 |
from US $7.51 |
||
|
85035
|
85035
85381-12340
Nozzle Sub-Assy, Washer
[11.2009 - 08.2013] AZK10..CBU 角度 −２ |
85381-12340 |
— | ||
|
85035
|
85035
85381-12350 Nozzle Sub-Assy, Washer[11.2009 - 08.2013] AZK10..CBU 角度 ＋２ |
85381-12350 |
from US $7.51 |
||
|
85301
|
85301
85319-75010
Inlet Sub-Assy, Washer
[11.2009 - 08.2013] AZK10..CBU |
85319-75010 |
— | ||
|
85310
|
85310
85330-71010 Motor And Pump Assy, Windshield Washer[11.2009 - 08.2013] AZK10..CBU |
85330-71010 |
from US $81.40 |
||
|
85330
|
85330
85315-75010
Jar Assy, Windshield Washer
[11.2009 - 08.2013] AZK10..S..CBU |
85315-75010 |
— | ||
|
85330
|
85330
85315-75020
Jar Assy, Windshield Washer
[11.2009 - 08.2013] AZK10..S..CBU 寒冷地仕様 |
85315-75020 |
— | ||
|
85330
|
85330
85355-75021 Jar Assy, Windshield WasherWINDSHIELD WASHER [10.2010 - 11.2011] AZK10..S..CBU Ｓ“ＬＥＤエディション” ＊（Ａ）; AZK10..S..CBU Ｓ“ＬＥＤエディション” ＊（Ａ）＆寒冷地仕様 |
85355-75021 |
US $133.95 |
||
|
85330
|
85330
85355-75040 Jar Assy, Windshield Washer[08.2013 -] AZK10..CBU 寒冷地仕様 |
85355-75040 |
US $74.26 |
||
|
85332
|
85332
85316-75010
Cap, Windshield Washer Jar
[11.2009 - 08.2013] AZK10..CBU |
85316-75010 |
— | ||
|
85333
|
85333
85312-30080
Filter, Windshield Washer Jar
[11.2009 - 08.2013] AZK10..S..CBU |
85312-30080 |
— | ||
|
85333
|
85333
85318-47110
Filter, Windshield Washer Jar
[11.2009 - 08.2013] AZK10..S..CBU 寒冷地仕様 |
85318-47110 |
— | ||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[11.2009 - 08.2013] AZK10..CBU |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[11.2009 - 08.2013] AZK10..CBU |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85377-32220 Joint, Windshield Washer Elbow, No.1[11.2009 - 08.2013] AZK10..CBU |
85377-32220 |
from US $0.96 |
||
|
85348G
|
85348G
85375-10260 Joint, Windshield Washer Hose, No.1[11.2009 - 08.2013] AZK10..CBU |
85375-10260 |
from US $1.60 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[11.2009 - 08.2013] AZK10..CBU |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
85355-14481 Joint, Windshield Washer Elbow, No.1[11.2009 - 08.2013] AZK10..S..CBU |
85355-14481 |
US $0.98 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2009 - 08.2013] AZK10..S..CBU ＊Ｈ，Ｌ＝１５０,寒冷地仕様 |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2009 - 08.2013] AZK10..CBU Ｌ＝１４５０ |
90099-33080 |
US $9.43 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2009 - 08.2013] AZK10..CBU ＊Ｈ，Ｌ＝４０ |
90099-33080 |
US $9.43 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2009 - 08.2013] AZK10..CBU ＊Ｈ，Ｌ＝２８０ |
90099-33080 |
US $9.43 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2009 - 08.2013] AZK10..CBU ＊Ｈ，Ｌ＝６７０ |
90099-33080 |
US $9.43 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2009 - 08.2013] AZK10..CBU ＊Ｈ，Ｌ＝２４０ |
90099-33080 |
US $9.43 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.15 |
||
| replacement | |||||
|
827111E350
|
827111E350
82711-06050 Clamp, Door Scuff Plate, No.2 |
82711-06050 |
US $6.47 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.96 |
||
|
8538775010
|
8538775010
85387-75010
Clamp No.1 (for Windseield Washer)
|
85387-75010 |
— | ||
|
8538875010
|
8538875010
85388-75010
Clamp No.2 (for Windseield Washer)
|
85388-75010 |
— | ||
|
8538975010
|
8538975010
85389-75010
Packing, Windshield Washer Hose, No.1
|
85389-75010 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9046707211
|
9046707211
90467-07211 Clip(For Reserve Tank Outlet Hose No.2) |
90467-07211 |
from US $0.88 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.76 |
||
