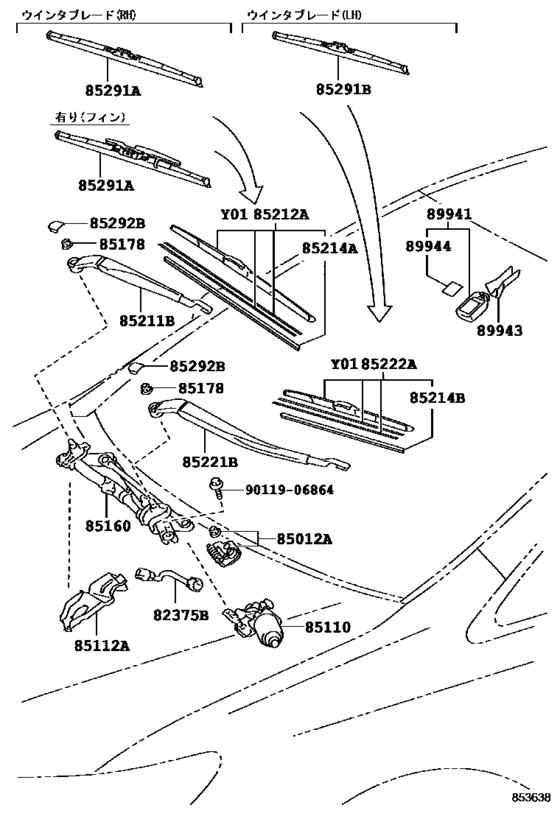

Windshield Wiper ([11.2009 - ] (0911- )) Diagram Toyota SAI
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- AZK10
- grade
- S
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 11.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- SAI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-75010 Wire, Wiper MotorWIPER MOTOR [11.2009 - 09.2010] AZK10..CBU |
82375-75010 |
US $16.16 |
||
|
85012A
|
85012A
85012-50010 Crank Sub-Assy, Front Wiper[11.2009 - 08.2013] AZK10..CBU |
85012-50010 |
US $31.14 |
||
|
85110
|
85110
85110-47100 Motor Assy, Windshield WiperWINDSHIELD WIPER [11.2009 - 11.2010] AZK10..CBU |
85110-47100 |
US $351.40 |
||
|
85110
|
85110
85110-47110
Motor Assy, Windshield Wiper
[11.2009 - 11.2010] AZK10..CBU 寒冷地仕様 |
85110-47110 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-47200 Motor Assy, Windshield WiperWINDSHIELD WIPER [11.2009 - 11.2010] AZK10..CBU 寒冷地仕様 |
85110-47200 |
US $354.20 |
||
|
85110
|
85110
85110-47190 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.2010 - 08.2013] AZK10..CBU |
85110-47190 |
US $351.40 |
||
|
85110
|
85110
85110-47200 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.2010 - 08.2013] AZK10..CBU 寒冷地仕様 |
85110-47200 |
US $354.20 |
||
|
85112A
|
85112A
85112-75010
Cover, Windshield Wiper Shaft, No.1
[11.2009 - 08.2013] AZK10..CBU |
85112-75010 |
— | ||
|
85160
|
85160
85150-75010 Link Assy, Windshield WiperWINDSHIELD WIPER [11.2009 - 09.2010] AZK10..CBU |
85150-75010 |
US $120.85 |
||
|
85160
|
85160
85150-75011 Link Assy, Windshield Wiper[09.2010 - 08.2013] AZK10..CBU |
85150-75011 |
US $109.56 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[11.2009 - 07.2012] AZK10..CBU |
90179-10223 |
US $1.60 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2012 - 08.2013] AZK10..CBU |
90182-10006 |
from US $1.01 |
||
|
85211B
|
85211B
85211-75010 Arm, Front Wiper, RhFR WIPER, RH [11.2009 - 08.2013] AZK10..CBU |
85211-75010 |
US $61.56 |
||
|
85212A
|
85212A
85212-68050 Blade, Fr Wiper, RhFR WIPER, RH [11.2009 - 08.2013] AZK10..CBU |
85212-68050 |
US $65.21 |
||
|
85214A
|
85214A
85214-68020 Rubber, Wiper, Rh[11.2009 - 08.2013] AZK10..CBU |
85214-68020 |
US $9.83 |
||
| replacement | |||||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[11.2009 - 08.2013] AZK10..CBU |
85214-52110 |
from US $14.40 |
||
|
85214B
|
85214B
85214-28090 Rubber, Wiper, Lh[11.2009 - 08.2013] AZK10..CBU |
85214-28090 |
from US $9.44 |
||
|
85221B
|
85221B
85221-75010 Arm, Front Wiper, LhFR WIPER, LH [11.2009 - 08.2013] AZK10..CBU |
85221-75010 |
US $75.24 |
||
|
85222A
|
85222A
85222-28180 Blade, Fr Wiper, Lh[11.2009 - 08.2013] AZK10..CBU |
85222-28180 |
US $27.51 |
||
|
85291A
|
85291A
85291-12090 Blade, Front Wiper, Winter, Rh[11.2009 - 08.2013] AZK10..CBU ウィンタブレード（ＤＯＰ） |
85291-12090 |
US $88.80 |
||
|
85291A
|
85291A
85291-68010 Blade, Front Wiper, Winter, RhFRONT WIPER, WINTER, RH [11.2009 - 08.2013] AZK10..CBU ウィンタブレード（ＤＯＰ）,有り（フィン） |
85291-68010 |
US $104.83 |
||
|
85291B
|
85291B
85291-44080 Blade Assy, Windshield Wiper[11.2009 - 08.2013] AZK10..CBU ウィンタブレード（ＤＯＰ） |
85291-44080 |
from US $32.95 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[11.2009 - 08.2013] AZK10..CBU |
85292-13010 |
from US $4 |
||
|
89941
|
89941
89941-42010 Sensor, Rain[08.2013 -] AZK10..G..CBU; AZK10..S..CBU “Ｃパッケージ” |
89941-42010 |
US $198.72 |
||
|
89943
|
89943
89943-47010 Cover, Rain SensorRAIN SENSOR [08.2013 -] AZK10..G..CBU; AZK10..S..CBU “Ｃパッケージ” |
89943-47010 |
US $23.56 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[08.2013 -] AZK10..G..CBU; AZK10..S..CBU “Ｃパッケージ” |
89944-42010 |
from US $13.26 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
