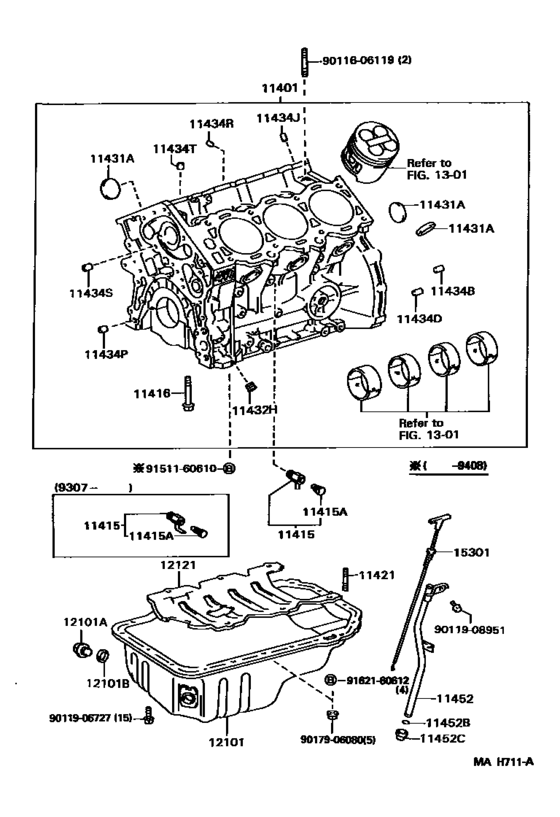

Cylinder Block ([07.1992 - ] (9207- )3VZFE) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69457 Block Sub-Assy, Cylinder[07.1992 - 07.1996] 3VZFE..VCV15 |
11401-69457 |
US $3,727.36 |
||
|
11415
|
11415
90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)[07.1993 - 07.1996] 3VZFE..VCV15 |
90910-09095 |
US $8.96 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[07.1993 - 07.1996] 3VZFE..VCV15 |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90910-02072
Bolt(For Crankshaft Bearing Cap Set)
[07.1992 - 07.1996] 3VZFE..VCV15 |
90910-02072 |
— | ||
| replacement | |||||
|
11416
|
11416
90910-02176 Bolt(For Crankshaft Bearing Cap Set)[07.1992 - 07.1996] 3VZFE..VCV15 |
90910-02176 |
from US $3.84 |
||
|
11421
|
11421
90116-06119 Bolt, Stud(For Oil Pan)[07.1992 - 07.1996] 3VZFE..VCV15 |
90116-06119 |
US $1.14 |
||
|
11431A
|
11431A
90331-35005 Plug, Tight, No.1(For Cylinder Block)[06.1994 - 07.1996] 3VZFE..VCV15 |
90331-35005 |
US $5.60 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[07.1992 - 06.1994] 3VZFE..VCV15 |
96411-43500 |
from US $3.86 |
||
|
11432H
|
11432H
90344-53015 Plug, W/head Taper Screw, No.1[07.1992 - 07.1996] 3VZFE..VCV15 |
90344-53015 |
US $4.80 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[07.1992 - 07.1996] 5SFE..SXV15 長さ＝２２，外径＝１０; 3VZFE..VCV15 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.03 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[07.1992 - 07.1996] 3VZFE..VCV15 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11434J
|
11434J
90253-16001 Pin, Straight (For Cylinder Head Set)[07.1992 - 07.1996] 3VZFE..VCV15 |
90253-16001 |
US $4.64 |
||
|
11434P
|
11434P
90253-11021 Pin, Ring[07.1992 - 07.1996] 3VZFE..VCV15 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.50 |
||
|
11434R
|
11434R
90250-06003 Pin, Straight[07.1992 - 07.1996] 3VZFE..VCV15 |
90250-06003 |
US $1.44 |
||
|
11434S
|
11434S
90253-11021 Pin, Ring[07.1992 - 07.1996] 3VZFE..VCV15 |
90253-11021 |
from US $1.50 |
||
|
11434T
|
11434T
90253-11021 Pin, Ring[07.1992 - 07.1996] 3VZFE..VCV15 |
90253-11021 |
from US $1.50 |
||
|
11452
|
11452
11452-62030 Guide, Oil Level Gage[07.1992 - 07.1996] 3VZFE..VCV15 |
11452-62030 |
US $28.25 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[07.1992 - 07.1996] 3VZFE..VCV15 |
96721-19010 |
from US $1.64 |
||
|
11452C
|
11452C
90405-10033 Union(For Oil Level Gage Guide)[07.1992 - 07.1996] 3VZFE..VCV15 |
90405-10033 |
US $5.53 |
||
|
12101
|
12101
12101-62050 Pan Sub-Assy, Oil[07.1992 - 07.1996] 3VZFE..VCV15 |
12101-62050 |
US $243.15 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[07.1992 - 07.1996] 3VZFE..VCV15 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[07.1992 - 07.1996] 3VZFE..VCV15 |
90341-T0004 |
US $4.04 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[07.1992 - 12.1993] 5SFE..SXV15; 3VZFE..VCV15 |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[07.1992 - 12.1993] 5SFE..SXV15; 3VZFE..VCV15 |
90430-12031 |
from US $0.88 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[12.1993 - 07.1996] 5SFE..SXV15; 3VZFE..VCV15 |
90430-12031 |
from US $0.88 |
||
|
12121
|
12121
12122-62020 Plate, Oil Pan Baffle, No.1[07.1992 - 07.1996] 3VZFE..VCV15 |
12122-62020 |
US $46.59 |
||
|
15301
|
15301
15301-62040 Gage Sub-Assy, Oil Level[07.1992 - 07.1996] 3VZFE..VCV15 |
15301-62040 |
US $13.69 |
||
|
9011606119
|
9011606119
90116-06119 Bolt, Stud(For Oil Pan) |
90116-06119 |
US $1.14 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9011908951
|
9011908951
90119-08951 Bolt (For Transmission Control Cable Bracket) |
90119-08951 |
US $0.83 |
||
| replacement | |||||
|
9011908951
|
9011908951
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.51 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
