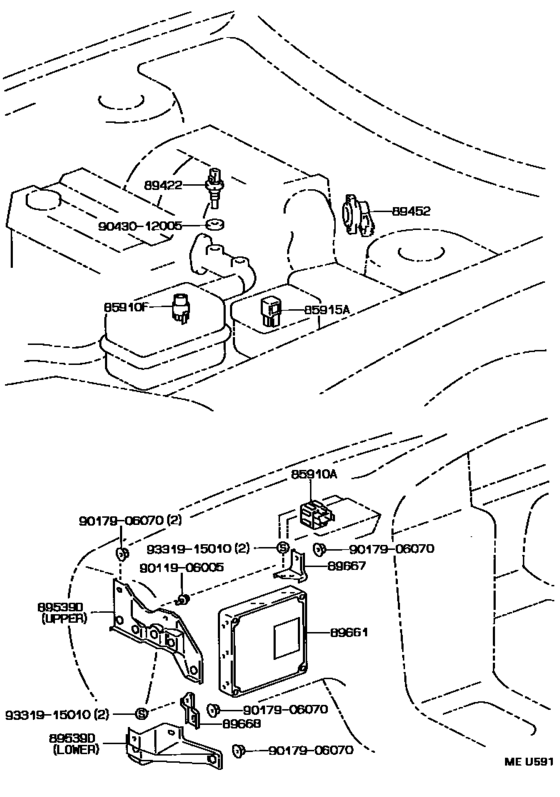

Electronic Fuel Injection System ([07.1992 - 08.1996] (9207-9608)VCV15) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-22040 Relay Assy, Circuit Opening (For Efi)[07.1992 - 07.1996] VCV15 |
85910-22040 |
US $80.72 |
||
|
85910F
|
85910F
90084-98009 Relay, Ignition, No.1[08.1994 - 07.1996] SXV15,VCV15 ＢＯＳＣＨ |
90084-98009 |
US $57.95 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[08.1994 - 07.1996] SXV15,VCV15 ＭＡＲＵＫＯ |
90987-02009 |
from US $33.87 |
||
|
85915A
|
85915A
90084-98010
Relay, Main
[08.1994 - 07.1996] VCV15 ＢＯＳＣＨ |
90084-98010 |
— | ||
|
85915A
|
85915A
90987-04003 Relay, Ignition, No.1[07.1992 - 08.1994] VCV15 |
90987-04003 |
from US $31.32 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[07.1992 - 07.1996] SXV15,VCV15 |
89422-20010 |
from US $36.78 |
||
|
89452
|
89452
89452-32060 Sensor, Throttle Position (For E.f.i.)[07.1992 - 07.1996] VCV15 |
89452-32060 |
US $174.72 |
||
|
89539D
|
89539D
89539-33060 Bracket, Computer[09.1993 - 07.1996] VCV15 UPPER |
89539-33060 |
US $19.80 |
||
|
89539D
|
89539D
89539-33070 Bracket, Computer[09.1993 - 07.1996] VCV15 LOWER |
89539-33070 |
US $26.50 |
||
|
89661
|
89661
89661-33200 Computer, Engine Control[07.1992 - 07.1996] VCV15 |
89661-33200 |
US $2,082.08 |
||
|
89667
|
89667
89667-33020 Bracket, Engine Control Computer[07.1992 - 07.1996] VCV15 |
89667-33020 |
US $7.28 |
||
|
89668
|
89668
89668-33030 Bracket, Engine Control Computer, No.2[07.1992 - 07.1996] VCV15 |
89668-33030 |
US $7.28 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
