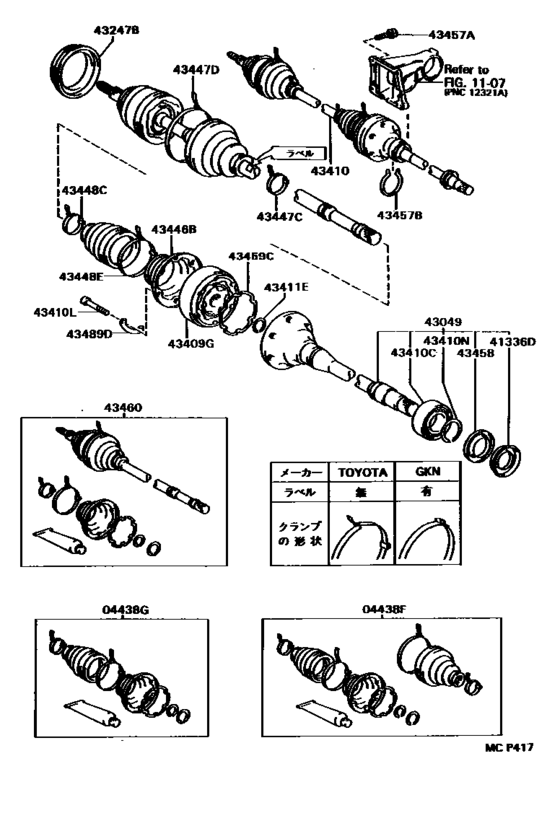

Front Drive Shaft ([07.1992 - ] RH (9207- )VCV15) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-06060 Boot Kit, Front Drive Shaft, In & Outboard, Rh[03.1993 - 07.1996] VCV15 |
04438-06060 |
US $165.98 |
||
| replacement | |||||
|
04438F
|
04438F
04438-06062 Boot Kit, Front Drive Shaft, In & Outboard[03.1993 - 07.1996] VCV15 |
04438-06062 |
US $165.98 |
||
|
04438G
|
04438G
04438-06050 Boot Kit, Front Drive Shaft Inboard Joint, Rh[03.1993 - 07.1996] VCV15 |
04438-06050 |
US $88.82 |
||
| replacement | |||||
|
04438G
|
04438G
04438-06052 Boot Kit, Front Drive Shaft Inboard Joint, Rh[03.1993 - 07.1996] VCV15 |
04438-06052 |
US $109.20 |
||
|
41336D
|
41336D
41336-06020 Cover, Front Drive Shaft Dust, Rh[03.1993 - 07.1996] VCV15 |
41336-06020 |
US $11.53 |
||
|
43049
|
43049
43049-06030 Shaft Sub-Assy, Front Drive Flange[03.1993 - 07.1996] VCV15 |
43049-06030 |
US $396.03 |
||
|
43247B
|
43247B
43247-06010 Deflector, Front Wheel Bearing Dust, Rh No.2[10.1993 - 09.1994] VCV15..CP 3.0G ﾊﾟﾂｹ-ｼﾞ OR 2.2G ﾊﾟﾂｹ-ｼﾞ |
43247-06010 |
US $39.31 |
||
|
43247B
|
43247B
43247-06020
Deflector, Front Wheel Bearing Dust, Rh No.2
[12.1992 - 08.1994] SXV15;VCV15..CP |
43247-06020 |
— | ||
|
43409G
|
43409G
43409-06010 Joint Sub-Assy, Front Drive Shaft Cross Groove, Rh[07.1992 - 07.1996] VCV15 |
43409-06010 |
US $375.65 |
||
|
43410
|
43410
43410-06090 Shaft Assy, Front Drive, Rh[03.1993 - 08.1994] VCV15 |
43410-06090 |
US $1,067.25 |
||
| replacement | |||||
|
43410
|
43410
43410-06180
Shaft Assy, Front Drive, Rh
[03.1993 - 08.1994] VCV15 |
43410-06180 |
— | ||
|
43410
|
43410
43410-06100 Shaft Assy, Front Drive, Rh[03.1993 - 08.1994] VCV15 ｱﾘ(*66) |
43410-06100 |
US $1,067.25 |
||
| replacement | |||||
|
43410
|
43410
43410-06180
Shaft Assy, Front Drive, Rh
[03.1993 - 08.1994] VCV15 ｱﾘ(*66) |
43410-06180 |
— | ||
|
43410C
|
43410C
90369-41001
Bearing(For Rear Drive Shaft)
[07.1992 - 07.1996] VCV15 |
90369-41001 |
— | ||
| replacement | |||||
|
43410C
|
43410C
90363-41003 Bearing (For Front Drive Shaft)[07.1992 - 07.1996] VCV15 |
90363-41003 |
from US $26.38 |
||
|
43410L
|
43410L
90080-11034 Bolt (For Front Drive Shaft Cross Groove Joint Rh)[07.1992 - 07.1996] VCV15 |
90080-11034 |
US $3.93 |
||
|
43410N
|
43410N
90080-52013
Ring, Hole Snap (For Front Drive Shaft Rh)
[07.1992 - 07.1996] VCV15 |
90080-52013 |
— | ||
|
43411E
|
43411E
90080-52036
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[07.1992 - 07.1996] VCV15 |
90080-52036 |
— | ||
|
43446B
|
43446B
43446-03020 Cover, Front Axle Inboard Joint, Rh[07.1992 - 07.1996] VCV15 |
43446-03020 |
US $41.35 |
||
|
43447C
|
43447C
90080-46084 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1994 - 07.1996] SXV15,VCV15 |
90080-46084 |
US $4.37 |
||
|
43447C
|
43447C
90080-46106
Clamp (For Front Axle Outboard Joint Boot Rh)
[03.1993 - 08.1994] VCV15 |
90080-46106 |
— | ||
|
43447D
|
43447D
90080-46109 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[07.1992 - 07.1996] VCV15 |
90080-46109 |
US $6.41 |
||
|
43448C
|
43448C
90080-46106
Clamp (For Front Axle Outboard Joint Boot Rh)
[09.1993 - 07.1996] VCV15 |
90080-46106 |
— | ||
|
43448E
|
43448E
90080-46173 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[03.1993 - 07.1996] VCV15 |
90080-46173 |
US $6.12 |
||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[07.1992 - 07.1996] SXV15,VCV15 ＊１０−１．２５ＰＸ１９．８−８．３ |
90119-10461 |
from US $1.17 |
||
|
43457B
|
43457B
90521-78002 Ring, Hole Snap(For Rear Drive Shaft)[07.1992 - 07.1996] VCV15 |
90521-78002 |
from US $2.56 |
||
|
43458
|
43458
43458-06020 Cover, Front Drive Shaft Dust[03.1993 - 07.1996] VCV15 |
43458-06020 |
US $10.40 |
||
|
43459C
|
43459C
43459-06010
Gasket, Front Drive Shaft Cross Groove Joint, Rh
[07.1992 - 07.1996] VCV15 |
43459-06010 |
— | ||
|
43460
|
43460
43470-09170 Shaft Assy, Front Drive Outboard Joint, Rh[03.1993 - 03.1996] VCV15 |
43470-09170 |
from US $391.74 |
||
|
43460
|
43460
43470-09180 Shaft Assy, Front Drive Outboard Joint, Rh[03.1993 - 07.1996] VCV15 ｱﾘ(*66) |
43470-09180 |
from US $391.74 |
||
|
43489D
|
43489D
43489-03010 Washer, Front Drive Shaft Cross Groove Joint, Rh[07.1992 - 07.1996] VCV15 |
43489-03010 |
US $10.19 |
||
