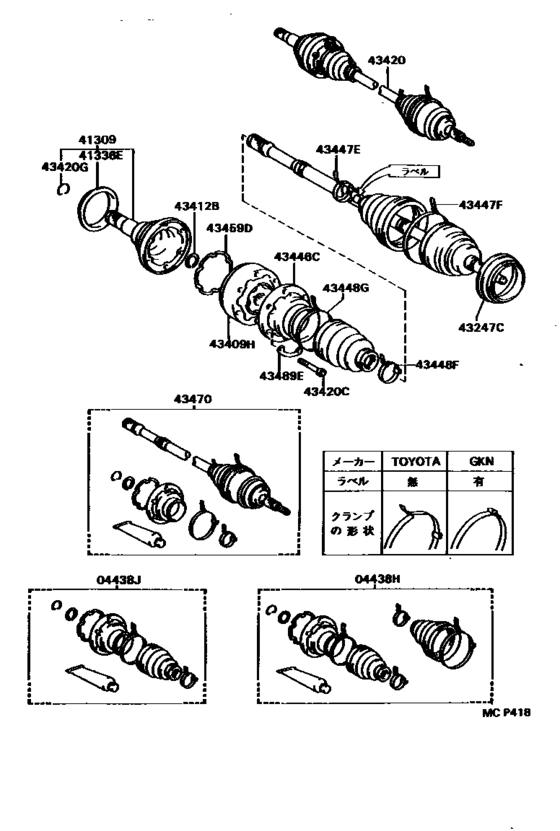

Front Drive Shaft ([07.1992 - ] LH (9207- )VCV15) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-06060 Boot Kit, Front Drive Shaft, In & Outboard, Rh[03.1993 - 07.1996] VCV15 |
04438-06060 |
US $165.98 |
||
| replacement | |||||
|
04438H
|
04438H
04438-06062 Boot Kit, Front Drive Shaft, In & Outboard[03.1993 - 07.1996] VCV15 |
04438-06062 |
US $165.98 |
||
|
04438J
|
04438J
04438-06050 Boot Kit, Front Drive Shaft Inboard Joint, Rh[03.1993 - 07.1996] VCV15 |
04438-06050 |
US $88.82 |
||
| replacement | |||||
|
04438J
|
04438J
04438-06052 Boot Kit, Front Drive Shaft Inboard Joint, Rh[03.1993 - 07.1996] VCV15 |
04438-06052 |
US $109.20 |
||
|
41309
|
41309
41309-06030 Shaft Sub-Assy, Differential Side Gear, Lh[03.1993 - 07.1996] VCV15 |
41309-06030 |
US $254.80 |
||
|
41336E
|
41336E
41336-06040
Cover, Front Drive Shaft Dust, Lh
[03.1993 - 07.1996] VCV15 |
41336-06040 |
— | ||
| replacement | |||||
|
41336E
|
41336E
41336-17020 Cover, Dust(For Differential Side Gear Shaft)[03.1993 - 07.1996] VCV15 |
41336-17020 |
US $6.29 |
||
|
43247C
|
43247C
43247-06010 Deflector, Front Wheel Bearing Dust, Rh No.2[10.1993 - 09.1994] VCV15..CP 3.0G ﾊﾟﾂｹ-ｼﾞ OR 2.2G ﾊﾟﾂｹ-ｼﾞ |
43247-06010 |
US $39.31 |
||
|
43247C
|
43247C
43247-06020
Deflector, Front Wheel Bearing Dust, Rh No.2
[12.1992 - 08.1994] SXV15;VCV15..CP |
43247-06020 |
— | ||
|
43409H
|
43409H
43409-06010 Joint Sub-Assy, Front Drive Shaft Cross Groove, Rh[07.1992 - 07.1996] VCV15 |
43409-06010 |
US $375.65 |
||
|
43412B
|
43412B
90080-52036
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[07.1992 - 07.1996] VCV15 |
90080-52036 |
— | ||
|
43420
|
43420
43420-06090 Shaft Assy, Front Drive, Lh[03.1993 - 08.1994] VCV15 |
43420-06090 |
US $955.14 |
||
| replacement | |||||
|
43420
|
43420
43420-06180 Shaft Assy, Front Drive, Lh[03.1993 - 08.1994] VCV15 |
43420-06180 |
US $962.42 |
||
|
43420
|
43420
43420-06100 Shaft Assy, Front Drive, Lh[03.1993 - 08.1994] VCV15 ｱﾘ(*66) |
43420-06100 |
US $1,052.69 |
||
| replacement | |||||
|
43420
|
43420
43420-06180 Shaft Assy, Front Drive, Lh[03.1993 - 08.1994] VCV15 ｱﾘ(*66) |
43420-06180 |
US $962.42 |
||
|
43420C
|
43420C
90080-11034 Bolt (For Front Drive Shaft Cross Groove Joint Rh)[07.1992 - 07.1996] VCV15 |
90080-11034 |
US $3.93 |
||
|
43420G
|
43420G
90080-52017
Ring, Hole Snap (For Front Drive Shaft Lh)
[07.1992 - 07.1996] VCV15 |
90080-52017 |
— | ||
|
43446C
|
43446C
43446-03020 Cover, Front Axle Inboard Joint, Rh[07.1992 - 07.1996] VCV15 |
43446-03020 |
US $41.35 |
||
|
43447E
|
43447E
90080-46084 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1994 - 07.1996] SXV15,VCV15 |
90080-46084 |
US $4.37 |
||
|
43447E
|
43447E
90080-46106
Clamp (For Front Axle Outboard Joint Boot Rh)
[03.1993 - 08.1994] VCV15 |
90080-46106 |
— | ||
|
43447F
|
43447F
90080-46109 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[07.1992 - 07.1996] VCV15 |
90080-46109 |
US $6.41 |
||
|
43448F
|
43448F
90080-46106
Clamp (For Front Axle Outboard Joint Boot Rh)
[09.1993 - 07.1996] VCV15 |
90080-46106 |
— | ||
|
43448G
|
43448G
90080-46173 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[03.1993 - 07.1996] VCV15 |
90080-46173 |
US $6.12 |
||
|
43459D
|
43459D
43459-06010
Gasket, Front Drive Shaft Cross Groove Joint, Rh
[07.1992 - 07.1996] VCV15 |
43459-06010 |
— | ||
|
43470
|
43470
43470-09170 Shaft Assy, Front Drive Outboard Joint, Rh[03.1993 - 03.1996] VCV15 |
43470-09170 |
from US $391.74 |
||
|
43470
|
43470
43470-09180 Shaft Assy, Front Drive Outboard Joint, Rh[03.1993 - 07.1996] VCV15 ｱﾘ(*66) |
43470-09180 |
from US $391.74 |
||
|
43489E
|
43489E
43489-03010 Washer, Front Drive Shaft Cross Groove Joint, Rh[07.1992 - 07.1996] VCV15 |
43489-03010 |
US $10.19 |
||
