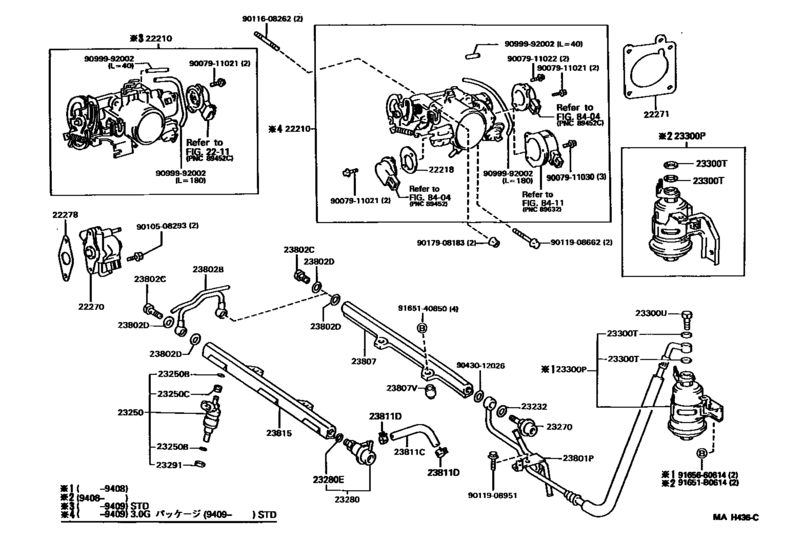

Fuel Injection System ([07.1992 - ] (9207- )3VZFE) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-62011 Body Assy, Throttle[09.1992 - 08.1994] 3VZFE..VCV15 3.0G ﾊﾟﾂｹ-ｼﾞ |
22030-62011 |
US $1,878.24 |
||
|
22210
|
22210
22210-62121 Body Assy, Throttle[09.1992 - 08.1994] 3VZFE..VCV15 |
22210-62121 |
US $679.95 |
||
| replacement | |||||
|
22210
|
22210
22210-62200 Body Assy, Throttle[09.1992 - 08.1994] 3VZFE..VCV15 |
22210-62200 |
US $679.95 |
||
|
22218
|
22218
22218-42190 Cover(For Throttle Body)[07.1992 - 08.1994] 3VZFE..VCV15 3.0G ﾊﾟﾂｹ-ｼﾞ |
22218-42190 |
US $9.61 |
||
|
22270
|
22270
22270-62020
Valve Assy, Idle Speed Control(For Thlottle Body)
[07.1992 - 07.1996] 3VZFE..VCV15 |
22270-62020 |
— | ||
|
22271
|
22271
22271-62030 Gasket, Throttle Body[07.1992 - 07.1996] 3VZFE..VCV15 |
22271-62030 |
US $1.92 |
||
|
22278
|
22278
22278-62030
Gasket, Idle Speed Control Valve
[07.1992 - 07.1996] 3VZFE..VCV15 |
22278-62030 |
— | ||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[07.1992 - 07.1996] 5SFE..SXV15; 3VZFE..VCV15 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-62030 Injector Assy, Fuel[07.1992 - 07.1996] 3VZFE..VCV15 |
23209-62030 |
from US $255.08 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[07.1992 - 07.1996] 3VZFE..VCV15 |
90301-07001 |
from US $2.91 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[07.1992 - 07.1996] 3VZFE..VCV15 |
90480-13005 |
from US $2.46 |
||
|
23270
|
23270
23270-62010
Damper Assy, Fuel Pressure Pulsation
[07.1992 - 07.1996] 3VZFE..VCV15 |
23270-62010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[07.1992 - 07.1996] 3VZFE..VCV15 |
23207-20011 |
US $105.08 |
||
|
23280
|
23280
23280-62020
Regulator Assy, Fuel Pressure
[07.1992 - 07.1996] 3VZFE..VCV15 |
23280-62020 |
— | ||
|
23280E
|
23280E
90301-09002 Ring, O(For Fuel Pressure Regulator)[07.1992 - 07.1996] 3VZFE..VCV15 |
90301-09002 |
from US $1.25 |
||
|
23291
|
23291
23291-62010 Insulator, Injector Vibration[07.1992 - 07.1996] 3VZFE..VCV15 |
23291-62010 |
from US $5.76 |
||
|
23300P
|
23300P
23300-29045 Filter, Fuel(For Efi)[08.1994 - 07.1996] 5SFE..SXV15; 3VZFE..VCV15 |
23300-29045 |
US $103.38 |
||
|
23300P
|
23300P
23300-79305 Filter, Fuel(For Efi)[07.1992 - 08.1994] 5SFE..SXV15; 3VZFE..VCV15 |
23300-79305 |
from US $84.98 |
||
|
23300T
|
23300T
90430-12026 Gasket[07.1992 - 07.1996] 5SFE..SXV15; 3VZFE..VCV15 |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[07.1992 - 02.1996] 5SFE..SXV15; 3VZFE..VCV15 |
90401-12097 |
from US $2.98 |
||
|
23300U
|
23300U
96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)[02.1996 - 07.1996] 5SFE..SXV15; 3VZFE..VCV15 |
96341-11200 |
US $2.72 |
||
|
23801P
|
23801P
23801-62040
Pipe Sub-Assy, Fuel, No.1
[07.1992 - 07.1996] 3VZFE..VCV15 |
23801-62040 |
— | ||
|
23802B
|
23802B
23812-62030 Pipe Sub-Assy, Fuel, No.2[07.1992 - 07.1996] 3VZFE..VCV15 |
23812-62030 |
US $51.25 |
||
|
23802C
|
23802C
90401-12015 Bolt, Union(For Fuel Pipe No.2)[07.1992 - 07.1996] 3VZFE..VCV15 |
90401-12015 |
US $5.07 |
||
|
23802D
|
23802D
90430-12026 Gasket[07.1992 - 07.1996] 3VZFE..VCV15 |
90430-12026 |
from US $0.88 |
||
|
23807
|
23807
23814-62030 Pipe Sub-Assy, Fuel Delivery[07.1992 - 07.1996] 3VZFE..VCV15 |
23814-62030 |
US $132.50 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[07.1992 - 07.1996] 3VZFE..VCV15 |
90561-08020 |
from US $3.20 |
||
|
23811C
|
23811C
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[07.1992 - 07.1996] 3VZFE..VCV15 ＊Ｈ，Ｌ＝２００ |
95333-06020 |
— | ||
| replacement | |||||
|
23811C
|
23811C
95337-06020 Hose, Differential Pressure Control[07.1992 - 07.1996] 3VZFE..VCV15 ＊Ｈ，Ｌ＝２００ |
95337-06020 |
from US $9.12 |
||
|
23811D
|
23811D
90467-11065 Clip(For Fuel Hose No.2)[04.1995 - 07.1996] 3VZFE..VCV15 |
90467-11065 |
US $2.56 |
||
|
23811D
|
23811D
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[07.1992 - 04.1995] 3VZFE..VCV15 |
96135-41100 |
— | ||
| replacement | |||||
|
23811D
|
23811D
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[07.1992 - 04.1995] 3VZFE..VCV15 |
96135-51100 |
from US $1.85 |
||
|
23815
|
23815
23815-62030 Pipe, Fuel Delivery, No.2[07.1992 - 07.1996] 3VZFE..VCV15 |
23815-62030 |
US $132.50 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9007911022
|
9007911022
90079-11022 New Genuine Part |
90079-11022 |
US $0.96 |
||
|
9007911030
|
9007911030
90079-11030
New Genuine Part
|
90079-11030 |
— | ||
|
9010508293
|
9010508293
90105-08293 New Genuine Part |
90105-08293 |
US $1.89 |
||
|
9011608262
|
9011608262
90116-08262 Bolt, Stud(For Manifold To Cylinder Head) |
90116-08262 |
US $1.40 |
||
|
9011908662
|
9011908662
90119-08662
New Genuine Part
|
90119-08662 |
— | ||
|
9011908951
|
9011908951
90119-08951 Bolt (For Transmission Control Cable Bracket) |
90119-08951 |
US $0.83 |
||
| replacement | |||||
|
9011908951
|
9011908951
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $2.56 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.88 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9165140850
|
9165140850
91651-40850 New Genuine Part |
91651-40850 |
US $2.77 |
||
|
9165660614
|
9165660614
91656-60614
New Genuine Part
|
91656-60614 |
— | ||
