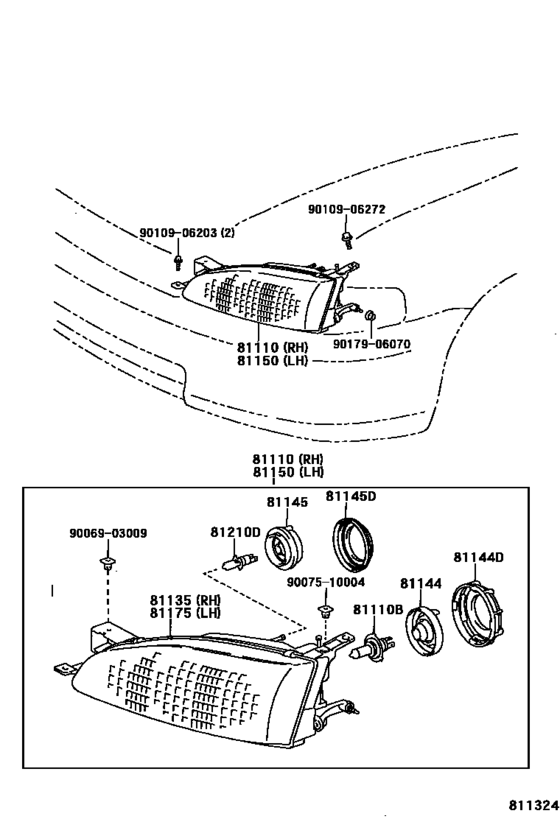

Headlamp ([08.1994 - 08.1996] (9408-9608)) Diagram Toyota SCEPTER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- VCV15
- body
- CP
- ENGINE
- 3VZFE
- From
- 10.1993
- To
- 07.1996
- Vehicle Model
- SCEPTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-06021
Headlamp Assy, Rh
[09.1993 - 08.1994] SXV15,VCV15 |
81110-06021 |
— | ||
|
81110
|
81110
81110-06042 Headlamp Assy, Rh[08.1994 - 07.1996] SXV15,VCV15 |
81110-06042 |
US $546 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[07.1992 - 08.1994] SXV15,VCV15 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [07.1992 - 08.1994] SXV15,VCV15 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[08.1994 - 07.1996] SXV15,VCV15 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.1994 - 07.1996] SXV15,VCV15 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81135
|
81135
81105-06020 Unit Assy, Headlamp, Rh[07.1992 - 08.1994] SXV15,VCV15 |
81105-06020 |
US $687.23 |
||
|
81135
|
81135
81130-06040 Unit Assy, Headlamp, Rh[08.1994 - 07.1996] SXV15,VCV15 |
81130-06040 |
US $420.78 |
||
|
81144
|
81144
81117-06010 Cover, Headlamp, No.1[07.1992 - 07.1996] SXV15,VCV15 |
81117-06010 |
US $12.67 |
||
|
81144D
|
81144D
81118-06010 Cap, Headlamp Locking[07.1992 - 07.1996] SXV15,VCV15 |
81118-06010 |
US $10.05 |
||
|
81145
|
81145
81117-06020 Cover, Headlamp, No.2[07.1992 - 07.1996] SXV15,VCV15 |
81117-06020 |
US $12.67 |
||
|
81145D
|
81145D
81118-06020 Cap, Headlamp Locking No.2[07.1992 - 07.1996] SXV15,VCV15 |
81118-06020 |
US $10.05 |
||
|
81150
|
81150
81150-06021 Headlamp Assy, Lh[09.1993 - 08.1994] SXV15,VCV15 |
81150-06021 |
US $764.40 |
||
|
81150
|
81150
81150-06042 Headlamp Assy, Lh[08.1994 - 07.1996] SXV15,VCV15 |
81150-06042 |
US $546 |
||
|
81175
|
81175
81106-06020 Unit Assy, Headlamp, Lh[07.1992 - 08.1994] SXV15,VCV15 |
81106-06020 |
US $687.23 |
||
|
81175
|
81175
81170-06040 Unit Assy, Headlamp, Lh[08.1994 - 07.1996] SXV15,VCV15 |
81170-06040 |
US $420.78 |
||
|
81210D
|
81210D
90981-13027 Bulb(For Headlamp, No.2)[07.1992 - 07.1996] SXV15,VCV15 １２Ｖ ５５Ｗ，ハロゲン |
90981-13027 |
from US $8.56 |
||
|
9006903009
|
9006903009
90069-03009 New Genuine Part |
90069-03009 |
US $2.77 |
||
|
9007510004
|
9007510004
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
US $2.08 |
||
|
9010906203
|
9010906203
90109-06203
Retainer, Headlamp
|
90109-06203 |
— | ||
| replacement | |||||
|
9010906203
|
9010906203
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.92 |
||
|
9010906272
|
9010906272
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.92 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
