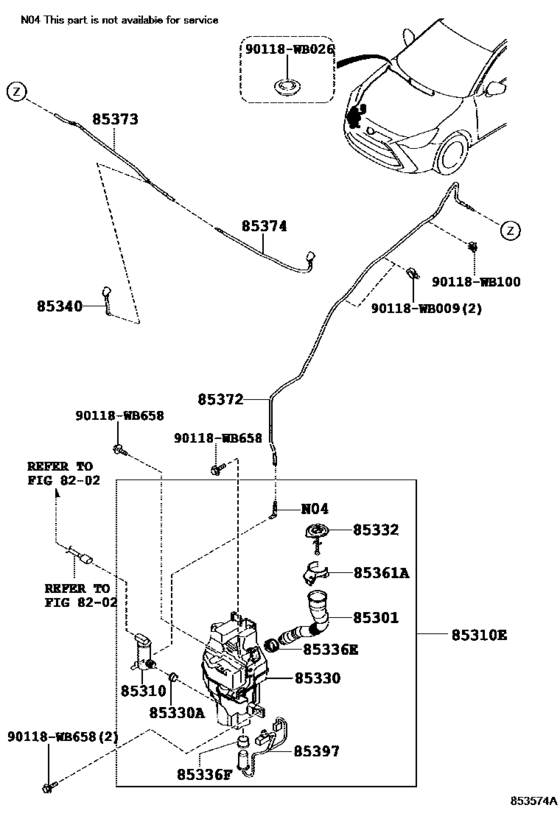

Windshield Washer ([06.2015 - ] F.WASHER TANK ; LARGE (1506- )CND,USA) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DB7P
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- H
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- CND
- Vsc
- VSC
- Destination 2
- NA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85301
|
85301
85319-WB001
Inlet Sub-Assy, Washer
[06.2015 -] DB7P,DD1B |
85319-WB001 |
— | ||
|
85310
|
85310
85330-WB001
Motor And Pump Assy, Windshield Washer
[06.2015 -] DB7P,DD1B |
85330-WB001 |
— | ||
|
85310E
|
85310E
85310-WB003
Jar & Pump Assy, Washer
[03.2016 -] DB7P,DD1B..CND,USA |
85310-WB003 |
— | ||
|
85330
|
85330
85315-WB002
Jar Assy, Windshield Washer
[06.2015 -] DB7P,DD1B..CND,USA |
85315-WB002 |
— | ||
|
85330A
|
85330A
90118-WB023
Bush, Windshield Washer Jar
[06.2015 -] DB7P,DD1B |
90118-WB023 |
— | ||
|
85332
|
85332
85316-WB001
Cap, Windshield Washer Jar
[06.2015 -] DB7P,DD1B |
85316-WB001 |
— | ||
|
85336E
|
85336E
90118-WB024
Packing, Windshield Washer Inlet Hose
[06.2015 -] DB7P,DD1B |
90118-WB024 |
— | ||
|
85336F
|
85336F
90118-WB025
Packing, Windshield Washer Jar
[06.2015 -] DB7P,DD1B..CND,USA |
90118-WB025 |
— | ||
|
85340
|
85340
85381-WB003
Nozzle And Hose Assy, Windshield Washer
[06.2015 -] DB7P,DD1B |
85381-WB003 |
— | ||
|
85361A
|
85361A
85337-WB001
Bracket, Windshield Washer, No.1
[06.2015 -] DB7P,DD1B |
85337-WB001 |
— | ||
|
85372
|
85372
90118-WB084
Hose, Windshield Washer (From Joint To Joint), No.1
[06.2015 -] DB7P,DD1B |
90118-WB084 |
— | ||
|
85373
|
85373
90118-WBA15
Hose, Windshield Washer (From Joint To Nozzle)
[06.2015 -] DB7P,DD1B |
90118-WBA15 |
— | ||
|
85374
|
85374
85382-WB001
Hose, Windshield Washer (From Nozzle To Nozzle)
[06.2015 -] DB7P,DD1B |
85382-WB001 |
— | ||
|
85397
|
85397
85397-WB003
Switch Assy,level Warning
[06.2015 -] DB7P,DD1B..CND,USA |
85397-WB003 |
— |
