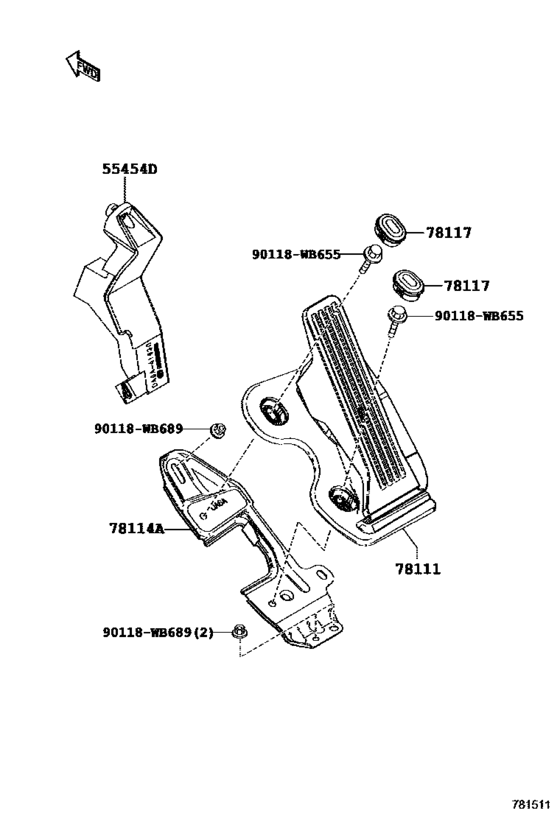

Accelerator Link ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55454D
|
55454D
55454-WB001
Pad, Instrument Panel Safety
[08.2015 -] DD1C,1D |
55454-WB001 |
— | ||
|
78111
|
78111
78101-WB005
Pedal, Accelerator
[02.2016 - 09.2016] DB7P,DD1D |
78101-WB005 |
— | ||
|
78111
|
78111
78101-WB007
Pedal, Accelerator
[09.2016 -] DB7P,DD1D |
78101-WB007 |
— | ||
|
78114A
|
78114A
78108-WB001
Bracket, Accelerator Pedal Support
[08.2015 -] DD1C,1D |
78108-WB001 |
— | ||
|
78117
|
78117
78117-WB001
Cushion (For Accelerator Rod)
[08.2015 -] DD1C,1D |
78117-WB001 |
— |
