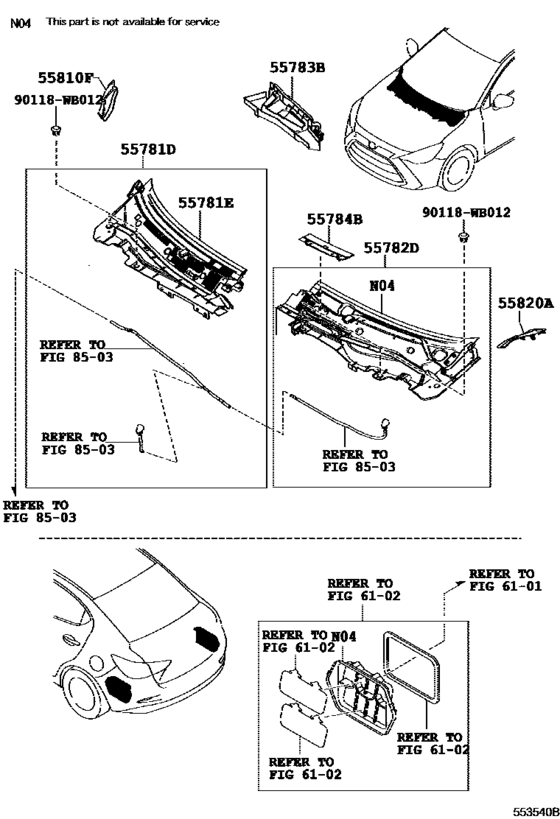

Cowl Panel & Windshield Glass ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55781D
|
55781D
55781-WB001
Louver, Cowl Top Ventilator, Rh
[08.2015 - 01.2017] DD1C,1D |
55781-WB001 |
— | ||
|
55781D
|
55781D
55781-WB002
Louver, Cowl Top Ventilator, Rh
[01.2017 -] DB7P,DD1# |
55781-WB002 |
— | ||
|
55781E
|
55781E
55783-WB002
Louver Sub-Assy, Cowl Top Ventilator
[08.2015 -] DD1C,1D |
55783-WB002 |
— | ||
|
55782D
|
55782D
55782-WB001
Louver, Cowl Top Ventilator, Lh
[08.2015 - 01.2017] DD1C,1D |
55782-WB001 |
— | ||
|
55782D
|
55782D
55782-WB002
Louver, Cowl Top Ventilator, Lh
[01.2017 -] DB7P,DD1# |
55782-WB002 |
— | ||
|
55783B
|
55783B
55783-WB003
Louver, Cowl Top Ventilator, Center No.1
[08.2015 -] DD1C,1D |
55783-WB003 |
— | ||
|
55784B
|
55784B
55784-WB001
Louver, Cowl Top Ventilator, Center No.2
[08.2015 -] DD1C,1D |
55784-WB001 |
— | ||
|
55810F
|
55810F
55810-WB001
Ventilator Assy, Front
[08.2015 -] DD1C,1D |
55810-WB001 |
— | ||
|
55820A
|
55820A
55820-WB001
Ventilator Assy, Cowl Side, Lh
[08.2015 -] DD1C,1D |
55820-WB001 |
— |
