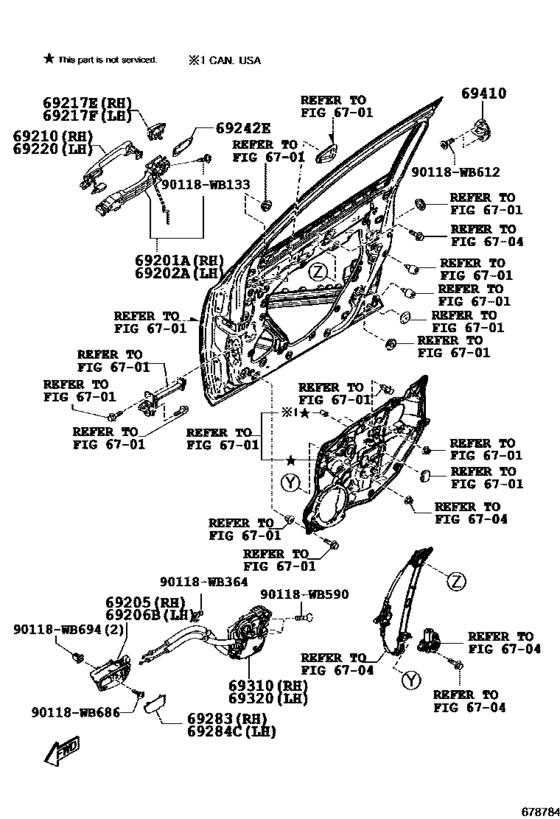

Front Door Lock & Handle ([06.2015 - ] (1506- )) Diagram Toyota SCION IA/YARIS R
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- DD1D
- grade
- HI
- body
- SED
- ENGINE
- P5
- TRANSMISSION
- ATM
- CATEGORY
- C
- Model
- YARIS R
- From
- 08.2016
- Engine
- 1500
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- YARIS R
- Destination
- MXC
- Vsc
- LVSC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69201A
|
69201A
69201-WB002
Frame Sub-Assy, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D |
69201-WB002 |
— | ||
|
69202A
|
69202A
69202-WB002
Frame Sub-Assy, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D |
69202-WB002 |
— | ||
|
69205
|
69205
69205-WB001
Handle Sub-Assy, Front Door Inside, Rh
[08.2015 - 12.2015] DD1D..B |
69205-WB001 |
— | ||
| replacement | |||||
|
69205
|
69205
69205-WB003
Handle Sub-Assy, Front Door Inside, Rh
[08.2015 - 12.2015] DD1D..B |
69205-WB003 |
— | ||
|
69205
|
69205
69205-WB003
Handle Sub-Assy, Front Door Inside, Rh
[12.2015 -] DD1D..HI; DD1B..USA;DB7P..B,F,G,K |
69205-WB003 |
— | ||
|
69206B
|
69206B
69206-WB001
Handle Sub-Assy, Front Door Inside, Lh
[08.2015 - 12.2015] DD1D..B |
69206-WB001 |
— | ||
|
69206B
|
69206B
69206-WB003
Handle Sub-Assy, Front Door Inside, Lh
[12.2015 -] DD1D..HI; DD1B..USA;DB7P..B,F,G,K |
69206-WB003 |
— | ||
|
69210
|
69210
69210-WB001
Handle Assy, Front Door, Outside Rh
[08.2015 -] DD1C,1D DYNAMIC BLUE MC,44J |
69210-WB001 |
— | ||
|
69210
|
69210
69210-WB002
Handle Assy, Front Door, Outside Rh
[08.2015 -] DD1C,1D DEEP CRYSTAL BLUE MC,42M |
69210-WB002 |
— | ||
|
69210
|
69210
69210-WB003
Handle Assy, Front Door, Outside Rh
[08.2015 -] DD1C,1D METEOR GRAY MC,42A |
69210-WB003 |
— | ||
|
69210
|
69210
69210-WB004
Handle Assy, Front Door, Outside Rh
[08.2015 -] DD1C,1D ARCTIC WHITE CLE,A4D |
69210-WB004 |
— | ||
|
69210
|
69210
69210-WB005
Handle Assy, Front Door, Outside Rh
[08.2015 - 07.2016] DD1C,1D ALUMINUM METALLIC,38P |
69210-WB005 |
— | ||
|
69210
|
69210
69210-WB006
Handle Assy, Front Door, Outside Rh
[08.2015 -] DD1C,1D JET BLACK MC,41W |
69210-WB006 |
— | ||
|
69210
|
69210
69210-WB007
Handle Assy, Front Door, Outside Rh
[08.2015 -] DD1C,1D ZEAL RED MC,41G |
69210-WB007 |
— | ||
|
69210
|
69210
69210-WB029
Handle Assy, Front Door, Outside Rh
[09.2016 -] DB7P,DD1B SONIC SILVER M,45P; DD1C,1D SONIC SILVER M,45P |
69210-WB029 |
— | ||
|
69217E
|
69217E
69227-WB001
Cover, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D DYNAMIC BLUE MC,44J |
69227-WB001 |
— | ||
|
69217E
|
69217E
69227-WB002
Cover, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D DEEP CRYSTAL BLUE MC,42M |
69227-WB002 |
— | ||
|
69217E
|
69217E
69227-WB003
Cover, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D METEOR GRAY MC,42A |
69227-WB003 |
— | ||
|
69217E
|
69217E
69227-WB004
Cover, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D ARCTIC WHITE CLE,A4D |
69227-WB004 |
— | ||
|
69217E
|
69217E
69227-WB005
Cover, Front Door Outside Handle, Rh
[08.2015 - 07.2016] DD1C,1D ALUMINUM METALLIC,38P |
69227-WB005 |
— | ||
|
69217E
|
69217E
69227-WB006
Cover, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D JET BLACK MC,41W |
69227-WB006 |
— | ||
|
69217E
|
69217E
69227-WB007
Cover, Front Door Outside Handle, Rh
[08.2015 -] DD1C,1D ZEAL RED MC,41G |
69227-WB007 |
— | ||
|
69217E
|
69217E
69227-WB022
Cover, Front Door Outside Handle, Rh
[09.2016 -] DB7P,DD1B SONIC SILVER M,45P; DD1C,1D SONIC SILVER M,45P |
69227-WB022 |
— | ||
|
69217F
|
69217F
69227-WB008
Cover, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D DYNAMIC BLUE MC,44J |
69227-WB008 |
— | ||
|
69217F
|
69217F
69227-WB009
Cover, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D DEEP CRYSTAL BLUE MC,42M |
69227-WB009 |
— | ||
|
69217F
|
69217F
69227-WB010
Cover, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D METEOR GRAY MC,42A |
69227-WB010 |
— | ||
|
69217F
|
69217F
69227-WB011
Cover, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D ARCTIC WHITE CLE,A4D |
69227-WB011 |
— | ||
|
69217F
|
69217F
69227-WB012
Cover, Front Door Outside Handle, Lh
[08.2015 - 07.2016] DD1C,1D ALUMINUM METALLIC,38P |
69227-WB012 |
— | ||
|
69217F
|
69217F
69227-WB013
Cover, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D JET BLACK MC,41W |
69227-WB013 |
— | ||
|
69217F
|
69217F
69227-WB014
Cover, Front Door Outside Handle, Lh
[08.2015 -] DD1C,1D ZEAL RED MC,41G |
69227-WB014 |
— | ||
|
69217F
|
69217F
69227-WB023
Cover, Front Door Outside Handle, Lh
[09.2016 -] DB7P,DD1B SONIC SILVER M,45P; DD1C,1D SONIC SILVER M,45P |
69227-WB023 |
— | ||
|
69220
|
69220
69210-WB008
Handle Assy, Front Door Outside, Lh
[08.2015 -] DD1C,1D DYNAMIC BLUE MC,44J |
69210-WB008 |
— | ||
|
69220
|
69220
69210-WB009
Handle Assy, Front Door Outside, Lh
[08.2015 -] DD1C,1D DEEP CRYSTAL BLUE MC,42M |
69210-WB009 |
— | ||
|
69220
|
69220
69210-WB010
Handle Assy, Front Door Outside, Lh
[08.2015 -] DD1C,1D METEOR GRAY MC,42A |
69210-WB010 |
— | ||
|
69220
|
69220
69210-WB011
Handle Assy, Front Door Outside, Lh
[08.2015 -] DD1C,1D ARCTIC WHITE CLE,A4D |
69210-WB011 |
— | ||
|
69220
|
69220
69210-WB012
Handle Assy, Front Door Outside, Lh
[08.2015 - 07.2016] DD1C,1D ALUMINUM METALLIC,38P |
69210-WB012 |
— | ||
|
69220
|
69220
69210-WB013
Handle Assy, Front Door Outside, Lh
[08.2015 -] DD1C,1D JET BLACK MC,41W |
69210-WB013 |
— | ||
|
69220
|
69220
69210-WB014
Handle Assy, Front Door Outside, Lh
[08.2015 -] DD1C,1D ZEAL RED MC,41G |
69210-WB014 |
— | ||
|
69220
|
69220
69210-WB030
Handle Assy, Front Door Outside, Lh
[09.2016 -] DB7P,DD1B SONIC SILVER M,45P; DD1C,1D SONIC SILVER M,45P |
69210-WB030 |
— | ||
|
69242E
|
69242E
69241-WB001
Pad, Front Door Outside Handle, Rear
[08.2015 -] DD1C,1D RH |
69241-WB001 |
— | ||
|
69242E
|
69242E
69241-WB002
Pad, Front Door Outside Handle, Rear
[08.2015 -] DD1C,1D LH |
69241-WB002 |
— | ||
|
69283
|
69283
69283-WB001
Plug, Front Door Inside Handle Bezel, Rh
[08.2015 - 12.2015] DD1C,1D |
69283-WB001 |
— | ||
| replacement | |||||
|
69283
|
69283
69283-WB002
Plug, Front Door Inside Handle Bezel, Rh
[08.2015 - 12.2015] DD1C,1D |
69283-WB002 |
— | ||
|
69283
|
69283
69283-WB002
Plug, Front Door Inside Handle Bezel, Rh
[12.2015 -] DB7P,DD1B; DD1C,1D |
69283-WB002 |
— | ||
|
69284C
|
69284C
69284-WB001
Plug, Front Door Inside Handle Bezel, Lh
[08.2015 - 12.2015] DD1C,1D |
69284-WB001 |
— | ||
| replacement | |||||
|
69284C
|
69284C
69284-WB002
Plug, Front Door Inside Handle Bezel, Lh
[08.2015 - 12.2015] DD1C,1D |
69284-WB002 |
— | ||
|
69284C
|
69284C
69284-WB002
Plug, Front Door Inside Handle Bezel, Lh
[12.2015 -] DB7P,DD1B; DD1C,1D |
69284-WB002 |
— | ||
|
69310
|
69310
69030-WB001
Lock Assy, Front Door, Rh
[08.2015 -] DD1C,1D |
69030-WB001 |
— | ||
|
69320
|
69320
69040-WB001
Lock Assy, Front Door, Lh
[08.2015 -] DD1C,1D |
69040-WB001 |
— | ||
|
69410
|
69410
69410-WB001
Plate Assy, Front Door Lock Striker
[08.2015 -] DD1C,1D |
69410-WB001 |
— | ||
